G 55 C VIP
USER MANUAL

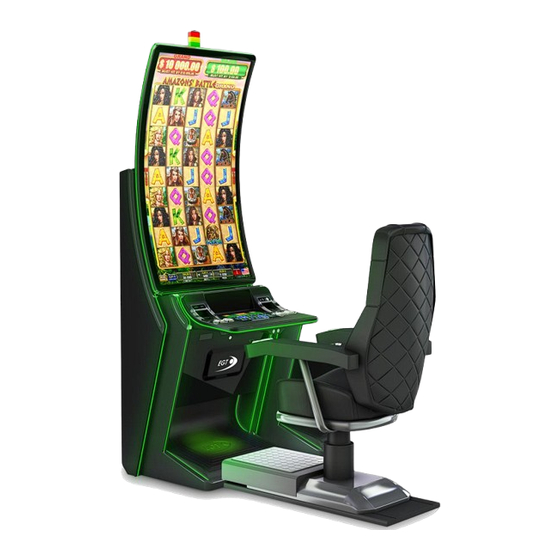

G 55 C VIP Gaming Machine
(rev. 3.0)
©2022, Euro Games Technology Ltd.
www.egt.com
Page 1
www.egt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 55 C VIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT G 55 C VIP

Summary of Contents for EGT G 55 C VIP

  • Page 1 G 55 C VIP USER MANUAL G 55 C VIP Gaming Machine (rev. 3.0) ©2022, Euro Games Technology Ltd. www.egt.com Page 1 www.egt.com...

  • Page 2: Revision History

    G 55 C VIP Revision History Version Date Changes rev. 1.0 March 2022 An initial document version A new document version with the following changes: • A new opportunity that the gaming machine can work with the Exciter IV gaming platform is added as well as the platform description.

  • Page 3: Signs Used

    G 55 C VIP Signs Used Warning! Warns about specific conditions or situations, which require due attention. Note: Gives important or additional information. Page 3 www.egt.com...

  • Page 4: Table Of Contents

    G 55 C VIP Contents Revision History ............................2 Signs Used ..............................3 Introduction ..............................6 General Description ..........................6 Technical Specifications ........................... 7 Dimensions .............................. 7 Operating Conditions ..........................9 Transportation ............................9 Safety and Precaution Measures ......................10 Installation and Gaming Machine Service ....................
  • Page 5 G 55 C VIP Audio System ............................37 Door Switches ............................37 Cabinet Identification ..........................37 Gaming Machine Troubleshooting ......................38 Troubleshooting ............................. 38 Fuse Replacement..........................38 Error Messages ............................38 Applications ..............................39 Bill Validator Models and Technical Parameters ................... 39 Ticket Printer Models and Technical Parameters ..................

  • Page 6: Introduction

    The machine is made of high-quality materials and equipped with all necessary periphery devices and modules. • The main overview of the G 55 C VIP gaming machine with the optional devices and multimedia chair, is shown in the picture below: Page 6...

  • Page 7: Technical Specifications

    G 55 C VIP Technical Specifications Name Value Manufacturer EURO GAMES TECHNOLOGY Ltd., Bulgaria Type EGT-VS26 Power Supply Voltage 100 - 240V AC Current 4.8 - 2.0A Consumption 435W Frequency 50 - 60Hz Fuses F1, F2 - T 10A / 250V~ - for the gaming machine;...
  • Page 8 G 55 C VIP Dimensions Values Gross weight without Chair 231 kg Net weight without Chair 219 kg Height 2 384 mm Width 767 mm Depth with Chair 1 767 mm Depth without Chair 781 mm Multimedia Chair (option) Dimensions...

  • Page 9: Operating Conditions

    G 55 C VIP Operating Conditions This gaming machine is designed and manufactured to keep its operability at the following conditions: Parameter Value Ambient temperature from +10C° to +30C° Relative humidity from 20% to 80% Operation position vertical Power supply voltage 100 - 240 V~ (from -10% to +10%), 50 ÷...

  • Page 10: Safety And Precaution Measures

    G 55 C VIP Safety and Precaution Measures • The gaming machine is a device with protection class I in terms of protection against electric shock according to the requirements specified in EN 60335-1. • Connect the machine only to a two-pole power socket with the protective grounding of the electric wiring.

  • Page 11: Installation And Gaming Machine Service

    Turn the main power switch on and wait for the appearance of a picture on the screen; • Teach the software in the iButton Reader to recognize EGT electronic keys (see EGT Electronic Keys_ iButton Reader Teaching_Service_Manual_EN_0x.pdf or contact the EGT Service);...

  • Page 12: Top Lamp Mounting

    G 55 C VIP Top Lamp Mounting The slot machine is transported to the customer with an unmounted top lamp. To mount the Top lamp, follow the instructions below: 1. Disassemble the bearing plate by unscrewing 4 pcs. M4x16 screw.

  • Page 13: Multimedia Chair Assembly And Disassembly

    G 55 C VIP 4. Connect the signal lamp to the corresponding electrical connector mounted on the Connectors’ plate inside the slot machine. 5. Mount a bearing plate - by 4 pcs. M4x16 screw. Multimedia Chair Assembly and Disassembly Multimedia Chair Assembly 1.
  • Page 14 G 55 C VIP 3. Plug in the connectors between the base and the top of the chair: remove the cover, plug in the connectors, switch on the earth wire connectors and then install the chair protective cover. 4. Mount the multimedia chair to the cabinet body: •...
  • Page 15 G 55 C VIP Page 15 www.egt.com...
  • Page 16 G 55 C VIP • Push the base of the multimedia chair is pushed under the cabinet footstep until it stops - to a secure "lock" of the locking mechanism (accompanied by a characteristic sound). Multimedia Chair Disassembly • To release the locking mechanism of the multimedia chair, pull up the handle inside the cabinet and rotate it to the left.

  • Page 17: Doors Opening And Closing

    G 55 C VIP Doors Opening and Closing Main Door 1 Opening and Closing Main Door 1 Opening 1. Insert the corresponding Main Door Key in the left lock and turn it clockwise. The lock is located under the keyboard.
  • Page 18 G 55 C VIP Main Door 1 Closing 1. Grab the Main Door 1 opened at the keyboard part and slide forward until full closing. Main Door 2 Opening and Closing Main Door 2 Opening 1. Open the Main Door 1.
  • Page 19 G 55 C VIP Main Door 2 Closing 1. Pull the lever to open Main Door 2 to unlock the locking mechanism. Warning! Make sure that the PULL lever is returned to the starting position! 2. Grasp Main Door 2 as shown in the figure below and push down until the door is completely closed.
  • Page 20 G 55 C VIP Safety Sheet Opening and Closing To gain access to the power supply units and power supply distributors, it is necessary to open the Safety Sheet. Safety Sheet Opening 1. Open the Bill Validator Door. 2. Open the Main Door 1.

  • Page 21: Control Keys

    G 55 C VIP Control Keys • mechanical By using either and/or electronic keys you can access the credit forming screen, the service functions, the accounting of the machine, or the games. • recognizes The system 4 types of keys:...
  • Page 22 G 55 C VIP Forming a Credit via an Attendant Key • This procedure is for the service staff (attendant) in the casino, who uses a special key to insert credit. Note: In countries where the legislation prohibits the addition of credits by the attendant, using his key, this option is disabled.

  • Page 23: Cashing Out The Player's Credit

    G 55 C VIP Note: Make sure that the banknote used has a nominal and currency corresponding to those written on the sticker at the bill validator entrance. The type of banknotes that can be accepted is defined during the initial setup of the machine.

  • Page 24: Machine Reservation And Release

    G 55 C VIP 2. Press the SERVICE button, placed on the right, over the ticket printer exit, to call the attendant. • attendant gives to the player the amount of credit in money, written on the splash, by hand (cash).

  • Page 25: Top Lamp (Signal Lights)

    G 55 C VIP Top Lamp (Signal Lights) • The Top Lamp is mounted on the top of the machine. • It consists of 3 signal lamps (lights) that are coloured in three colours - red, yellow, and green. Note: For some markets the colors/number and their functions may differ from those described.

  • Page 26: Component Maintenance

    G 55 C VIP Component Maintenance Component Description Recommended Cleaning Maintenance Period Exciter Accumulation of dust on Monthly Clean the dust from the fan and the III/Exciter IV the fan and the processor processor radiator. Use a vacuum Main Board radiator impairs its cooling cleaner.
  • Page 27 G 55 C VIP Component Description Recommended Cleaning Maintenance Period Keyboard The system controls the Problem Solving: Panel condition of the LED The defective LED module is replaced by button (if the test is a new one. Replace the LED module only...

  • Page 28: Hardware Components

    G 55 C VIP Hardware Components General Description of the Components View of the Cabinet with All Doors Closed ’ Page 28 www.egt.com...
  • Page 29 G 55 C VIP Inside View of the Main Door 1 Opened with Cover Inside View of the Door 1 Opened without Cover Page 29 www.egt.com...
  • Page 30 G 55 C VIP Inside View at the Main Door 2 Opened Inside View at the Bill Validator Door Opened Page 30 www.egt.com...

  • Page 31: Power Distributor Units (Pdu) And Power Supply Units (Psu)

    G 55 C VIP Inside View at the Bill Validator Door and Safety Sheet Opened • All the electronic components of the machine are located in the body, behind/on the main door, and behind the bill validator door and safety sheet.

  • Page 32: Specialized Gaming Platform

    The specialized gaming platform is the managing computer (platform) in the gaming machine. • The G 55 C VIP gaming machine can work with one of the two developed by the Euro Games Technology gaming platforms Exciter III or Exciter IV.

  • Page 33: Monitors

    G 55 C VIP • The BIOS memory and NVRAM backup battery are located on the Exciter III gaming board. • There are 4 DIP switches and one of them (switch 1) is used for a machine memory reset. Exciter IV Specialized Gaming Platform...

  • Page 34: Bill Validator (Option)

    G 55 C VIP Multimedia Chair Components Multimedia comfortable EGT VIP Chair includes: • armrests in PVC, with bordered armrest pads; • gas lift with self-return-mechanism (GSF 2060-5040C), height adjustability stroke 40mm, 90° right /90° left rotating with overwind protection;...

  • Page 35: Keyboard Panel

    G 55 C VIP Keyboard Panel Type • The keyboard panel consists of two parts: • А Dynamic Touch Keyboard controlled by the Exciter III/Exciter IV platform. • Electro-mechanical buttons controlled by the USB Keyboard Controller. • The picture below displays an example of the gaming machine keyboard panel. The location, names, and functionalities of the buttons depend on the type of multigame installed on the gaming machine.

  • Page 36: Meter Module

    G 55 C VIP Meter Module Type General Counters Module Purpose of Use • counts the impulses, transferred by the control platform to the appropriate mechanical meters; • transfers information on the condition of mechanical meters; • maintains communication with Exciter III/Exciter IV Motherboard;...

  • Page 37: Ibuttons Reader And Socket

    G 55 C VIP i-Buttons Reader and a Socket Type • i-Button Reader; • DS9092 Socket. Purpose of Use Allows access of the authorized staff to settings, service functions, and reports of the gaming machine. Audio System Type Audio system consists of speakers situated on Main Door and a Bass Sound Box.

  • Page 38: Gaming Machine Troubleshooting

    The errors that occur are displayed on the machine screen in a form of a message. The error is cleared when its cause is solved. • Connect to the EGT service desk and report the information in the error message if you cannot solve the problem. Page 38...

  • Page 39: Applications

    G 55 C VIP Applications Bill Validator Models and Technical Parameters Bill Validator Models MEI SCN8347(E) Cashcode Type MFL JCM UBA-10-SS JCM iPro JCM iVizion NV 200 NV 200 Spectral iCT NBA JCM UBA PRO 500SS Note: The NV 200 and NV 200 Spectral bill validators are used only in gaming machines with the Exciter IV platform.
  • Page 40 G 55 C VIP Technical Parameters MEI SCN 8347(E) Electrical Parameters Value Power Supply Voltage 12 ÷ 28 V DC ± 5% Standby 0.45 A Current consumption Operating mode 1.25÷3.0 A Communication Interface Environment Parameters Value Operation Temperature 0° C ÷ +60° C Operating Relative Humidity 5% ÷...
  • Page 41 G 55 C VIP JCM UBA-10-SS / JCM iPro Electrical Parameters Value Power Supply Voltage 12V DC ± 5% Standby 0.3 A Current consumption Operating mode 1.6 A Communication Interface RS232 Environment Parameters Value Operation Temperature +5°C ÷ +50°C Operating Relative Humidity 30% ÷...
  • Page 42 G 55 C VIP NV 200 Electrical Parameters Value Power Supply Voltage 12V DC ± 10% Standby 0.4 A Current consumption Operating mode 3A/ max 5 A Communication Interface RS232. USB 2.0 Environment Parameters Value Operation Temperature 0° C ÷ +50° C Operating Relative Humidity 30% ÷...
  • Page 43 G 55 C VIP iCT NBA Electrical Parameters Value Power Supply Voltage 12V DC ± 10% to 24 V DC ± 10% Standby 0.35 A Current consumption Operating mode 1.25A Maximum 3.5 A Communication Interface RS232, USB 2.0 Environment Parameters...
  • Page 44 G 55 C VIP Components Bill Validator Components Model MEI SCN8347(E) Cashcode MFL JCM UBA-10-SS Page 44 www.egt.com...
  • Page 45 G 55 C VIP Bill Validator Components Model JCM iPro JCM iVision A Acceptor Unit Front Panel Bezel JPL Connector Front Upper Guide Access Lever (Acceptor M Transport Unit Release Lever Unit) C Bezel (Option) - use from JCM iPro model!
  • Page 46 G 55 C VIP Bill Validator Components Model NV 200 NV 200 Spectral Collecting Bills Collecting Bills from CashCode MFL - 1 - - 2 - - 3 - 1. Open the bill validator door. 2. Push the lever, pointed by the small arrow in picture 1 above, and pull the cassette out.
  • Page 47 G 55 C VIP 3. Unlock the cassette cover by inserting appropriate keys in the locks and turning clockwise, as shown in picture 2 above. Open the cover. 4. Take the bills, as shown in picture 3 above. 5. Lock the cassette and put it back into the housing.
  • Page 48 G 55 C VIP Removing Bills from JCM UBA-10-SS Depending on the situation encountered jammed bills must be removed as shown in the picture above. Configuring the Bill Validator Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover.
  • Page 49 G 55 C VIP CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode, and enabled denominations are performed by two groups of switches - SW1 and SW2. The function of the group of SW1 DIP switches is the following: Switch SW 1.1...
  • Page 50 G 55 C VIP Configuring JCM UBA-10-SS JCM UBA-10-SS operates in two modes: test and normal. Defining settings, operating mode, and enabled denominations is performed by setting switches. Switch Accept of barcode vouchers disabled Accept of barcode vouchers enabled Denomination 1 disabled...

  • Page 51: Ticket Printer Models And Technical Parameters

    G 55 C VIP Ticket Printer Models and Technical Parameters Type JCM GEN 5 Ithaca Epic 950 Technical Parameters JCM GEN 5 Electrical Parameters Value Power Supply Voltage: 24 V DC ± 5% Current consumption At 24 V and 25% black max 2.7 A...
  • Page 52 G 55 C VIP Ithaca Epic 950 Electrical Parameters Value Power Supply Voltage: 24 V DC ± 10% Current consumption At 24 V and 25% black max 2.2 A Communication Interface RS 232 Environment Parameters Value Operation Temperature +5°C ÷ +45°C Storage Temperature -10°C ÷...
  • Page 53 G 55 C VIP Loading tickets in Ithaca Epic 950 ticket printer 1. Load tickets into the ticket supply tray, making sure that the black dot is positioned as shown in the picture above. 2. Insert the leading ticket into the printer mechanism’s insertion guide area. The ticket should be fed about a ½"...

  • Page 54: Modular Diagrams Of Components

    G 55 C VIP Modular Diagrams of Components Power Page 54 www.egt.com...
  • Page 55 G 55 C VIP Exciter III Page 55 www.egt.com...
  • Page 56 G 55 C VIP Exciter IV Page 56 www.egt.com...
  • Page 57 G 55 C VIP Control Page 57 www.egt.com...
  • Page 58 G 55 C VIP RGB Lights Page 58 www.egt.com...
  • Page 59 G 55 C VIP Optional and Peripherials Note: The NV 200 and NV 200 Spectral bill validators are used only in gaming machines with the Exciter IV platform. Page 59 www.egt.com...
  • Page 60 G 55 C VIP Keyboard Page 60 www.egt.com...
  • Page 61 G 55 C VIP Monitor and Touchscreen of the Dynamic Touch Keyboard Page 61 www.egt.com...
  • Page 62 G 55 C VIP 55″ EGT Curved Monitor Page 62 www.egt.com...

  • Page 63: Connectors Of The Backplane Board

    G 55 C VIP Connectors of the Backplane Board BH40S 2x20 pin male PIN No Signal Name PIN No Signal Name T_RXD4 T_TXD4 T_RXD7 T_TXD7 T_RXD5 T_TXD5 T_RXD6 T_TXD6 T_RXD2 T_TXD2 T_RXD3 T_TXD3 DIN0 DIN1 DIN2 DIN3 DIN4 DIN5 DIN6...
  • Page 64 G 55 C VIP INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name INTRUSION0 INTRUSION1 INTRUSION2 INTRUSION3 INTRUSION4 INTRUSION5 INTRUSION6 Serial Ticket Printer MOLEX 3x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name...
  • Page 65 G 55 C VIP Casino Net 1 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current R_RXD2 R_TXD2 +12V / 1.5A Casino Net 2 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current R_RXD3 R_TXD3 +12V / 1.5A...
  • Page 66 G 55 C VIP HDD POWER OUTPUT AMP 350211 PIN No Signal Name/Current PIN No Signal Name/Current +12V / 1.5A UPS POWER V1.6 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current BU+12V BU+12V UPS POWER V2.2...

  • Page 67: Contacts

    Address 6 Panorama Sofia Str., Sofia Park RichHill Business Center, Block A 1756 Sofia, BULGARIA EGT Technical Support - Head Office Phone: +359 2 890 24 68 Fax: +359 2 890 24 88 Mobile: +359 896 71 02 72 e-mail: service@egt-bg.com;...
