G 50 J2 ST
USER MANUAL

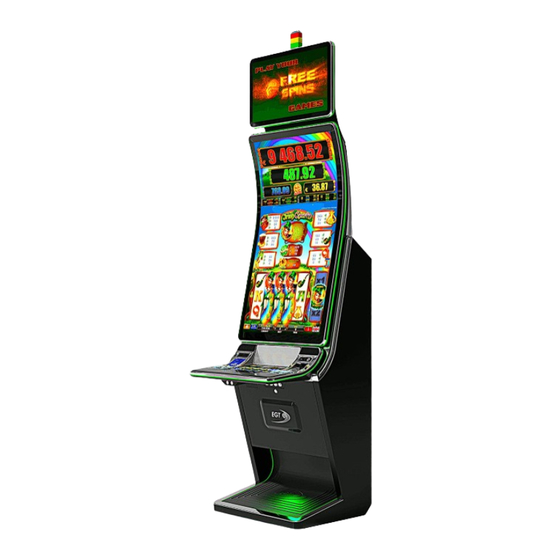

G 50 J2 ST Gaming Machine
(rev. 3.0)
©2021 - 2022, Euro Games Technology Ltd.
www.egt.com
Page 1
www.egt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 50 J2 ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT G 50 J2 ST

Summary of Contents for EGT G 50 J2 ST

  • Page 1 G 50 J2 ST USER MANUAL G 50 J2 ST Gaming Machine (rev. 3.0) ©2021 - 2022, Euro Games Technology Ltd. www.egt.com Page 1 www.egt.com...

  • Page 2: Revision History

    G 50 J2 ST Revision History Version Date Changes rev. 1.0 April 2021 An initial document version A new document version with the following changes: • A new opportunity that the gaming machine can work with an Exciter IV gaming platform is added.

  • Page 3: Signs Used

    G 50 J2 ST Signs Used Warning! Warns about specific conditions or situations, which require due attention. Note: Gives important or additional information. Page 3 www.egt.com...

  • Page 4: Table Of Contents

    G 50 J2 ST Contents Revision History ............................2 Signs Used ..............................3 Introduction ..............................6 General Description ........................... 6 Technical Specifications ..........................7 Dimensions ..............................7 Operating Conditions ..........................8 Transportation ............................8 Safety and Precaution Measures ....................... 9 Installation and Gaming machine Service ....................
  • Page 5 G 50 J2 ST Cabinet Identification ..........................31 Gaming Machine Troubleshooting ......................32 Troubleshooting ............................32 Fuse Replacement............................ 32 Error Messages ............................32 Applications ..............................33 Bill Validator Models and Technical Parameters ..................33 Ticket Printers Models and Technical Parameters .................. 45 Modular Diagrams of Components ......................

  • Page 6: Introduction

    • The machine is made of high-quality materials and equipped with all necessary periphery devices and modules. • The main overview of the G 50 J2 ST gaming machine is shown in the picture below: Page 6 www.egt.com...

  • Page 7: Technical Specifications

    G 50 J2 ST Technical Specifications Name Value Manufacturer Euro Games Technology Ltd., Bulgaria Type EGT-VS33 Power Supply Voltage 100 - 240 V AC Current 4.5 - 1.9 A Consumption 410 W Frequency 50 - 60 Hz Fuses F1, F2 - T 10A / 250V~ - for the gaming machine;...

  • Page 8: Operating Conditions

    G 50 J2 ST Dimensions Values Gross weight without topper 215 kg Net weight without topper 203 kg Gross weight of topper 25 kg Net weight of topper 22 kg Height with Topper 2 637 mm Height without Topper 2 205,4...

  • Page 9: Safety And Precaution Measures

    G 50 J2 ST Transport box dimensions: Gaming machine 900 х 900 х 2 300 mm Topper (option) 750 x 740 x 275 mm Warning! After transporting or moving of the machine from a colder to a warmer premise, please wait at least two hours before switching it on in order to avoid humidity condensation.

  • Page 10: Installation And Gaming Machine Service

    Turn the main power switch on and wait for the appearance of a picture on the screen; • Teach the software in the iButton Reader to recognize EGT electronic keys (see EGT Electronic Keys_ iButton Reader Teaching_Service_Manual_EN_0x.pdf or contact the EGT Service);...

  • Page 11: Doors Opening And Closing

    G 50 J2 ST Doors Opening and Closing Access to the main electronic components of the gaming machine located in its body is done by opening Main Door 1, Main Door 2 and Bill Validator Door. The access is restricted by a locking system with a secret lock, which is controlled even when the power of the gaming machine is turned off.
  • Page 12 G 50 J2 ST Main Door 1 Closing 1. Grab the Main Door 1 opened at the keyboard part and slide forward until full closing. Main Door 2 Opening and Closing Main door 2 Opening 1. Open the Main Door 1.
  • Page 13 G 50 J2 ST Main Door 2 Closing 1. Pull the lever to open Main Door 2 to unlock the blocking mechanism. Note: Make sure the PULL lever is returned to its original position. 2. Grasp Main Door 2 with both hands and pull down until the door is completely closed.

  • Page 14: Top Lamp Mounting

    G 50 J2 ST 2. Open the Main Door 1. 3. Pull the Main Door 1 about 10 cm toward yourself. 4. Pull the handle A shown in figure below. 5. The Safety Sheet opens Safety Sheet Closing 1. Close the Safety Sheet by lifting it upwards.
  • Page 15 G 50 J2 ST Warning! The ground wire between the plate and the gaming machine body must remain connected to the same ground pin. 5. Connect the top lamp to the corresponding electrical connector mounted on a connectors plate inside the gaming machine.

  • Page 16: Control Keys

    G 50 J2 ST Control Keys By using the electro-mechanical key, you can access the credit forming screen, the service functions, the accounting of the machine, or the games. Electronic/Mechanical Key Purpose of Use By the ATTENDANT key, you can: •...
  • Page 17 G 50 J2 ST Forming a Credit via an Attendant Key This procedure is for the service staff (attendant) in the casino, who uses a special key to insert credit. Warning! In countries where the legislation prohibits the addition of credits by the attendant, using his key, this option is disabled.

  • Page 18: Cashing Out The Player's Credit

    G 50 J2 ST Note: Make sure that the banknote used has a nominal and currency corresponding to those written on the sticker at the bill validator entrance. The type of banknotes that can be accepted is defined during the initial setup of the machine.

  • Page 19: Machine Reservation And Release

    G 50 J2 ST 2. Press the SERVICE button, placed on the right, over the ticket printer exit, to call the attendant. The attendant gives to the player the amount of credit in money, written on the splash, by hand (cash).

  • Page 20: Top Lamp (Signal Lights)

    G 50 J2 ST Top Lamp (Signal Lights) • The Top Lamp is mounted on the top of the machine. • It consists of 3 signal lamps (lights) that are colored in three colors - red, yellow, and green. Note: For some markets the colors/number and their functions may differ from those described.

  • Page 21: Component Maintenance

    G 50 J2 ST Component Maintenance Component Description Recommended Cleaning Maintenance Period Exciter III or Accumulation of dust on Monthly Clean the dust from the fan and the Exciter IV Main the fan and the processor processor radiator. Use a vacuum...
  • Page 22 G 50 J2 ST Component Description Recommended Cleaning Maintenance Period Keyboard The system controls the Problem Solving: Panel condition of the LED The defective LED module is replaced by button (if the test is a new one. Replace the LED module only...

  • Page 23: Hardware Components

    G 50 J2 ST Hardware Components General Description of Components View of the Cabinet with All Doors Closed: Page 23 www.egt.com...
  • Page 24 G 50 J2 ST Inside View of the Main Door 1 Opened with Cover Inside View of the Main Door 1 Opened without Cover Page 24 www.egt.com...
  • Page 25 G 50 J2 ST Inside View at the the Main Door 2 Opened Inside View at the Bill Validator Door Opened Inside View at the Bill Validator Door and Safety Sheet Opened All the electronic components of the machine are located in the body, on Main door 1, Main door 2 and behind Bill Validator Door, and behind Safety Sheet.

  • Page 26: Power Distributor Units (Pdu) And Power Supply Units (Psu)

    G 50 J2 ST Power Distributor Units (PDU) and Power Supply Units (PSU) Kinds Description Type Power Distributor Unit 230 V General Power Distributor Module Power Distributors Low Voltage Distributor Power Distributor Unit 12 V and 24 V 12 V Power Distributor...

  • Page 27: Specialized Gaming Platform

    G 50 J2 ST Specialized Gaming Platform • The specialized gaming platform is the managing computer in the gaming machine. • The gaming machine can work with one of the two developed by the Euro Games Technology gaming platforms - Exciter III or Exciter IV.

  • Page 28: Bill Validator (Option)

    G 50 J2 ST Bill Validator (Option) Purpose of Use • The bill validator validates and accepts bills, inserted by the player. It is programmed for the appropriate currency. • Maintains the communication with the gaming platform: Platform Exciter III...

  • Page 29: Meter Module

    G 50 J2 ST Purpose of Use • Transfers information on the condition of keyboard panel buttons and/or their LEDs; Keyboard Controller • Maintains communication with Exciter III or Exciter IV; • Tests the button LEDs for disconnections or short circuits.

  • Page 30: Decorative Lighting

    G 50 J2 ST Technical Parameters: Parameter Value Number of signal lights controlled Power +12V, 0.2А max. Decorative Lighting Type Place in the gamimng machine • the EGT logo; • white lighting at the Bill Validator entrance; • at the Ticket Printer exit.

  • Page 31: Door Switches

    G 50 J2 ST Bass Sound Box Parameter Value Impedance 4 Ω Power 50 W Door Switches Type Push-Pull. Purpose of Use The switches detect openings and closings of all doors. Cabinet Identification Type Cabinet ID Purpose of Use It uniquely determines the type of gaming machine - number of monitors, type of monitors, resolution of monitors, orientation of monitors - horizontal or vertical.

  • Page 32: Gaming Machine Troubleshooting

    The errors that occur are displayed on the machine screen in a form of a message. The error is cleared when its cause is solved. • Connect to the EGT service desk and report the information in the error message if you cannot solve the problem. Page 32...

  • Page 33: Applications

    G 50 J2 ST Applications Bill Validator Models and Technical Parameters Type MEI SCN8347(E) Cashcode Type MFL JCM UBA-10-SS JCM iPro JCM iVizion NV 200 NV 200 Spectral iCT NBA JCM UBA PRO 500SS Note: The bill validators NV 200 and NV 200 Spectral are used only in a gaming machine with the Exciter IV platform.
  • Page 34 G 50 J2 ST Technical Parameters MEI SCN 8347(E) Electrical Parameters Value Power Supply Voltage 12 ÷ 28 V DC ± 5% Standby 0.45 A Current consumption Operating mode 1.25÷3.0 A Communication Interface Environment Parameters Value Operation Temperature 0° C ÷ +60° C Operating Relative Humidity 5% ÷...
  • Page 35 G 50 J2 ST JCM UBA-10-SS / JCM iPro Electrical Parameters Value Power Supply Voltage 12V DC ± 5% Standby 0.3 A Current consumption Operating mode 1.6 A Communication Interface RS232 Environment Parameters Value Operation Temperature +5°C ÷ +50°C Operating Relative Humidity 30% ÷...
  • Page 36 G 50 J2 ST NV 200 Electrical Parameters Value Power Supply Voltage 12V DC ± 10% Standby 0.4 A Current consumption Operating mode 3A/ max 5 A Communication Interface RS232. USB 2.0 Environment Parameters Value Operation Temperature 0° C ÷ +50° C Operating Relative Humidity 30% ÷...
  • Page 37 G 50 J2 ST iCT NBA Electrical Parameters Value Power Supply Voltage 12V DC ± 10% to 24 V DC ± 10% Standby 0.35 A Current consumption Operating mode 1.25A Maximum 3.5 A Communication Interface RS232, USB 2.0 Environment Parameters...
  • Page 38 G 50 J2 ST Components Bill Validator Components Model MEI SCN8347(E) Cashcode MFL JCM UBA-10-SS Page 38 www.egt.com...
  • Page 39 G 50 J2 ST A Acceptor Unit Front Panel Bezel JPL Connector JCM iPro Front Upper Guide Access Lever JCM iVision M Transport Unit Release Lever (Acceptor Unit) Bezel (Option) - use from JCM iPro N Power ON LED (Green)
  • Page 40 G 50 J2 ST Bill Validator Components Model NV 200 NV 200 Spectral Collecting Bills Collecting bills from CashCode MFL - 1 - - 2 - - 3 - 1. Open the bill validator door. 2. Push the lever, pointed by the small arrow in picture 1 above, and pull the cassette out.
  • Page 41 G 50 J2 ST 4. Take the bills, as shown in picture 3 above. 5. Lock the cassette and put it back into the housing. Collecting bills from JCM UBA-10-SS 1. Open the bill validator door. 2. Hold the cassette handle and pull it in the direction, pointed by the arrow in picture 1 above.
  • Page 42 G 50 J2 ST Removing bills from JCM UBA-10-SS Depending on the situation encountered jammed bills must be removed as shown in the picture above. Configuring the Bill Validator Configuring CashCode MFL CashCode MFL configuration is done by setting switches, located at the rear end of the validating head, under a transparent plastic cover.
  • Page 43 G 50 J2 ST CashCode MFL operates in two basic modes: validation and service. Defining settings, operating mode, and enabled denominations are performed by two groups of switches - SW1 and SW2. The function of the group of SW1 DIP switches is the following: Switch SW 1.1...
  • Page 44 G 50 J2 ST Configuring JCM UBA-10-SS JCM UBA-10-SS operates in two modes: test and normal. Defining settings, operating mode, and enabled denominations are performed by setting switches. Switch Accept of barcode vouchers disabled Accept of barcode vouchers enabled Denomination 1 disabled...

  • Page 45: Ticket Printers Models And Technical Parameters

    G 50 J2 ST Ticket Printers Models and Technical Parameters Type JCM GEN 5 Ithaca Epic 950 Technical parameters JCM GEN 5 Electrical Parameters Value Power Supply Voltage: 24 V DC ± 5% Current consumption At 24 V and 25% black max 2.7 A...
  • Page 46 G 50 J2 ST Ithaca Epic 950 Electrical Parameters Value Power Supply Voltage: 24 V DC ± 10% Current consumption At 24 V and 25% black max 2.2 A Communication Interface RS 232 Environment Parameters Value Operation Temperature +5°C ÷ +45°C Storage Temperature -10°C ÷...
  • Page 47 G 50 J2 ST Loading tickets in Ithaca Epic 950 ticket printer 1. Load tickets into the ticket supply tray, making sure that the black dot is positioned as shown in picture 1 above. 2. Insert the leading ticket into the printer mechanism’s insertion guide area – picture 2 above. The ticket should be fed about a ½"...

  • Page 48: Modular Diagrams Of Components

    G 50 J2 ST Modular Diagrams of Components Power Page 48 www.egt.com...
  • Page 49 G 50 J2 ST Exciter III Page 49 www.egt.com...
  • Page 50 G 50 J2 ST Exciter IV Page 50 www.egt.com...
  • Page 51 G 50 J2 ST Control - KBD Page 51 www.egt.com...
  • Page 52 G 50 J2 ST RGB Lights Page 52 www.egt.com...
  • Page 53 G 50 J2 ST Optional Peripherals Note: The bill validators NV200 and NV200 Spectral are used only in gaming machine with Exciter IV platform. Page 53 www.egt.com...
  • Page 54 G 50 J2 ST Dynamic Touch Keyboard Page 54 www.egt.com...
  • Page 55 G 50 J2 ST Monitor and Touchscreen of the Dynamic Touch Keyboard Page 55 www.egt.com...
  • Page 56 G 50 J2 ST 50’’ EGT Monitor with Touchscreen Page 56 www.egt.com...

  • Page 57: Connectors Of Backplane Board

    G 50 J2 ST Connectors of Backplane Board BH40S 2x20 pin male PIN No Signal Name PIN No Signal Name T_RXD4 T_TXD4 T_RXD7 T_TXD7 T_RXD5 T_TXD5 T_RXD6 T_TXD6 T_RXD2 T_TXD2 T_RXD3 T_TXD3 DIN0 DIN1 DIN2 DIN3 DIN4 DIN5 DIN6 DIN7...
  • Page 58 G 50 J2 ST INTRUSION SWITCHES MOLEX 7x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name INTRUSION0 INTRUSION1 INTRUSION2 INTRUSION3 INTRUSION4 INTRUSION5 INTRUSION6 Serial Ticket Printer MOLEX 3x2pin Mini-fit Straight PIN No Signal Name PIN No Signal Name...
  • Page 59 G 50 J2 ST Casino Net 1 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current R_RXD2 R_TXD2 +12V / 1.5A Casino Net 2 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current R_RXD3 R_TXD3 +12V / 1.5A...
  • Page 60 G 50 J2 ST HDD POWER OUTPUT AMP 350211 PIN No Signal Name/Current PIN No Signal Name/Current +12V / 1.5A UPS POWER V1.6 MOLEX 2x2pin Mini-fit Straight PIN No Signal Name/Current PIN No Signal Name/Current BU+12V BU+12V UPS POWER V2.2...

  • Page 61: Contacts

    Address 6 Panorama Sofia Str., Sofia Park RichHill Business Center, Block A 1756 Sofia, BULGARIA EGT Technical Support - Head Office Phone: +359 2 890 24 68 Fax: +359 2 890 24 88 Mobile: +359 896 71 02 72 e-mail: service@egt-bg.com;...
