- Page 1 SERVICE MANUAL General Roulette 6 Circle GR6C Assembling (rev. 1.0) ©2023 Euro Games Technology Ltd. www.egt.com...
-
Page 2: Revision History
General Roulette 6 Circle/Assembling Revision History Version Date Changes rev. 1.0 November 2023 An initial document version The manufacturer shall reserve its right to make changes and amendments to the item and documentation without prior notification of the customer. Page 2... -
Page 3: Table Of Contents
General Roulette 6 Circle/Assembling Contents Revision History ..........................2 Contents ............................3 Signs Used ............................4 Introduction ............................5 Assembling the “Podium R6C” R6C.01.01.00.00.00.00 ............... 6 Positioning of the Roulette Central Module ..................7 Mounting of the Locking Beams ......................8 Setting up the height of the surface .................... -
Page 4: Signs Used
General Roulette 6 Circle/Assembling Signs Used Warning! Warns about specific conditions or situations, which require due attention. Note: Gives important or additional information. Page 4 www.egt.com... -
Page 5: Introduction

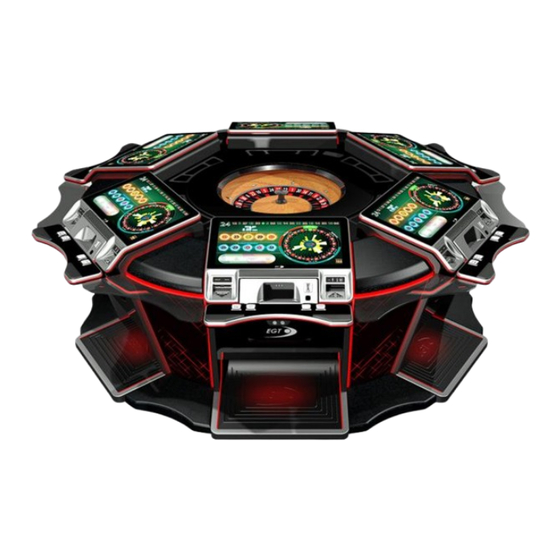

General Roulette 6 Circle/Assembling Introduction • The current service manual describes the procedure for assembling the product General Roulette 6 Circle (GR6C) – A roulette with 6 terminals in a circle, which is a grouping of the following modules: Roulette Central Module (roulette center) - General Roulette... -
Page 6: Assembling The "Podium R6C" R6C.01.01.00.00.00.00
General Roulette 6 Circle/Assembling Assembling the “Podium R6C” R6C.01.01.00.00.00.00 1. Arrange the podium bases on the floor, alternating between, “Podium Base” R6C.01.01.01.00.00.00 and “Podium Base – Heel” R6C.01.01.03.00.00.00 until a circle is formed. The three units „Podium Base” come it with pre-installed guiders for the mobile terminals. -
Page 7: Positioning Of The Roulette Central Module
General Roulette 6 Circle/Assembling Note: Don’t tighten the side bolts all the way - 2 units of DIN933 M6x25 for every footstep, as shown in the image in the red circles. They are to be tightened later for more precise positioning of the roulette center. -
Page 8: Mounting Of The Locking Beams
General Roulette 6 Circle/Assembling 2. Position the roulette center, using the inscriptions written on one of its load bearing о columns (RCM.01.09.00.00.00.00), which shows with an arrow the position of the 60 intermediate module - G RМ60-M. On this sticker is shown the position of the first static terminal - terminal Т1, as well. -
Page 9: Setting Up The Height Of The Surface
General Roulette 6 Circle/Assembling Warning! Don’t tighten the bolts, that keep the locking frame and the surface of the roulette center in place. This is done later on in the assembly, after setting the height of the surface. 2. Mount the “Horizontally welded beam unit” R6C.01.03.02.01.00.00 using 4 nuts DIN6923... -
Page 10: Ensuring Adequate Safety Grounding
General Roulette 6 Circle/Assembling Ensuring adequate safety grounding 1. Connect all grounding conductors between the podium, the central roulette module, the locking beams and the horizontal beams according to the electrical documentation of the product: El.Documentation-GR6C_V1.х.pdf о 2. The safety grounding of the 60 intermediate modules „General Roulette Module 60”... -
Page 11: Electrical Connections
General Roulette 6 Circle/Assembling 2. Use bolts DIN 6921 M10x40 for fastening the intermediate modules. Electrical connections The electrical connections are made according to the up-to-date electrical documentation: El.Documentation-GR6C_V1.х.pdf 1. Run the power cables around the roulette center and plug them into the main electrical table of the roulette (General Roulette Fuse Module), which you can find in the main intermediate module - G RМ60-M. - Page 12 General Roulette 6 Circle/Assembling 5. Connect the cables for the door controls. Warning! • The power cable that goes to the main electrical table of the roulette (General Roulette Fuse Module) requires power supply from a stand-alone current circuit. •...
-
Page 13: Levelling
General Roulette 6 Circle/Assembling Levelling 1. Lift the glass dome of the roulette wheel using the button for the manual movement of the dome. 2. Check the levelling of the roulette wheel using a standard spirit level. 3. In the event that a correction has to be made, level the roulette wheel by the frame of the center using the 4 levelling legs under it. - Page 14 General Roulette 6 Circle/Assembling 3. If any of the mobile terminals need to be moved (for example to get access to the roulette center) they can be unlocked using the handle in the intermediate module (which is to the right of the mobile terminal in question).
-
