Cypress CY62146DV30 Specification Sheet

Features
• Very high speed: 45 ns
• Wide voltage range: 2.20V–3.60V
• Pin-compatible with CY62146CV30
• Ultra-low active power
— Typical active current: 1.5 mA @ f = 1 MHz
— Typical active current: 8 mA @ f = f
• Ultra low standby power
• Easy memory expansion with CE, and OE features
• Automatic power-down when deselected
• CMOS for optimum speed/power
• Packages offered 48-ball BGA and 44-pin TSOPII
• Also available in Lead-free packages
Functional Description
The CY62146DV30 is a high-performance CMOS static RAM
organized as 256K words by 16 bits. This device features ad-
vanced circuit design to provide ultra-low active current. This
is ideal for providing More Battery Life™ (MoBL
applications such as cellular telephones. The device also has

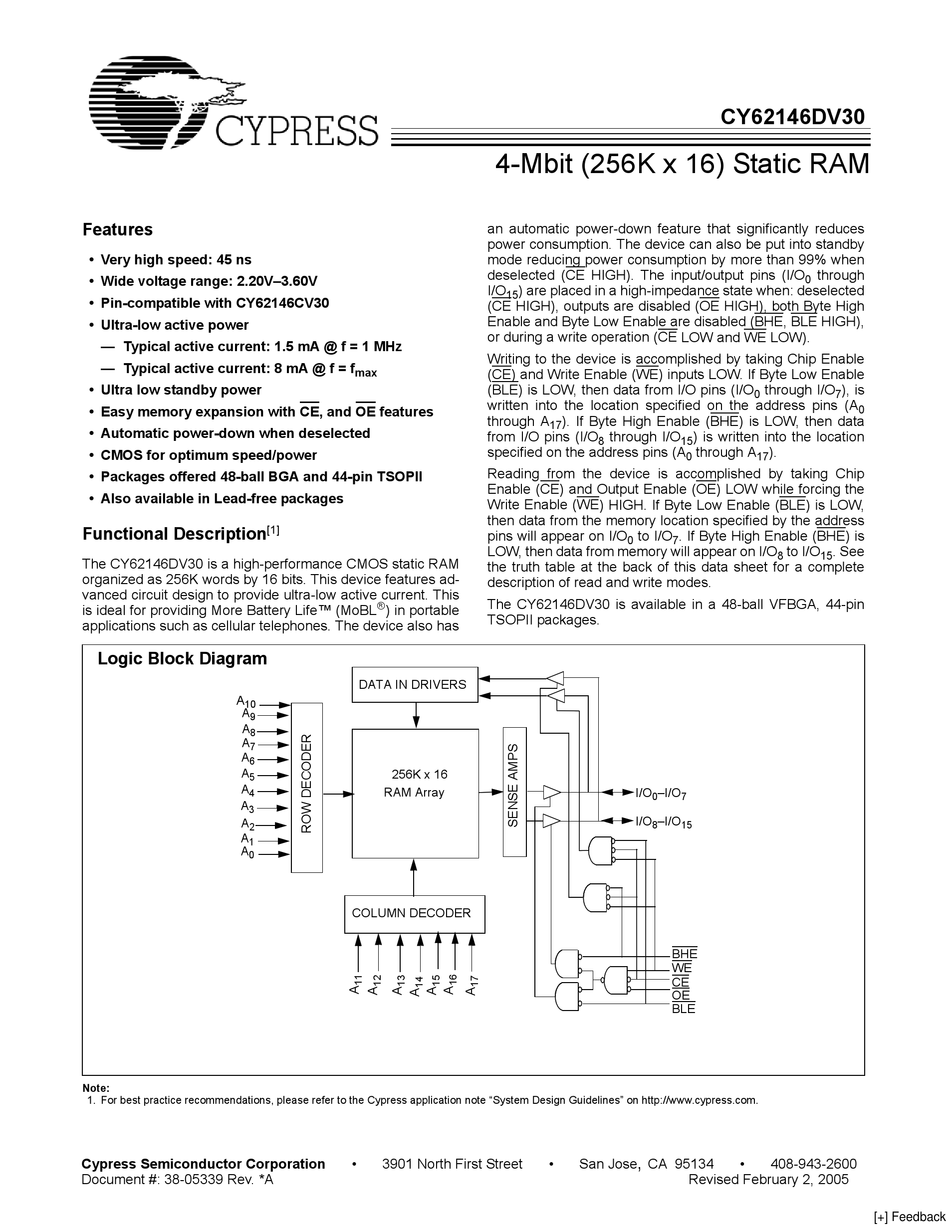

Logic Block Diagram
A
10
A
9
A
8
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
