6.6 Use and Replacement of Feeder Tube Holder
During the long-term use of the welder, the filter screen at its bottom is susceptible to
buildup of a large amount of dust, resulting in the decline of heat dissipation effect and
temperature failure; The operator shall regularly pull out the filter screen for cleaning. Refer
to the following figure for the removal and installation of the filter screen.

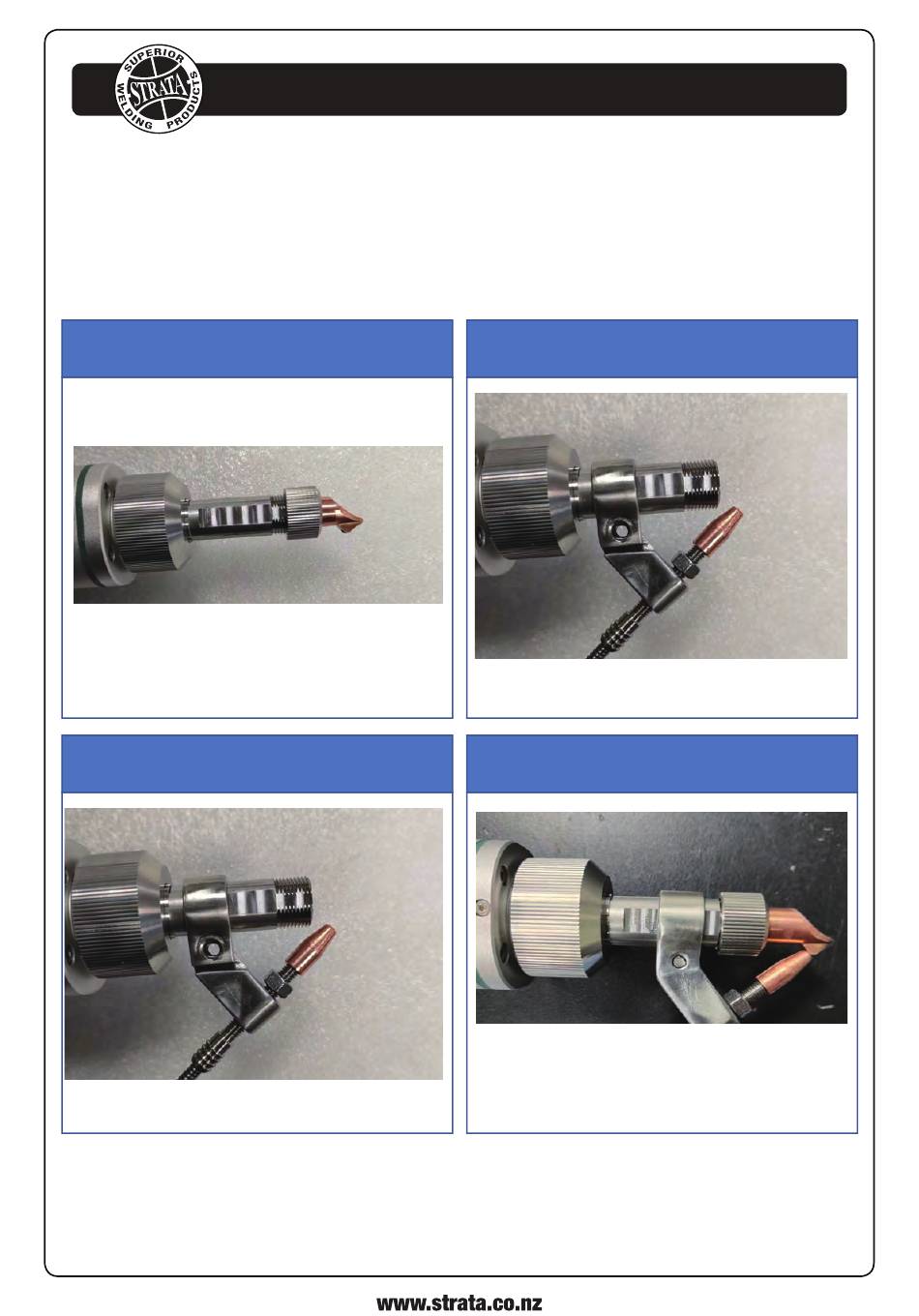

Step 1: Remove the copper nozzle tip
Step 2: Put on the feeder tube holder
Step 3:Reinstall the copper nozzle tip and adjust
Step 4: Secure the feeder tube holder
the wire feed guide nozzle to a proper position
