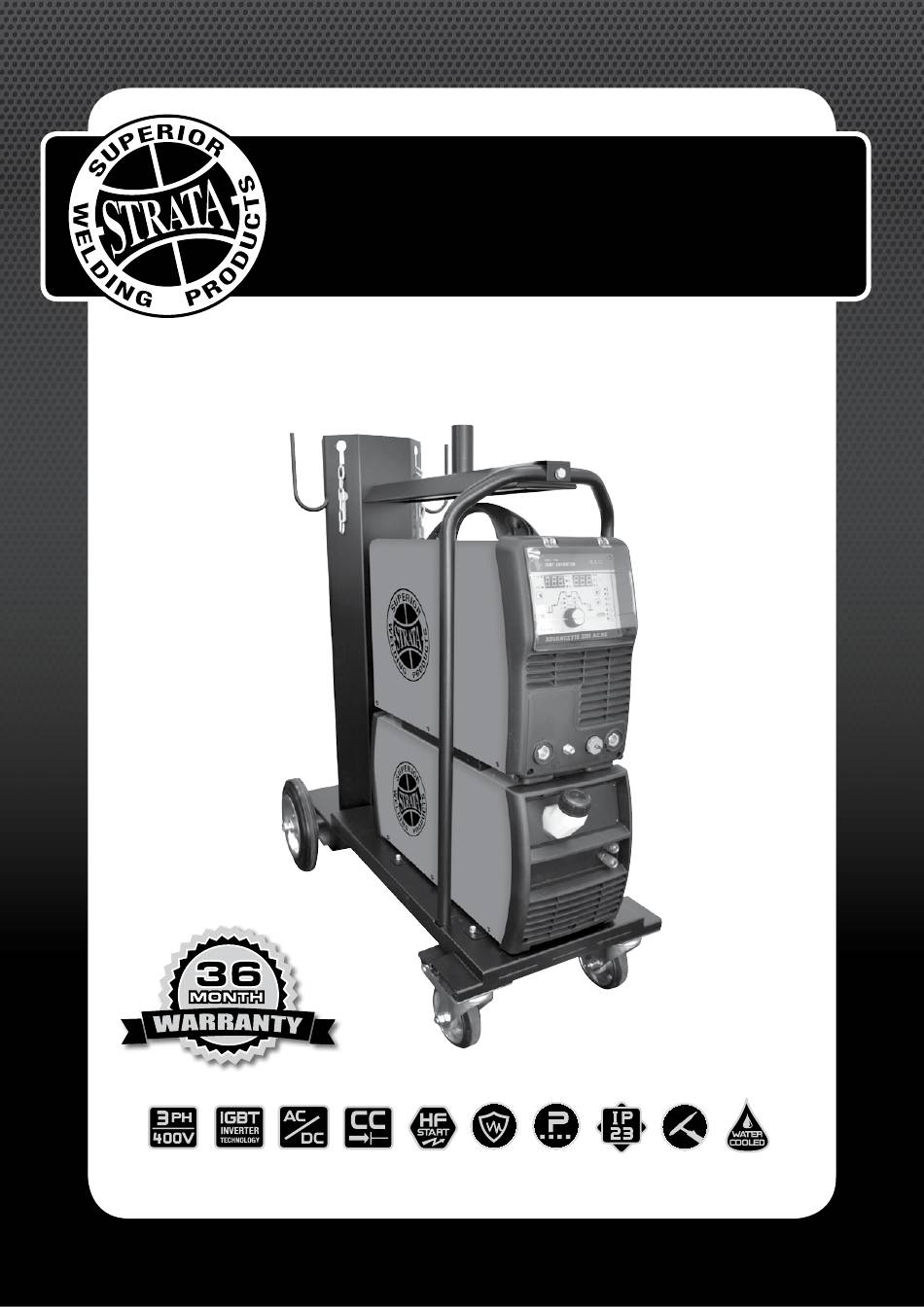

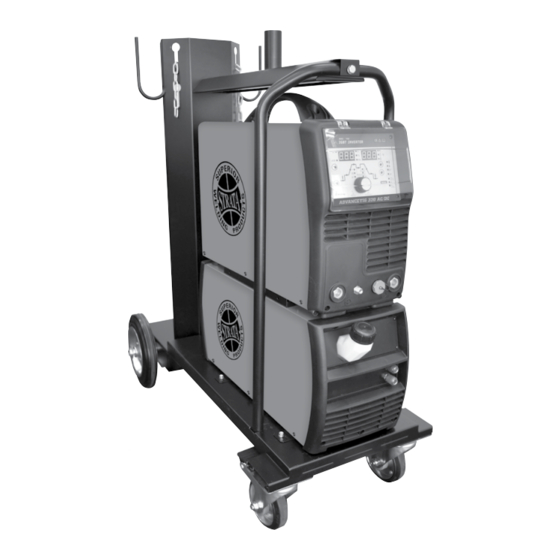

- Page 1 ADVANCETIG 320AC/DC MULTI-PROCESS TIG WELDER OPERATING INSTRUCTIONS ALTERNATING 400V 50HZ IGBT CONSTANT HF START SPIKE/ PULSE IP23 CORROSION LIFT TIG WATER COOLER /DIRECT GENERATOR THREE PHASE INVERTER CURRENT WELDING & SALT SPRAY CURRENT TECHNOLOGY SAFE OUTPUT RESISTANT www.strata.co.nz...
- Page 2 ADVANCETIG 320AC/DC Congratulations on your new Strata product! The Strata range from Euroquip uses latest technology design and engineering to produce welding products that combine market leading value and features with durability. Designed for discerning operators who seek professional results and product quality without the price tag of a full professional setup.
-
Page 3: Table Of Contents
ADVANCETIG 320AC/DC Contents Know Your Machine............5 Quick Start Guide.............10 Wireless Remote Control Configuration......11 Available Parts & Accessories...........12 Wiring Diagram..............14 Care & Maintenance............15 Electrodes................15 Effects of MMA Welding Various Metals......16 Other Knowledge & Resources.........16 Safety................17 Warranty.................23 www.strata.co.nz... - Page 4 ADVANCETIG 320AC/DC MULTI-PROCESS TIG WELDER • ADVANCETIG 200AC/DC • The ADVANCETIG Series are at the top of their class featuring state-of-the-art IGBT technology. Results speak for themselves, achieved with top level features such as adjustable arc force, AC wave and a program saving function. Designed tough to last in rugged NZ workshops and onsite tasks.
-
Page 5: Know Your Machine
ADVANCETIG 320AC/DC Know Your Machine More detailed explanations of function on following pages. Positive (+) welding power output connection socket. TIG torch remote connection socket TIG torch gas connector. Negative (-) welding power output connection socket. Control Panel LH Multifunction Display RH Multifunction Display Mains power indicator Water cooling system error indicator Error/ Overload Indicator 10. Water/ Air Cooling Selection Button 11. Air cooling mode indicator 12. Water cooling mode indicator 13. 2T/4T trigger mode selector button 14. - Page 6 ADVANCETIG 320AC/DC Further Controls Explained This will activate the water cooler power (the wa- ter cooler must also be switched on the rear panel) and the water cooling protection system. If using air LH Digital Multifunction Display (5) cooled torch, select ‘Air’ option (11). Before welding this displays the setting selected or Note the AdvanceTig 320AC/DC comes standard with being adjusted using the control knob (19). During...
- Page 7 ADVANCETIG 320AC/DC tivate the welding circuit, when the trigger is released, while it is still hot enough to react with atmospheric the welding circuit stops. 4T (15) is known as ’latch- gases, after the weld is finished. ing’ mode. The trigger is pulled once and released to Pulse Settings (38) activate the welding circuit, pulled and released again Only available when pulse mode (38) is selected.
- Page 8 ADVANCETIG 320AC/DC lowing use of a pointed tungsten tip shape for a more defined arc. TIG Arc Starting Modes AC Frequency Adjustment (42) Increasing AC frequency will focus the shape of the 27/28 TIG HF/ Lift Ignition Modes. arc, resulting in a tighter, more controlled arc causing For TIG welding process, contact of the torch tung-...
- Page 9 The basic theory for setting the base current using not provide protection against freezing. Ready to use pulse mode is that the base current should be suffi- coolant fluid can be purchased from authorised Strata cient to maintain the existing molten weld pool, while dealers. the peak current is sufficient to melt new metal in or- der to move/ expand the molten weld pool. Increased...
-
Page 10: Quick Start Guide
ADVANCETIG 320AC/DC Quick Start Guide - Welder Installation Electrical Power Supply 1.4 Set welding parameters as required following in- structions in the previous section. You are now The ADVANCETIG 320AC/DC is designed to operate ready to weld! on a 3 phase 32A 400V power supply. Operating with a lower current rated supply circuit will reduce the rated maximum output and duty cycle performance. -
Page 11: Wireless Remote Control Configuration
Re-check regulator flow pres- Wireless Remote Control Configuration: Any Strata ADVANCETIG model can be configured to To remove the connection with a wireless communicate exclusively with any Strata wireless foot remote control: pedal or remote control panel. -
Page 12: Available Parts & Accessories
ADVANCETIG 320AC/DC Available Parts & Accessories These accessories listed are available from your Strata Supplier. Refer to the Strata Catalogue, your Strata Supplier or look online at www.strata.co.nz for other accessories and consumables available. ADVANCETIG 320 AC/DC: 17386 Strata Industrial Welding Machine Trolley TT32-150 Thoriated Tungsten Electrode 3.2mm (3pk) 17390 Strata Water Cooling Unit TZ16-150 Zirconiated Tungsten Electrode 1.6mm (3pk) TZ24-150 Zirconiated Tungsten Electrode 2.4mm (3pk) 17372... - Page 13 ADVANCETIG 320AC/DC Suregrip™ Series WP18 Torch Parts TER18 Torch Body Standard TCB57Y02 Back Cap Long TCB57Y04 Back Cap Short TER1MS Momentary Kit UERH200 Large Ergo Tig Handle 10. UERKJ200 Large Knuckle Joint 12. UERJK200 Jointing Repair Kit 14. UERCO200-40 Sheath x 12.5ft Inc Leather Cover UERCO200-80 Sheath x 25ft Inc Leather Cover 16. U41V29R Power Cable x 25ft Rubber 17. U45V08OB Water Feed Hose x 25ft Rubber All products conform to EN60974-7 and are RoHS, REACH and WEEE compliant www.strata.co.nz...
-
Page 14: Wiring Diagram
ADVANCETIG 320AC/DC Wiring Diagram www.strata.co.nz... -
Page 15: Care & Maintenance
ADVANCETIG 320AC/DC Care & Maintenance out repairing of electrical appliances, otherwise considerable danger for the user may result. Use only genuine replacement parts. Do not use modified or Keep your Welding Machine non-genuine parts. in Top Condition Storing the Welder The ADVANCETIG 320AC/DC does not require any... -
Page 16: Effects Of Mma Welding Various Metals
ADVANCETIG 320AC/DC Effects of MMA Welding Various Materials High Tensile and Alloy Steels hydrogen types for high tensile steel, cellulose types The two most prominent effects of welding these for welding large diameter pipes, etc. The range of steels are the formation of a hardened zone in the... -
Page 17: Safety
ADVANCETIG 320AC/DC Safety Store and Retain this Manual General Safety Warnings Retain this manual for the safety warnings and pre- 1. Maintain labels and nameplates on the welder. These cautions, assembly, operating, inspection, mainte- carry important information. If unreadable or miss- nance and cleaning procedures. Write the product’s ing, contact Euroquip for a replacement. - Page 18 ADVANCETIG 320AC/DC Safe practices are outlined in the European Standard 9. Ensure that the unit is placed on a stable location EN60974-1 entitled: Safety in welding and allied pro- before use. cesses. WARNING! WARNING! If this unit falls while plugged in, severe injury, Only use safety equipment that has been ap- electric shock, or fire may result.
- Page 19 ADVANCETIG 320AC/DC Arc Rays can Burn Eyes and Skin 4. If working on a metal wall, ceiling, etc., prevent ignition of combustibles on the other side by DANGER! moving the combustibles to a safe location. If Arc rays from the welding process produce relocation of combustibles is not possible, desig-...
- Page 20 ADVANCETIG 320AC/DC 4. Disconnect input power before installing or ser- ground or the work surface. Do not touch hold- vicing this equipment. Lock input power, discon- ers connected to two welding machines at the nect switch open, or remove line fuses so power same time or touch other people with the holder cannot be turned on accidentally.
- Page 21 ADVANCETIG 320AC/DC 12. Use only well-maintained equipment. Repair or Fire & Explosive Risks replace damaged parts as soon as practical. WARNING! 13. In confined spaces or damp locations, do not use Sparks and spatter fly off from the welding arc. a welder with AC output unless equipped with a The flying sparks and hot metal, weld spatter, voltage reducer.
- Page 22 ADVANCETIG 320AC/DC Cylinders WARNING! Gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully. 1. Protect compressed gas cylinders from exces- sive heat, mechanical shocks, and arcs. 2. Install and secure cylinders in an upright posi-...
-
Page 23: Warranty
Registered warranty period for ADVANCETIG 320AC/DC: The decision that an issue with a product qualifies as a warranty claim is made at the sole jurisdiction of Euroquip. Commercial Use: 36 Months... - Page 24 Congratulations on your new STRATA product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and world-wide service network. To locate your nearest distributor or service agency visit www.
