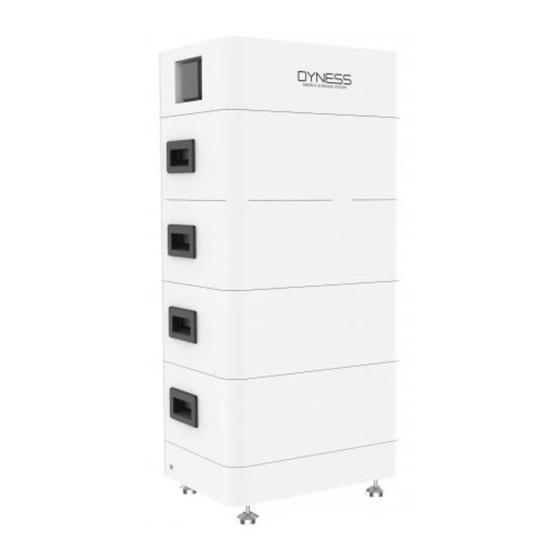

- Page 1 INSTRUCTION for connection between Tower and KOSTAL PLENTICORE plus/BI File version-20240223-V2-EN information might be subject to change without notice during product improving. V2.0...
-
Page 2: Installation Steps
Note This is a manual for connecting and commissioning the Tower battery and KOSTAL PLENTICORE plus/BI. For details, please refer to the user manual of the battery and KOSTAL PLENTICORE plus/BI. This manual is only applicable to upgraded Tower series (except Tower T21), the upgraded Tower series having new features: 1. - Page 3 RS485B RS485A White Orange Orange We recommend installing a circuit breaker between Tower and Kostal. Kostal DYNESS PLENTICORE plus/BI Tower DC BREAKER RS485 Tower and Kostal connection diagram ©Dyness reserves the copyright of this document.
- Page 4 “wake” button for 10s. Press and hold on 10secs Initial commissioning of the inverter: Follow the installation wizard on the display for setting the functions. Initial commissioning is completed. ©Dyness reserves the copyright of this document.
- Page 5 A battery activation code is required to release DC3 of the inverter for connecting the battery. Purchase a “Battery activation code” from KOSTAL Solar online shop and enter it in the inverter via webserver: Service menu > Extra options > Release new options > Enter code. ©Dyness reserves the copyright of this document.
- Page 6 Or in the inverter menu: Settings > Extra options > Additional options > Release options > Activate options > Enter code. Select battery type and parameters in the service menu and save the settings. ©Dyness reserves the copyright of this document.
- Page 7 Check the battery information on the display. If the battery status is normal, then the commission was successful. ©Dyness reserves the copyright of this document.
- Page 8 Discover Your Nature Official Website Digital version access Dyness Digital Energy Technology Co., LTD. www.dyness.com...
