QUICK INSTALLATION GUIDE

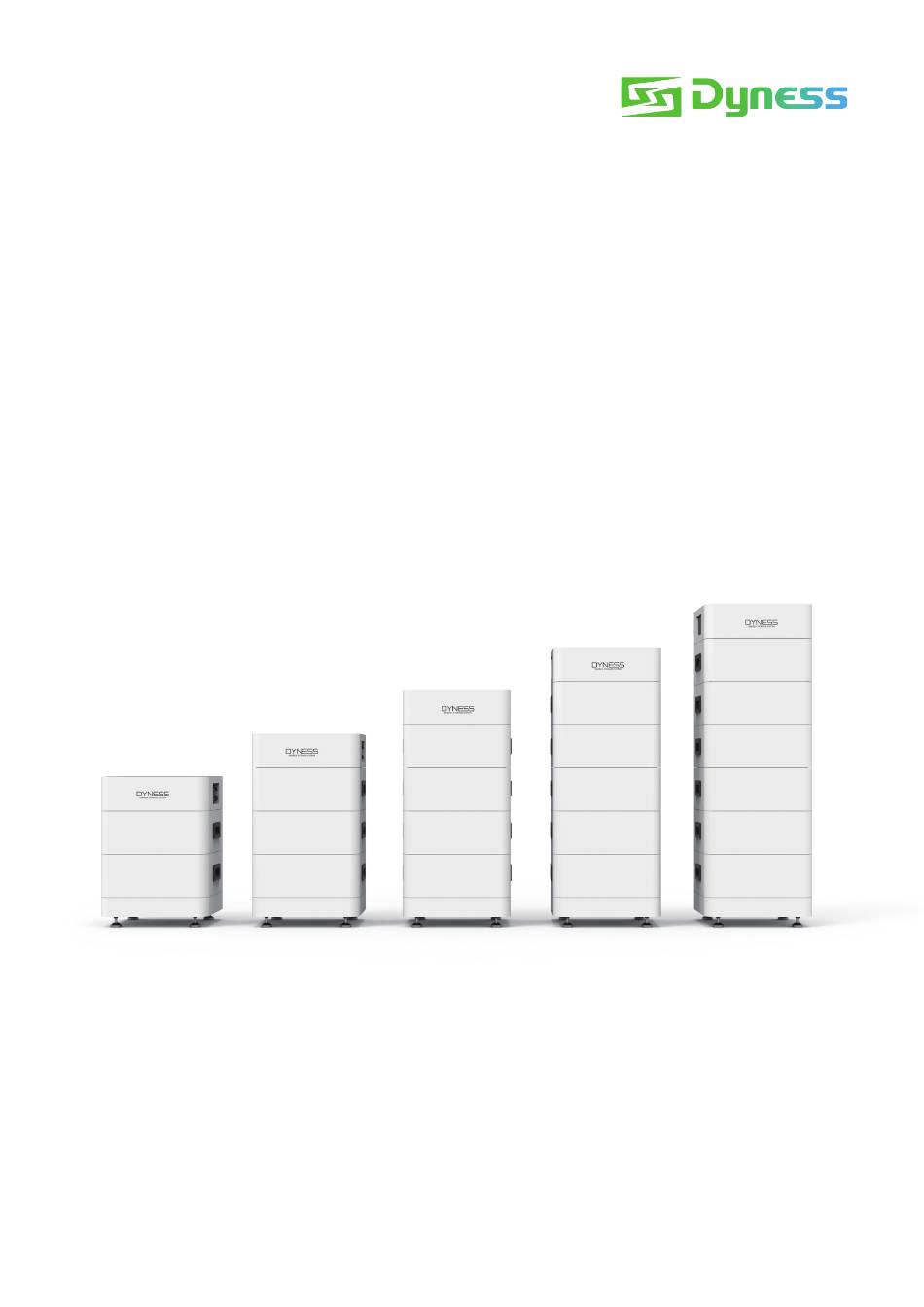

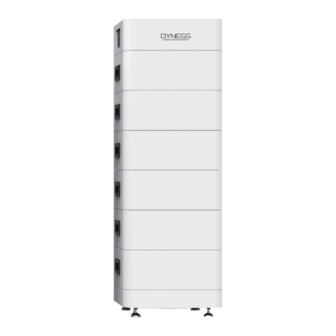

Tower series T7 T10 T14 T17 T21
File version-20240223-V2-EN information might be subject to change without notice during product improving.
V2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tower Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dyness Tower Series

  • Page 1 Dyness Battery System QUICK INSTALLATION GUIDE Tower series T7 T10 T14 T17 T21 File version-20240223-V2-EN information might be subject to change without notice during product improving. V2.0...
  • Page 2: Target Group

    Please download and view the installation manuals on this website: www.Dyness.com (Downloads). In order to ensure the normal operation of Tower, please be sure to update the firmware to the latest ...
  • Page 3 Limited to the voltage interval of the inverter, the number of HV9637 modules used by the Tower series is 2. • Limited to the conversion conditions of the BDU internal DC, the maximum number of HV9637 modules in the Tower series of products is 6. T21=21.3kWh T17=17.7kWh T14=14.2kWh T10=10.6kWh...
  • Page 4 Spacing Separate the BDU and Base Unpacking BDU+Base D1=500mm HV9637 D2=300mm Connecting the cables Stacking and locking Earth connection Note: When assembling the BDU, Communication cable ensure that the BDU circuit breaker 10±0.5mm is in “OFF” position. Negative cable √ ×...
  • Page 5 Press and hold the “WAKE” button for 10s. Parallel connection Dyness supports a maximum of 4 clusters and a dedicated Combiner box (DCB-TW) must be configured. Single cluster installation is the same as stand-alone.
  • Page 6 KOSTAL PLENTICORE PLUS KOSTAL PLENTICORE PLUS WH/OG Standard network cable, cut off one side. Tower T series Communication Cable Connection Ingeteam (INGECON SUN STORAGE1 PLAY TL M) Ingeteam (INGECON SUN STORAGE1 PLAY TL M) WH/BU Standard network cable, cut off one side. Tower T series Communication Cable Connection Ingeteam (INGECON SUN STORAGE 100TL)
  • Page 7 Goodwe ET Inverter Dyness has a standard communication network cable. It is recommended to use the GW configuration network cable and directly connect to the CAN port of the battery BDU. The 2 terminals are the Ethernet cable of the RJ45 terminal.
  • Page 8 Discover Your Nature Official Website Digital version access Dyness Digital Energy Technology Co., LTD. www.dyness.com...
