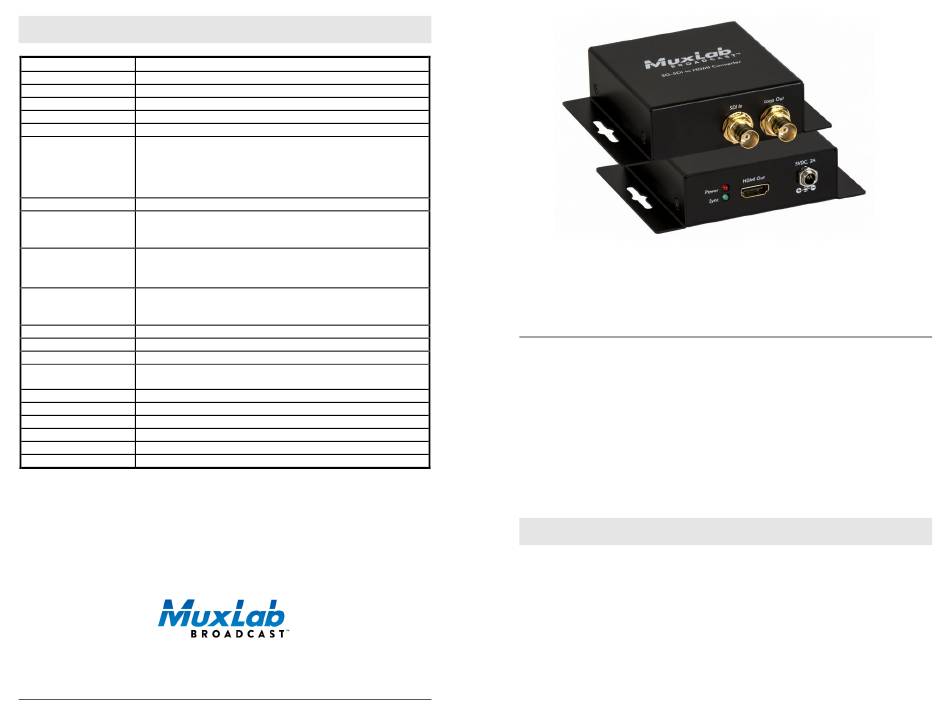

MuxLab 500717 Quick Installation Manual

Specifications

Environment HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI.
Devices Camera, plasma, projectors, monitors, TV.
Transmission Transparent to the user.
Detection Auto Detection of the 3G/HD/SD-SDI Signal.
Bandwidth 2.97Gbps & 2.975/1.001Gbps
Signals HDMI 1.3a & SDI protocol.
Supported Resolution 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
HD-SDI: 1080p/23.98/24/25/29.97/30Hz
720p/50/59.94/60Hz
1080i/50/59.94/60Hz
SD-SDI: NTSC (59.94Hz), PAL (50Hz)
Up to 8 Audio Channels.
Audio
3G-SDI: SMPTE-424M
Input Signal
HD-SDI: SMPTE 292M, 296M
SD-SDI : SMPTE 259M
Connectors Two (2) BNC Female 75 Ohms, Gold Plated.
One (1) HDMI Type A receptacle.
Note: HDMI and RG59 coaxial cables not included.
Cable Equalization 3G-SDI up to 300ft (90m)
HD-SDI up to 500ft (150m)
SD-SDI up to 1000ft (300m)
Cable One (1) RG-59 or better cable required.
Power Supply One (1) 110-240V/5VDC power supply with interchangeable blades.
Power Consumption 3.0Watt (Max)
Temperature Operating: 0° to 40°C
Humidity: Up to 90% non-condensing
Enclosure Metal
3.1" x 3.3" x 1.2" (79mm x 84mm x 27mm)
Dimensions
Weight 1.7lbs (0.78kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500717 3G-SDI to HDMI Converter
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Storage: -20° to 60°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000814-A SE-000814-A
3G-SDI to HDMI Converter
500717
Quick Installation Guide
Overview

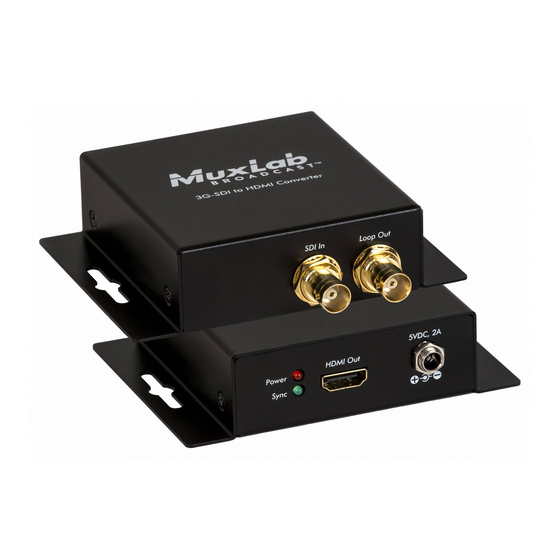

The 3G-SDI to HDMI Converter (500717) allows SDI equipment to be connected to an
HDMI Display. The 3G-SDI to HDMI Converter converts the SDI signal back to
HDMI, supporting resolutions of 480i (SD-SDI), 720p/1080i (HD-SDI) and 1080p (3G-
SDI). The 3G-SDI to HDMI Converter provides a low jitter and re-clocked outputs
allowing for unit daisy chain.
Applications
Applications include video production, broadcasting, outside broadcasting vehicle, SDI
camcorder, studio-to-studio, post production, live events, medical imaging display,
mobile video.
Installation
1. Identify the connectors on the 3G-SDI to HDMI Converter as indicated on the
product labels, see the above front and rear product views for further details.
2. Connect the source to the SDI Input of the converter.
3. Connect the display to the HDMI Output of the converter.
4. Connect the 5 VDC power supply to the Converter first, and then plug the
power supply into an AC power outlet. If power is present, the green power
LED of the Converter will be illuminated.
Note: Power the 3G-SDI to HDMI Converter only after all connections are
made.
