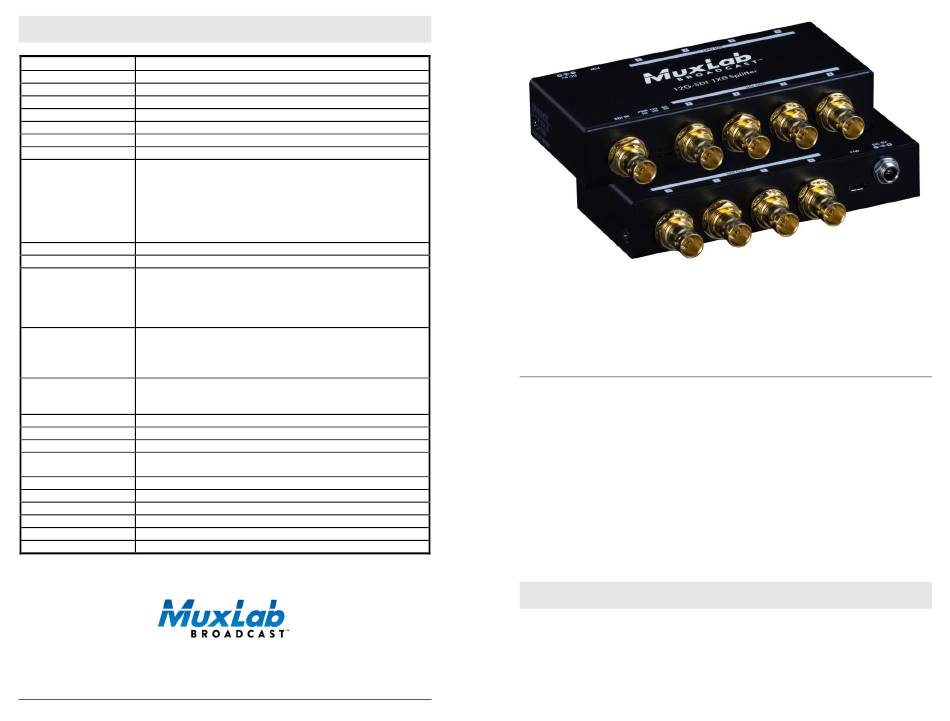

MuxLab 500728 Quick Installation Manual

Specifications
Environment 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.
Devices Camera, projectors, monitors, TV.
Transmission Transparent to the user.
Detection Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.
Bandwidth 11.88bps & 11.88/1.001Gbps
Data Rates 1.485, 2.97, 5.96 & 11.88 Gbps
Output Impedance 75Ω
Signals SDI protocol.
Supported Resolution 12G-SDI: 2160p50/59.94/60Hz (4:2:2)
6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
3G-SDI: 1080p50/59.94/60Hz (4:2:2)
HD-SDI: 1080p/23.98/24/25/29.97/30Hz
720p/50/59.94/60Hz
1080i/50/59.94/60Hz
SD-SDI: NTSC (59.94Hz), PAL (50Hz)
Audio Up to 8 Audio Channels.
Ancillary Data Supported
Input Signal 12G-SDI : SMPTE ST2082
6G-SDI : SMPTE ST2081
3G-SDI: SMPTE 424M, 425M
HD-SDI: SMPTE 292M, 296M
SD-SDI : SMPTE 259M, 344M
Connectors One (1) BNC Female 75 Ohms, Gold Plated for input.
Eight (8) BNC Female 75 Ohms, Gold Plated for outputs.
One (1) Locking Barrel Jack 2.1mm Power Connector.
Note: RG59 coaxial cables not included.
Cable Equalization 12G-SDI up to 230ft (70m)
6G-SDI up to 330ft (100m)
3G-SDI up to 594ft (180m)
Cable RG-59 or better cable required.
Power Supply One (1) 110-240V/5VDC power supply with interchangeable blades.
Power Consumption 4.5 Watt (Max)
Temperature Operating: 0° to 40°C
Humidity: Up to 90% non-condensing
Enclosure Metal
4.80" x 2.04" x 0.98" (122mm x 52mm x 25mm)
Dimensions
1.07lbs (0.49kg)
Weight
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500728 12G-SDI 1x8 Splitter, 4K/60
2321 Cohen Road, Saint-Laurent, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc. 2020
Storage: -20° to 60°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000939-A SE-000939-A

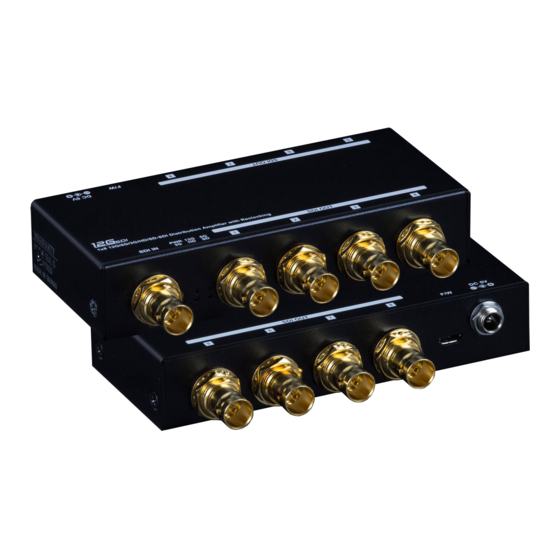

12G-SDI 1X8 Splitter, 4K/60
500728
Quick Installation Guide
Overview
The 12G-SDI 1x8 Splitter, 4K/60 (500728) allows one (1) 12G/6G/3G/HD/SD-SDI
source to be distributed and amplified to up to eight (8) 12G/6G/3G/HD/SD-SDI
displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including
480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60
(12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-
clocks and regenerates the signal at the output for extending distances between source
and displays. Additionally, all connectors are on the rear panel for neater cabling.
Applications
Applications include video production, broadcasting, outside broadcasting vehicle, SDI
camcorder, studio-to-studio, post-production, live events, medical imaging display,
mobile video.
Installation
1. Identify the connectors on the 12G-SDI 1x8 Splitter as indicated on the
product labels above.
2. Connect the source to the 12G-SDI Input of the splitter.
3. Connect up to eight (8) display(s) to the 12G-SDI Outputs of the splitter.
