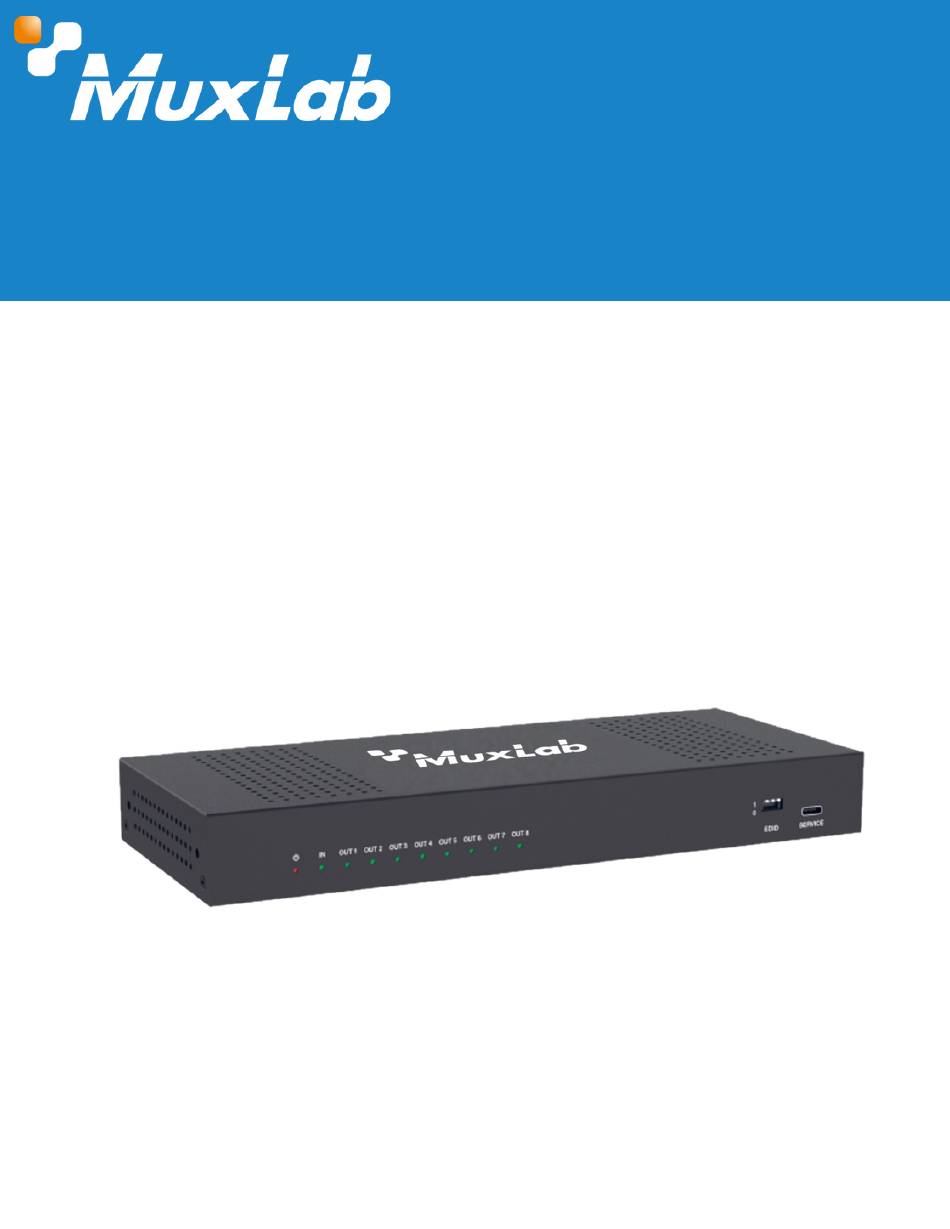

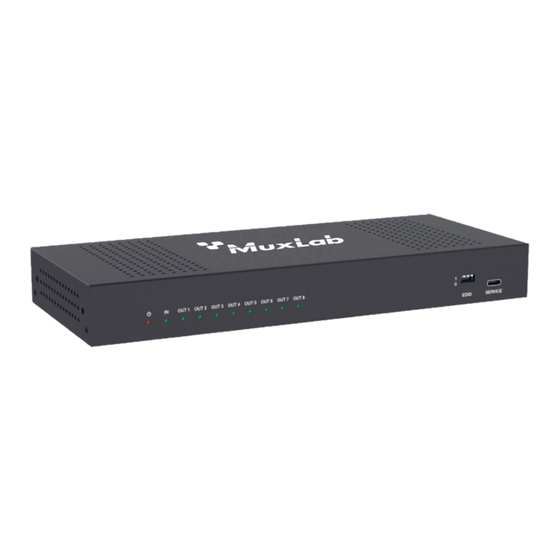

- Page 1 HDMI 2.1 48Gbps 1x8 Splitter User Manual 500512 © MuxLab Inc. 2024 94-001036-A/SE-001036-A...
-
Page 2: Table Of Contents
HDMI 2.1 48Gbps 1x8 Splitter Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Operation Controls and Functions........................6 7. Auto Downscaling & Auto Converting.......................7 8. Application Example...............................8 © MuxLab Inc. 2024 94-001036-A/SE-001036-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction
HDMI 2.1 48Gbps 1x8 Splitter 2. Introduction The HDMI 2.1 48Gbps 1x8 Splitter (model: 500512) is a versatile device with various applications, offering advanced features for splitting HDMI signals. The HDMI 2.1 48Gbps 1x8 Splitter's ability to handle high data rates, support 8K resolution, and provide features like EDID management and cable equalization makes it suitable for a wide range of applications in both residential and commercial settings. -
Page 5: Specifications
12.2W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20℃ ~ 60℃/-4°F ~ 140°F Relative Humidity 20~90% RH (Non-condensing) Warranty 2 years Order Information 500512 HDMI 2.1 48Gbps 1x8 Splitter (UPC: 627699005125) © MuxLab Inc. 2024 94-001036-A/SE-001036-A... -
Page 6: Operation Controls And Functions
IN port or PS5 with an HDMI cable. HDMI signal output port, connected to HDMI display device such as TV OUT port (1~8) or Monitor with an HDMI cable. DC 5V 12VDC/2.5A power input port. © MuxLab Inc. 2024 94-001036-A/SE-001036-A... -
Page 7: Auto Downscaling & Auto Converting
For example: In the example above, 4K is lower than the resolution of input source, so it will downscale and output according to the minimum resolution of 4K SDR. © MuxLab Inc. 2024 94-001036-A/SE-001036-A... - Page 8 2. The resolution of input source is not supported by the splitter Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on TV. © MuxLab Inc. 2024 94-001036-A/SE-001036-A...
-
Page 9: Application Example
8. Application Example Power Supply 8K/4K/1080 Video Source 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: HDMI 2.1 48Gbps 1x8 Splitter 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500512 salesteam@muxlab.com | www.muxlab.com Follow us:...
