MuxLab 500701 Quick Installation Manual

Specifications
Environment SDI, HD-SDI (1080i)
Devices SDI equipment
Transmission Transparent to the user
<6 dB: 5 – 1000 MHz
Insertion Loss Per Balun
BNC connector – male
Connector
RJ45 Pin Configuration Female RJ45 Pins 7&8
Distance For 480i (SD speed):
Up to 110m (375ft) using Cat 5 & 5E UTP ,
up to 150m (500ft) for CAT 6 UTP.
For resolution 720p & 1080i (HD speed)*:
Up to 30m (100ft) using Cat 5 UTP ,
up to 45m (150ft) for CAT 5E & 6 UTP.
Maximum distance is function of the receiving equipment
equalizer and cables. Dedicated Cat5e/6 cables are
recommended. Patch panels, patch cables and wallplate
interconnect are not recommended.
The balun will not work with STP cable.
*Please note that many new equipment that are referring
to HD-SDI are using the 3G speed.
The balun will not work at 3G speed.
None. There is no voltage isolation between units.
Isolation
Temperature Operating: -20° to 50°C. Storage: -30° to 70°C.
Enclosure Cast Aluminum
Humidity Maximum 95% (non-condensing)
0.8" x 1.85" x 1.05" (2 x 2.6 x 4.7 cm) L x H x W + extended
Dimensions
BNC connector.
Weight 1.5 oz (44 g)
Warranty Lifetime
Order Information 500701
500701-2PK HD-SDI Balun, 2 pack
© MuxLab Inc.

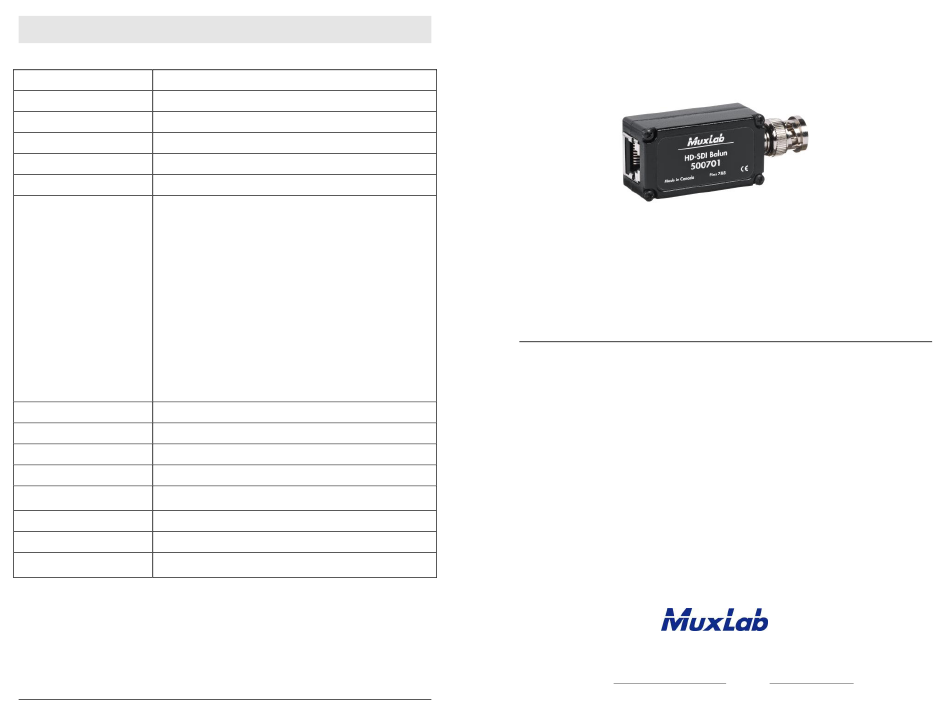

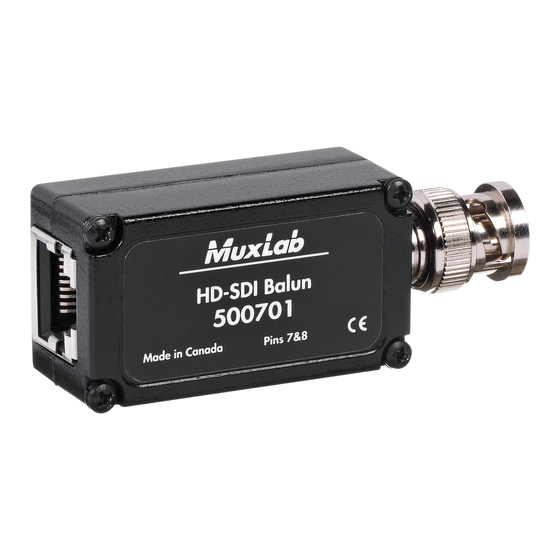

HD-SDI Balun
94-000727-C
HD-SDI Balun
500701
Quick Installation Guide
Overview
The HD-SDI Balun (500701) allows one SDI signal to be transmitted up to 150 ft (45m)
via CAT cable at HD resolution (720p, 1080i) in a point-to-point configuration. The
HD-SDI Balun supports transmission of uncompressed, un-encrypted digital video
(optionally including embedded Audio and/or Time Code) within television facilities
and between professional video equipment. Two identical balun are required.
Applications
Video production, broadcasting, HD camcorder, studio-to-studio, post-production, live
events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, medical
imaging.
