715 Cylinder Dogging Kit
Installation Instructions
Used with 7000 Series Exit Devices
Application: Any Non-Fire rated 7000 Series exit devices (rim, vertical rod, or mortise) shipped after March 1994.
Cylinder Dogging
Assembly

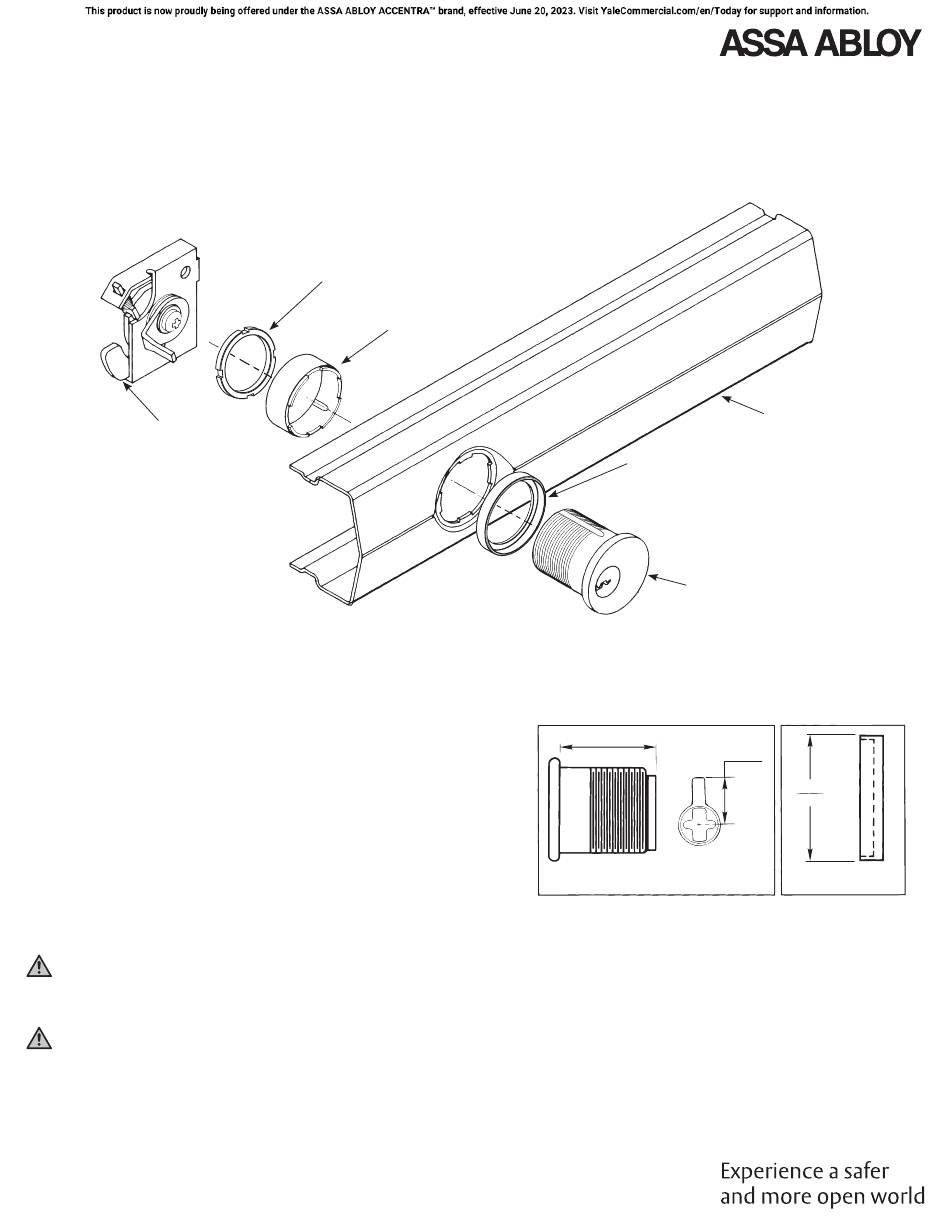

Cylinder End Cover Assembly:
1. Position cylinder into end cover with keyway horizontal and plug toward closest end of cover.
2. Engage cylinder spacer lugs into matching notches in end cover.
3. Secure parts in place with cylinder nut.
Dimensions are shown in inches (mm).
Note: Use ASSA ABLOY 2153 x 2160 cam, 1-1/8"
(29mm) mortise cylinder (order separately). For
cylinders over 1-1/8" (29mm), use ASSA ABLOY
1765 series cylinder ring.
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a
code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-800-438-1951 • www.assaabloy.com
Copyright © 1994, 2013, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Cylinder Nut
Cylinder Spacer
1765 Series
Cylinder Collar
(if required)
1-1/8" (29mm) Mortise Cylinder
with ASSA ABLOY 2160 Cam
(order separately)
1-1/8"
.742"
(29)
(18.8)
2160 Cam
TYPICAL MORTISE CYLINDER
End Cover
1-1/2"
Dia.
(38)
1765 Series
CYLINDER RINGS
80-9470-0715-000 11/23
