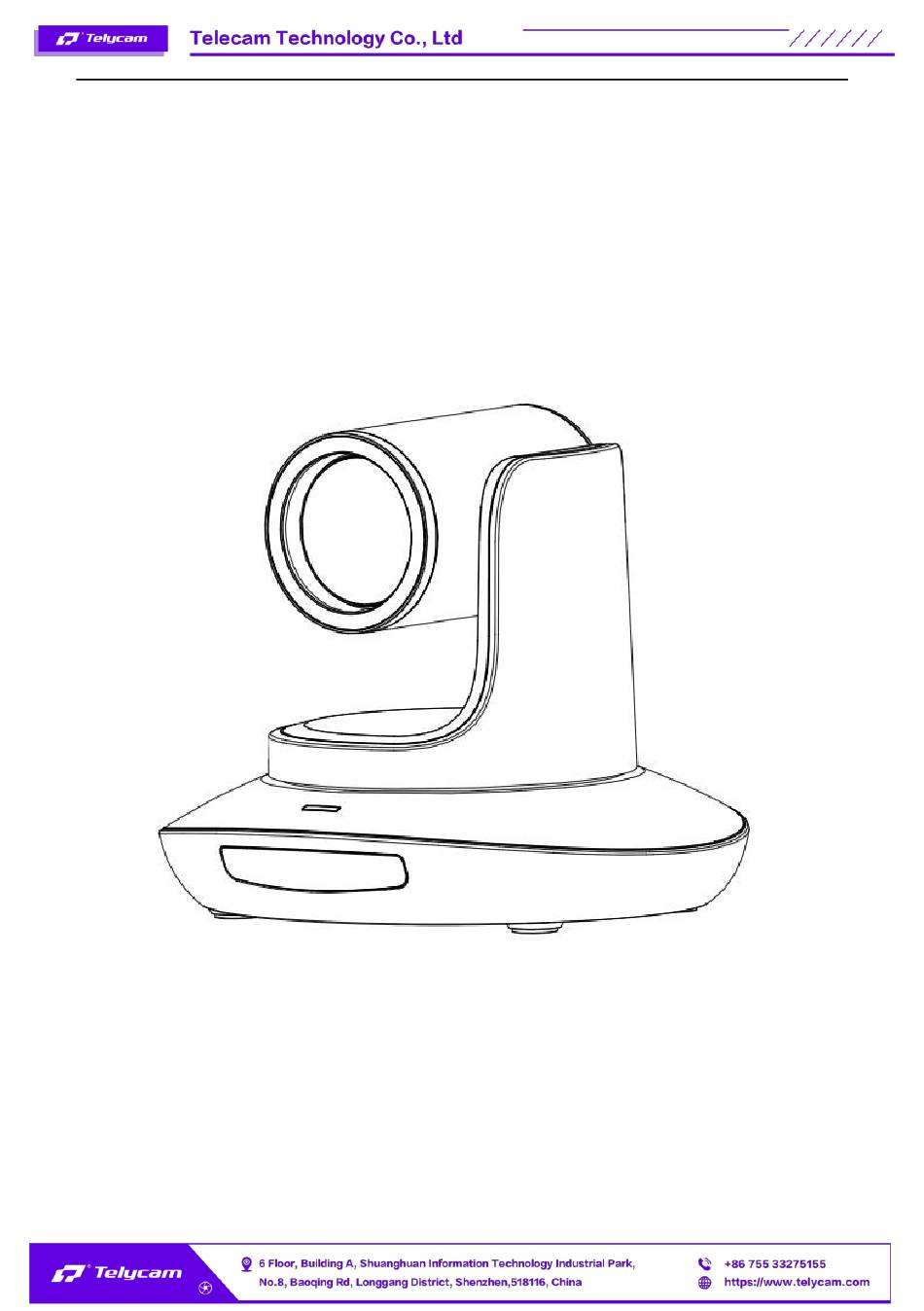

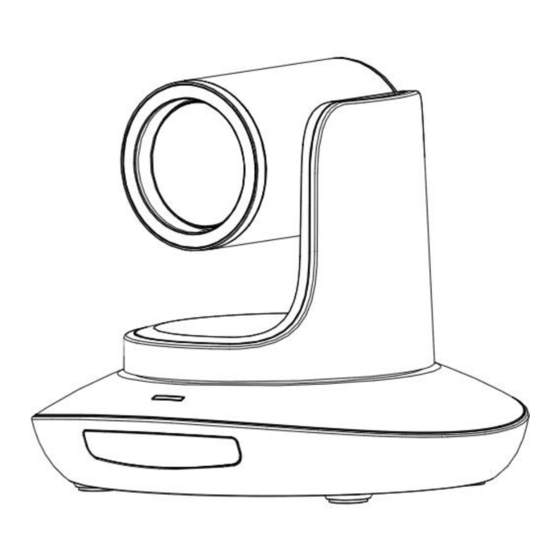

- Page 1 USB3.0 HD Video Camera User Manual Version V1.0 （English） J.BC.0205.
-
Page 2: Table Of Contents
CONTENTS SAFETY GUIDES...............................2 ACCESSORIES..............................2 QUICK START..............................3 PRODUCT HIGHLIGHTS...........................4 PRODUCT SPEC...............................4 CAMERA INTERFACE............................5 CAMERA DIMENSION.............................5 IR REMOTE CONTROLLER..........................6 LEARNING FUNCTION.............................7 VISCA IN(RS232) PORT............................8 VISCA PROTPCOL............................9 PELCO-D PROTOCOL.............................16 PELCO-P PROTOCOL............................17 OSD MENU..............................18 UVC CONTROL...............................22... -
Page 3: Safety Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A. -
Page 4: Quick Start
QUICK START 1.Check all cable connections before power on. 2.DIP Switch Setting (at the bottom of the camera): Function（ARM） SW-1 SW-2 Instruction Updating mode Debugging mode Undefined Working mode Function （IR CODE TYPE） Function （USB） SW-3 SW-4 Instruction SW-5 SW-6 Instruction Working mode Working mode... -
Page 5: Product Highlights
IR remote control signal, and pass these IR control signal to the codec’s IR receiver (via VISCA IN port). • Multi-language OSD menu: English, Chinese. PRODUCT SPEC Camera Meet+ 12-U3 Item Number TLC-300-U3-12P Sensor 1/2.8-inch high-quality 2.4MP HD CMOS sensor USB3.0：... - Page 6 Minimum Object Distance Wide: 1.0m; Tele: 1.5m >50dB Image parameter Noise Reduction 2D/3D Minimum LUX 0.7lux (50 IRE Max AGC,1/30, F1.8) White Balance Auto/Manual/Indoor/Outdoor/Push/Sodium/Fluorescent Focus Auto / Manual Iris Auto / Manual Electronic Shutter Auto / Manual Supported Mechanism Pan Rotation Angle -170°...
-
Page 7: Camera Interface
CAMERA INTERFACE 1. Camera Lens 5. Dial Switch 9. 12VDC Power Input 2. Camera Base 6. Tripod Screw Hole 10. RS232(VISCA IN) Port 3. IR Receiver Panel 7. Installation Hole 11. USB3.0 Port 4. Indicator Light 8. Power Indicator light(red) CAMERA DIMENSION(MM) -
Page 8: Ir Remote Controller
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera. Press any button and shows in green color: Current selection is to control the codec. Press any button and shows in blue color: Current selection is to control the TV. Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... -
Page 9: Learning Function
LEARNING FUNCTION： 1.Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode. 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;... -
Page 10: Visca In(Rs232) Port
VISCA IN (RS232) PORT Function IR OUT VISCA IN &RS485 Connection VISCA IN &DB9 Connection Camera VISCA IN RS485 Camera VISCA IN Windows DB-9 A(+) A(+) A(+) IR OUT IR OUT B(-) B(-) B(-) SERIAL PORT CONFIGURATION: Parameter Value Parameter Value Baud rate 2400/4800/9600/115200... -
Page 11: Visca Protpcol
VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a Syntax Error z0 60 02 FF... - Page 12 Command Function Command Packet Note Outdoor 8x 01 04 35 02 FF OnePush 8x 01 04 35 03 FF 8x 01 04 35 04FF Manual 8x 01 04 35 05 FF Sodium Lamp 8x 01 04 35 08 FF Fluorescent lamp 8x 01 04 35 09 FF Reset 8x 01 04 03 00 FF...
- Page 13 Command Function Command Packet Note 8x 01 04 0D 02 FF Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon 8x 01 04 3D 02 FF WDR ON/OFF CAM_WDR 8x 01 04 3D 03 FF Direct...
- Page 14 Command Function Command Packet Note Menu Off 8x 01 06 06 03 FF Turn off the menu Transfer On 8x 01 06 1A 02 FF Receive IR(remote commander) IR_Transfer CODE from VISCA communication Transfer Off 8x 01 06 1A 03 FF ON/OFF 8x 01 06 08 02 FF IR(remote commander)receive...
- Page 15 y0 50 05 FF Manual CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto y0 50 03 FF Manual...
- Page 16 VISCA PAN TILT ABSOLUTE POSITION VALUE Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(degree/second) tilt(degree/second) 50/25mode 60/30mode 1/10000 close 1/10000 1/6000...
- Page 17 1/1250 F6.8 1/1500 1/1000 F5.6 1/1000 1/600 1/725 F4.8 1/425 1/500 1/300 F3.4 1/350 1/215 F2.8 1/250 1/150 F2.4 1/180 1/120 1/125 1/100 F1.6 1/100 1/75 1/90 1/50 1/60 1/25 f2.0 1/30 1/12 f1.8 1/15 16dB 18dB 20dB 22dB Gain Gain 24dB 10dB...
-
Page 18: Pelco-D Protocol
PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed... -
Page 19: Pelco-P Protocol
PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address... -
Page 20: Osd Menu
OSD MENU 1.under working mode, press the menu button on the IR remote, to enter the OSD menu . 2.Use the navigate button to select the main menu. Once been selected, the main menu will change to grey color background, and the right side will show all parameters under this sub menu : 3.Press the right navigate button to enter sub menu, use up and down navigate button to select parameter. - Page 21 FOCUS MODE AUTO/MANU/PUSH AUTO SENSITIVITY Focus Sensitivity setting: LOW/MID/HIGH FOCUS LIMIT The target distance: 1.5M/2M/3M/6M/10M 1.5M D_ZOOM Digital Zoom: OFF/ON FOCUS ZOOM SPEED Set zoom speed level:0~7 Lens focus parameter frequency setting, LENS INIT choose EXE to start the lens focus reset DIS ZOOM RATIO Display zoom value during zooming control RETURN...
- Page 22 DEFOG Set image permeability RETURN Return to previous menu 2D NR ON/OFF 3D NR OFF/AUTO/1~4 AUTO D_WDR Set dynamic level : OFF/1~6 IMAGE GAMMA Set gamma: 0~4 ENHANCE BACKLIGHT ON/OFF HIGHLIGHT ON/OFF RETURN Return to previous menu MASK SWITCH Privacy zone function: ON/OFF COLOUR Set mask zone color: WHITE/YELLOW/GRAY/GREEN/VIOLET/RED WHITE...
- Page 23 INF. IMAGE DATE Image firmware release date: YY/MM/DD CONTROL VER. Control firmware version CONTROL DATE Control firmware release date: YY/MM/DD BAUDRATE Current baud rate value PARITY BIT Current control protocol parity bit value FRAMERATE Current resolution RETURN Return to previous menu RESET REEST to defaulted value (except the Language): ON/OFF...
-
Page 24: Uvc Control
UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration(the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3．Make sure the interval of video format switching more than 1 seconds, otherwise black video maybe caused.
