Telycam TLC-200-U3S User Manual

Fixed usb hd video camera

Fixed USB HD Video Camera

(V1.0)

Table of Contents

Need help?

Do you have a question about the TLC-200-U3S and is the answer not in the manual?

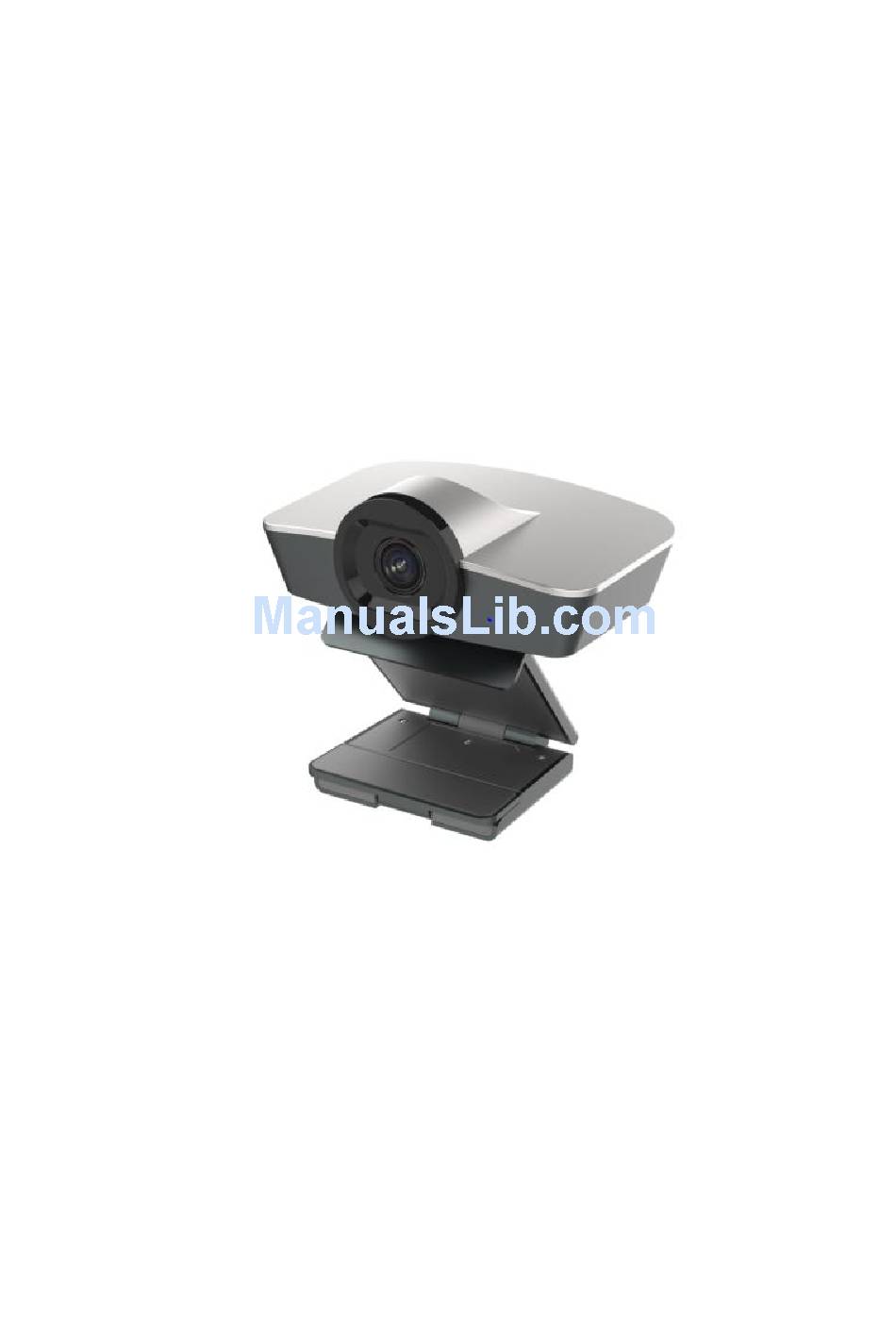

Page 1 Fixed USB HD Video Camera (V1.0)
Page 2: Product Features
Fixed USB HD Video Camera Product Advantages:  Ultra crystal video quality: adopts advanced DSP, 1/2.8 inch 2 megapixel sensor and high quality 12 megapixel lens;  All video, control and power over single USB cable;  Smart and solid design; ...
Page 3 Fixed USB HD Video Camera USB3.0 Model Spec 1/2.8 inch high quality, 2.1 megapixel SONY Sensor CMOS sensor USB 3.0 mode: 1920*1080@30/25,1280*720@60/50/30/25 1024*576@30,960*540@30,704*576@30 360*640@30, 352*288@30 Video Format USB 2.0 mode: 1280*720@25, 960*540@30, 704*576@30, 360*640@30, 352*288@30 Optical Zoom 12 megapixel fixed lens Digital Zoom Field of Viewing 70°/108°...
Page 4 Fixed USB HD Video Camera USB2.0 Model Spec 1/2.8 inch high quality, 2.1 megapixel SONY Sensor CMOS sensor Video Format 1080p30(MJPG), backward compatible Optical Zoom 12 megapixel fixed lens Digital Zoom Field of Viewing 70°/108° Sensor Resolution 2.1 megapixel Control Port USB2.0 (UVC) Video Port USB2.0...
Page 5 Fixed USB HD Video Camera Explanation: 1. Lens 2. Indicator Light 3.Tilt Bearing 4.Universal Clip 5.Tripod Hole Dimension Drawing：(mm)
Page 6 Fixed USB HD Video Camera Suggested Installation Modes: Model 1: on top of laptop Model 2: on top of monitor Model 3: on top of flat TV screen Model 4: at the bottom of TV Model 5: wall mount...
