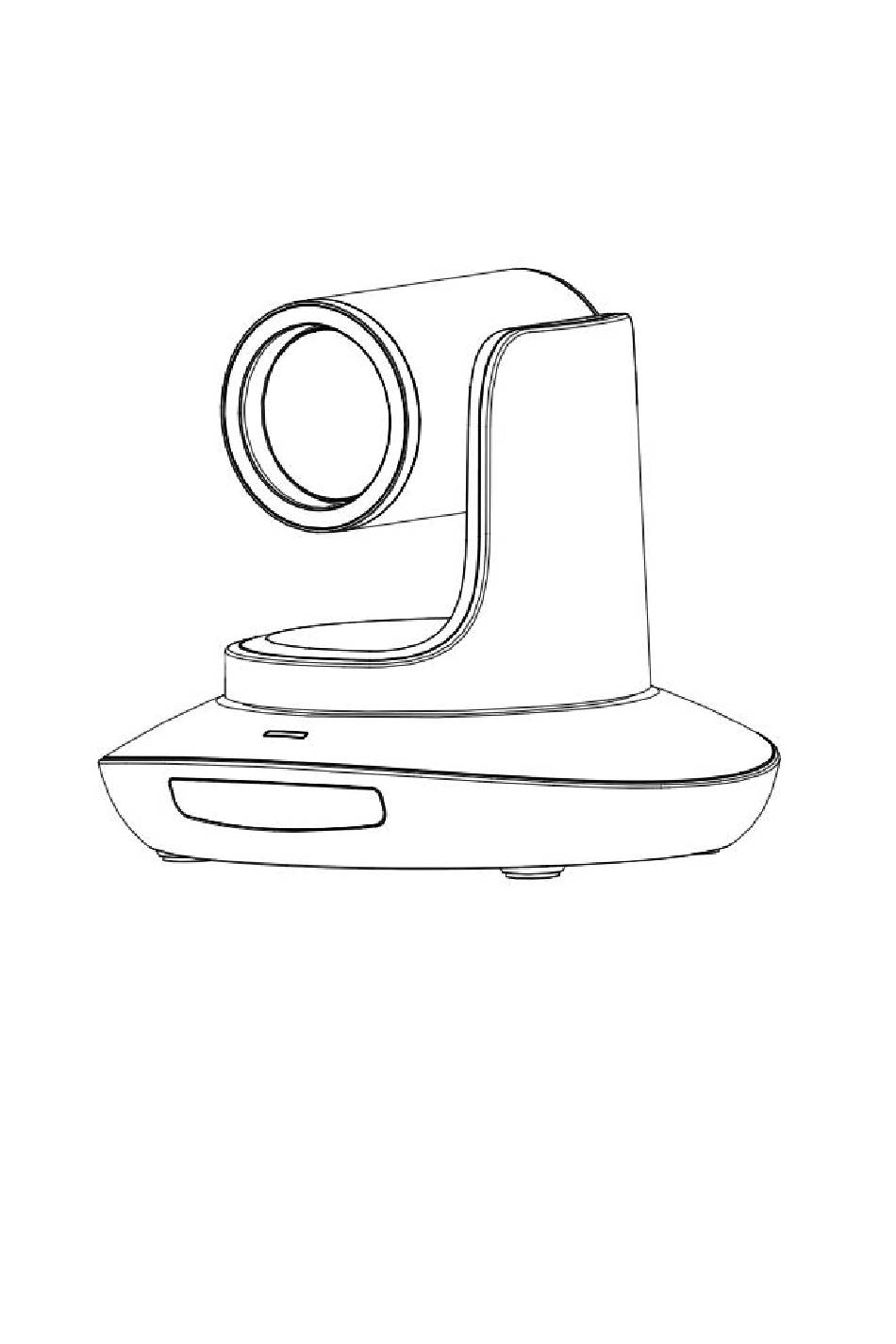

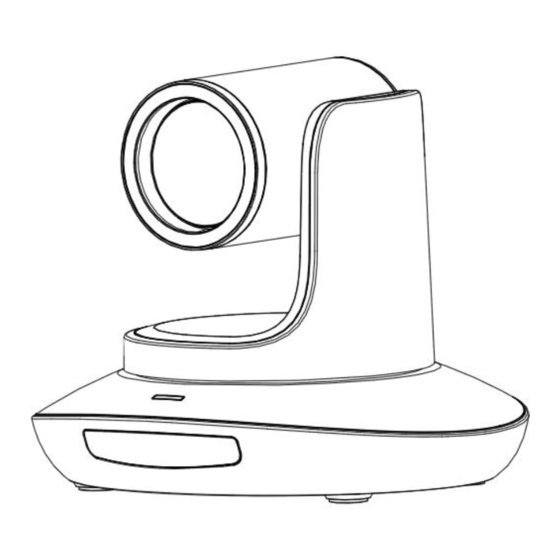

- Page 1 USB2.0 HD Video Camera User Manual Version V1.0 （English）...
-
Page 2: Table Of Contents
CONTENTS SAFE GUIDES……………………...…………………………………..…..…........…4 ACCESSORIES..………………………………………………………………..…........4 QUICK START..............................5 PRODUCT HIGHLIGHTS............................6 PRODUCT SPEC..............................7 CAMERA INTERFACE............................8 CAMERA DIMENSION............................8 IR REMOTE CONTROLLER..........................9 VISCA IN(RS232) PORT...........................10 VISCA PROTOCOL............................11 IR TRANSFER(IR PASS)............................17 UVC CONTROL...............................17... -
Page 3: Safe Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 1.5A. -
Page 4: Quick Start
QUICK START Check all cable connections before power on. 2.DIP Switch Setting (at the bottom of the camera): Function（ARM） SW-1 SW-2 Instruction Updating mode Debugging mode Undefined Working mode Function （IR CODE TYPE） SW-3 SW-4 Instruction Off(Close IR receiver) Undefined SEJIN 4PPM CODE NEC CODE(standard) Function （USB）... -
Page 5: Product Highlights
PRODUCT HIGHLIGHTS Smart and fashion design, ideal for cloud-based conferencing Adopts advanced Ambarella DSP， 1/2.8 inch 5MP image sensor, and high quality 12X 72.5degree FOV optical lens, provides fluent and crystal image quality Fast switching between different video formats: less than 1 second ... -
Page 6: Product Spec
PRODUCT SPEC 1080P30, 720P30, 640*480P30 Video Format MJPG Video Port USB2.0 Sensor 1/2.8 inch high quality 5MP CMOS sensor F3.92～47.32mm(12X), F1.8 – 14, Field of view: 72.5°(wide)-6.3°(tele) Lens Pan:±170°; Tilt:-30°~+90°, support up-side down installation Pan/tilt Rotation Pan: 0.1°-120° /s; Tilt: 0.1°-80° /s Pan/tilt Speed Preset 10 via IR remote setting, 128 via VISCA control, preset accuracy :0.1°... -
Page 7: Camera Interface
CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9.USB2.0 Port 2.Camera Base 6. Tripod Screw Hole 10.DC12V Power Input 3.IR Receiver Panel 7.Installation Hole 11.Power Indicator light（red） 4.Indicator Light 8.RS232(VISCA IN) Port CAMERA DIMENSION(MM) -
Page 8: Ir Remote Controller
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... -
Page 9: Visca In(Rs232) Port
LEARNING FUNCTION： Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;... -
Page 10: Visca Protocol
SERIAL PORT CONFIGURATION: Parameter Value Parameter Value Baud rate 2400/4800/9600/115200 Stop Bit 1bit Start Bit 1 bit Verify Bit None Date Bit 8 bit VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. - Page 11 Command Funnation Command Packet Note Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position One Push AF 8x 01 04 18 01 FF pqrs: Zoom Position (0(wide)~ 8x 01 04 47 0p 0q 0r 0s CAM_ZoomFocus Direct 0x4000(tele)) 0t 0u 0v 0w FF...
- Page 12 Command Funnation Command Packet Note Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon (0~0x0E) Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon...
- Page 13 Command Funnation Command Packet Note 0x14 (high speed) Left 8x 01 06 01 VV WW 01 03 FF YYYY: Pan Position(TBD) Right 8x 01 06 01 VV WW 02 03 FF ZZZZ: Tilt Position(TBD) Upleft 8x 01 06 01 VV WW 01 01 FF Upright 8x 01 06 01 VV WW 02 01 FF DownLeft...
- Page 14 y0 50 03 FF CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_MemoryInq 8x 09 04 3F FF y0 50pp FF pp: Memory number last operated.
- Page 15 60/30mode 50/25mode 1/10000 close 1/10000 1/6000 1/6000 1/4000 1/3500 1/3000 F9.6 1/2500 1/2000 1/1750 1/1500 F6.8 1/1250 1/1000 F5.6 1/1000 1/725 F4.8 1/600 1/500 1/425 Iris 1/350 F3.4 1/300 Shutter 1/250 F2.8 1/215 speed 1/180 F2.4 1/150 1/125 1/120 1/100 F1.6 1/100 1/90...
-
Page 16: Ir Transfer(Ir Pass)
IR TRANSFER(IR PASS) 1. Currently the camera support NEC code format. For customized with other codes, pls contact us. 2. Once the camera finish power configuration, enable the IR transfer function via sending COM command. 3. Get the targeted remote controller point to the camera IR receiver, press keys on the remote controller, then the camera will output the received IR code via VISCA IN port. - Page 17 4. Select the last option “return”and press the right navigate button to get back to previous menu; 5. Press OSD button again to exit the menu. LANGUAGE Chinese/English PROTOCOL VISCA/PELCO-P/PELCO-D ADDRESS CAMERA SET BAUD RATE 2400,9600,115200 PARITY BIT NONE RETURN Back to the main menu FOCUS MODE AUTO/MANUAL/PUSH...
- Page 18 0-15 BRIGHTNESS SHARPNESS 0-15 CONSTRAST 0-15 SATURATION 0-15 PICTURE MIRROR Image 180degree rotation left/right: OFF/ON PIC FLIP Image 180degree rotation up/down: OFF/ON FREEZE OFF/ON DEFOG OFF/1-15 RETURN Back to the main menu 2D NR OFF/ON； 3D NR OFF/AUTO/ 1-4 D_WDR OFF/1-6 IMAGE ENHANCE GAMMA...
-
Page 19: Uvc Control
D/N MODE DAY/NIGHT/AUTO/ DAY TO NIGHT 15-200 NIGHT TO DAY 5-190 D/N MODE SWITCH DELAY 1-60 GAIN LIMIT 2-511 RETURN Back to the main menu IMAGE VER. PC-V0.0.6 (changes without additional notices) IMAGE DATE 16.10.20 (changes without additional notices) CONTROL VER. UC V0.1.4 (changes without additional notices) CONTROL DATE 17.01.07 (changes without additional notices)
