Page 1: User Manual

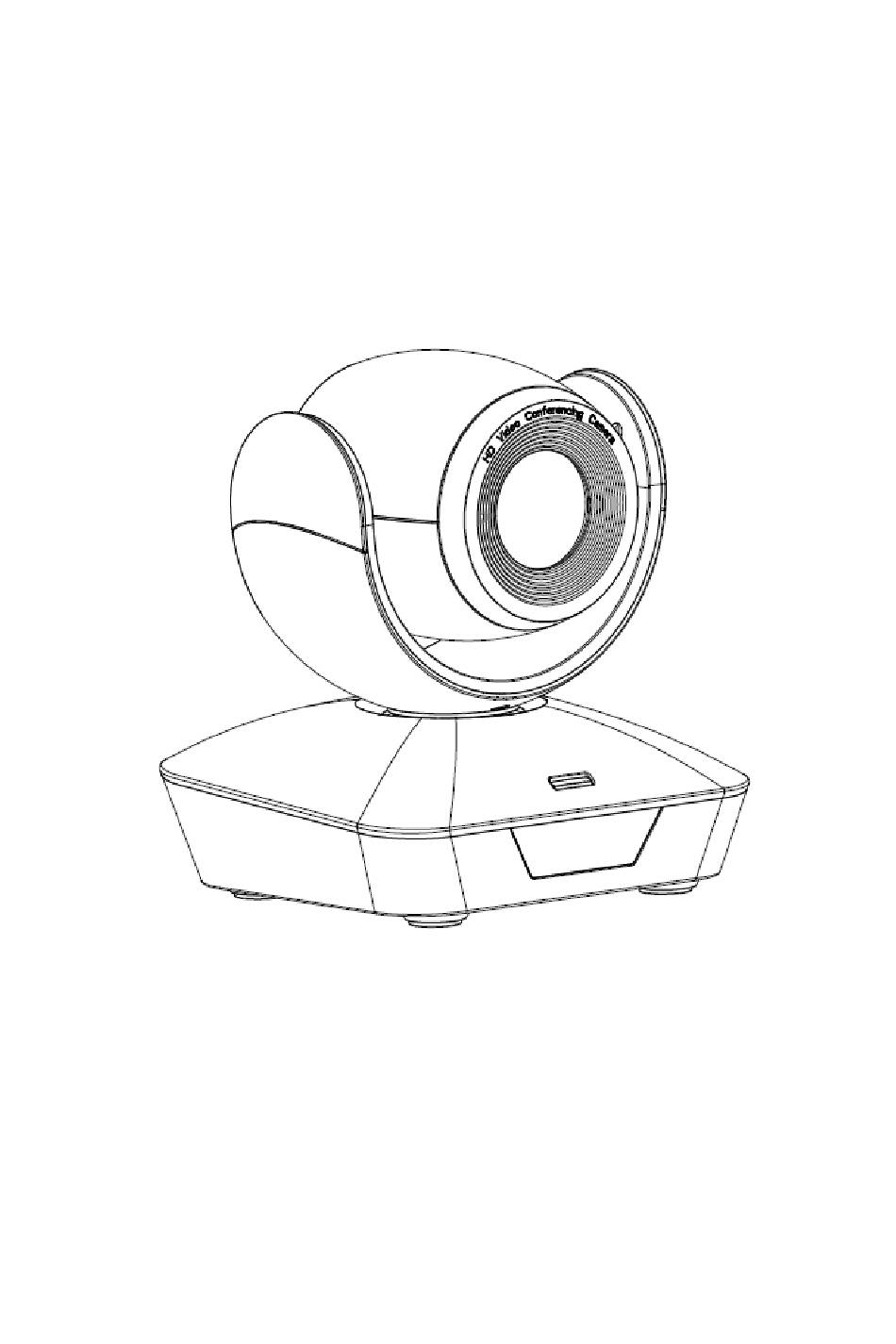

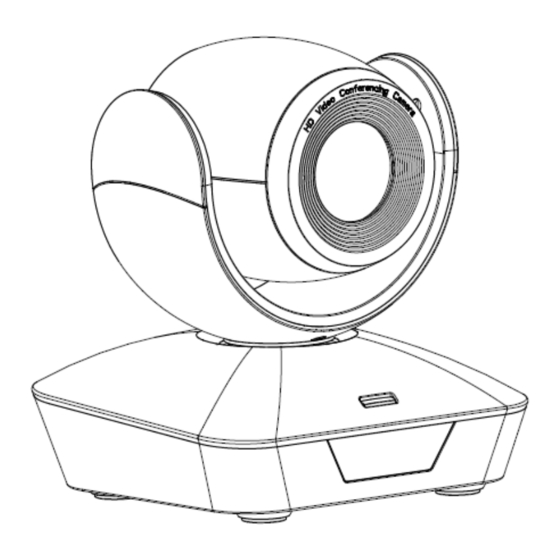

USB3.0 HD Video Camera User Manual Version V1.0 （English）... -
Page 2: Table Of Contents
CONTENTS SAFE GUIDES.…………………...…………………………………..…..…........…3 ACCESSORIES……………………………………………………………………..…........5 QUICK START..............................5 PRODUCT HIGHLIGHTS............................6 PRODUCT SPEC..............................7 CAMERA INTERFACE............................8 CAMERA DIMENSION............................8 IR REMOTE CONTROLLER..........................9 VISCA IN(RS232) PORT............................11 VISCA PROTPCOL............................12 PELCO-D PROTOCOL............................19 PELCO-P PROTOCOL............................20 OSD MENU..............................21 IR TRANSFER(IR PASS) & UVC CONTROL......................24... -
Page 3: Safe Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240V AC(50-60Hz),ensure the power supply input within this rate. 3.The camera can be powered via the factory supplied USB3.0 cable(3meters)；We suggest you connect to the power adapter(supplied by the factory) if the camera is connecting to USB2.0 port or USB3.0 extender cable. - Page 4 DO NOT use hands for catching or moving the camera barrel , otherwise it may damage the camera mechanical structure. DO NOT use hands to quick rotate the camera barrel , otherwise it may damage the camera mechanical structure, even break the motor driving.
-
Page 5: Accessories
ACCESSORIES Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·... -
Page 6: Product Highlights
PRODUCT HIGHLIGHTS Smart and fashion design, ideal for cloud-based conferencing Adopts advanced Ambarella DSP，1/2.8 inch 5MP image sensor, and high quality 5X 85degree FOV optical lens, provides fluent and crystal image quality 3 cables in 1 design: video，control & power can be transited via single USB3.0 cable. (notice: to achieve stable power supply via USB3.0 cable, we suggest only use the 3m USB3.0 cable supplied by the factory, and the PC’s USB3.0 port can supply more than 5V 1000mA power;... -
Page 7: Product Spec
PRODUCT SPEC 1080P60/50/30/25,720P60/50/30/25, USB3.0 1024x576@30, 960x540@30, 640x360@30, 352x288@30 Video Format (YUY2) 1024x576@30, 960x540@30, 640x360@30, 352x288@30 USB2.0 USB3.0, USB2.0 Video Port Sensor 1/2.8 inch high quality 5MP CMOS sensor Lens F3.1～15.5mm(5X), F1.8 ~2.8, Field of viewing: 85° (wide)-20° (tele) Pan/tilt Rotation Pan:±... -
Page 8: Camera Interface
CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9. 12VDC Power Input 2.Camera Base 6. Tripod Screw Hole 10.RS232(VISCA IN) Port 3.IR Receiver Panel 7.Installation Hole 11. USB3.0 Port 4.Indicator Light 8. Power Indicator light（red） CAMERA DIMENSION(MM) -
Page 9: Ir Remote Controller
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... - Page 10 LEARNING FUNCTION： Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;...
-
Page 11: Visca In(Rs232) Port
VISCA IN (RS232) PORT Function IR OUT VISCA IN &RS485 Connection VISCA IN &DB9 Connection Camera VISCA IN RS485 Camera VISCA IN Windows DB-9 A(+) A(+) A(+) IR OUT IR OUT B(-) B(-) B(-) SERIAL PORT CONFIGURATION: Parameter Value Parameter Value Baud rate 2400/4800/9600/115200... -
Page 12: Visca Protpcol
VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a Syntax Error z0 60 02 FF... - Page 13 Command Function Command Packet Note OnePush 8x 01 04 35 03 FF 8x 01 04 35 04FF Manual 8x 01 04 35 05 FF Sodium Lamp 8x 01 04 35 08 FF Fluorescent lamp 8x 01 04 35 09 FF Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF...
- Page 14 Command Function Command Packet Note 8x 01 04 3D 02 FF WDR ON/OFF CAM_WDR 8x 01 04 3D 03 FF Direct 8x 01 04 D3 0p FF pq: WDR Position (1~0x06) 8x 01 04 33 02 FF BackLight On CAM_BackLight 8x 01 04 33 03 FF BackLight Off Reset...
- Page 15 Command Function Command Packet Note 8x 01 06 08 02 FF IR_Receive 8x 01 06 08 03 FF IR(remote commander)receive ON/OFF On/Off 8x 01 06 08 10 FF IR(remote commander)receive 8x 01 7D 01 03 00 00 FF IR_ReceiveReturn message via the VISCA communication 8x 01 7D 01 13 00 00 FF ON/OFF 8x 01 06 01 VV WW 03 01 FF...
- Page 16 CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AEModeInq 8x 09 04 39 FF y0 50 0A FF Shutter priority y0 50 0B FF Iris priority y0 50 0D FF Bright...
- Page 17 EXPOSURE DATA SHEET 60/30mode 50/25mode close 1/10000 1/10000 1/6000 1/6000 1/3500 1/4000 F9.6 1/2500 1/3000 1/1750 1/2000 F6.8 1/1250 1/1500 F5.6 1/1000 1/1000 F4.8 1/600 1/725 1/425 1/500 Iris F3.4 1/300 1/350 Shutter F2.8 1/215 1/250 speed F2.4 1/150 1/180 1/120 1/125 F1.8...
- Page 18 IRIS GAIN F1.8 +28 dB F1.8 +26 dB F1.8 +24 dB F1.8 +22 dB F1.8 +20 dB F1.8 +18 dB F1.8 +16 dB F1.8 +14 dB F1.8 +12 dB F1.8 +10 dB F1.8 +8 dB F1.8 +6 dB F1.8 +4 dB F1.8 +2 dB Bright...
-
Page 19: Pelco-D Protocol
PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed... -
Page 20: Pelco-P Protocol
PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address... -
Page 21: Osd Menu
OSD MENU under working mode, press the menu button on the IR remote, to enter the OSD menu ; 2.Use the navigate button to select the main menu. Once been selected, the main menu will change to blue color background, and the right side will show all parameters under this sub menu : 3.Press the right navigate button to enter sub menu, use up and down navigate button to select parameter;... - Page 22 FOCUS MODE AUTO, MANUAL/PUSH Defaulted:AUTO Focus Distance between camera and the object: Defaulted:1.5M FOCUS LIMIT 1.5M/2M/3M/6M/10M FOCUS DZOOM DIGITAL ZOOM: ON/OFF Defaulted: OFF RATIO DIS Zoom Rate Display (include Digital Zoom): ON/OFF Defaulted: OFF RETURN Back to Main Menu EXP. MODE Exposure Mode：AUTO/MANUAL/BRIGHT/SHUTTER/IRIS Defaulted: AUTO Shutter Speed:1/8~1/10000, Only valid when EXP MODE set...
- Page 23 2D NR 2D Noise Reduction: OFF/ON Defaulted: OFF 3D NR 3D Noise Reduction: OFF/AUTO/1~4 Defaulted:AUTO SHARPNESS Sharpness Setting: OFF/0~15 Defaulted: OFF CONTRAST Contrast Setting: 0~15 Defaulted: 8 QUALITY SATURATION Color Saturation Setting: 0~15 Defaulted:8 BRIGHT Brightness Setting: 0~15 Defaulted:8 D_WDR Wide Dynamic Rate: OFF/1~6 Defaulted: OFF RETURN...
- Page 24 IR TRANSFER(IR PASS) 1. Currently the camera support NEC code format. For customized with other codes, pls contact us. 2. Once the camera finish power configuration, enable the IR transfer function via sending COM command. 3. Get the targeted remote controller point to the camera IR receiver, press keys on the remote controller, then the camera will output the received IR code via VISCA IN port.
