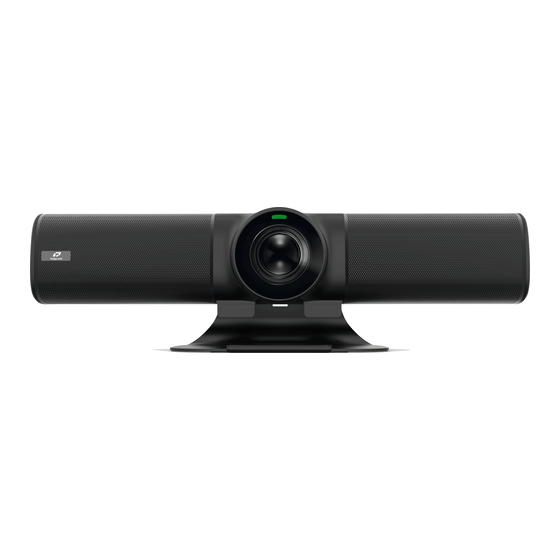

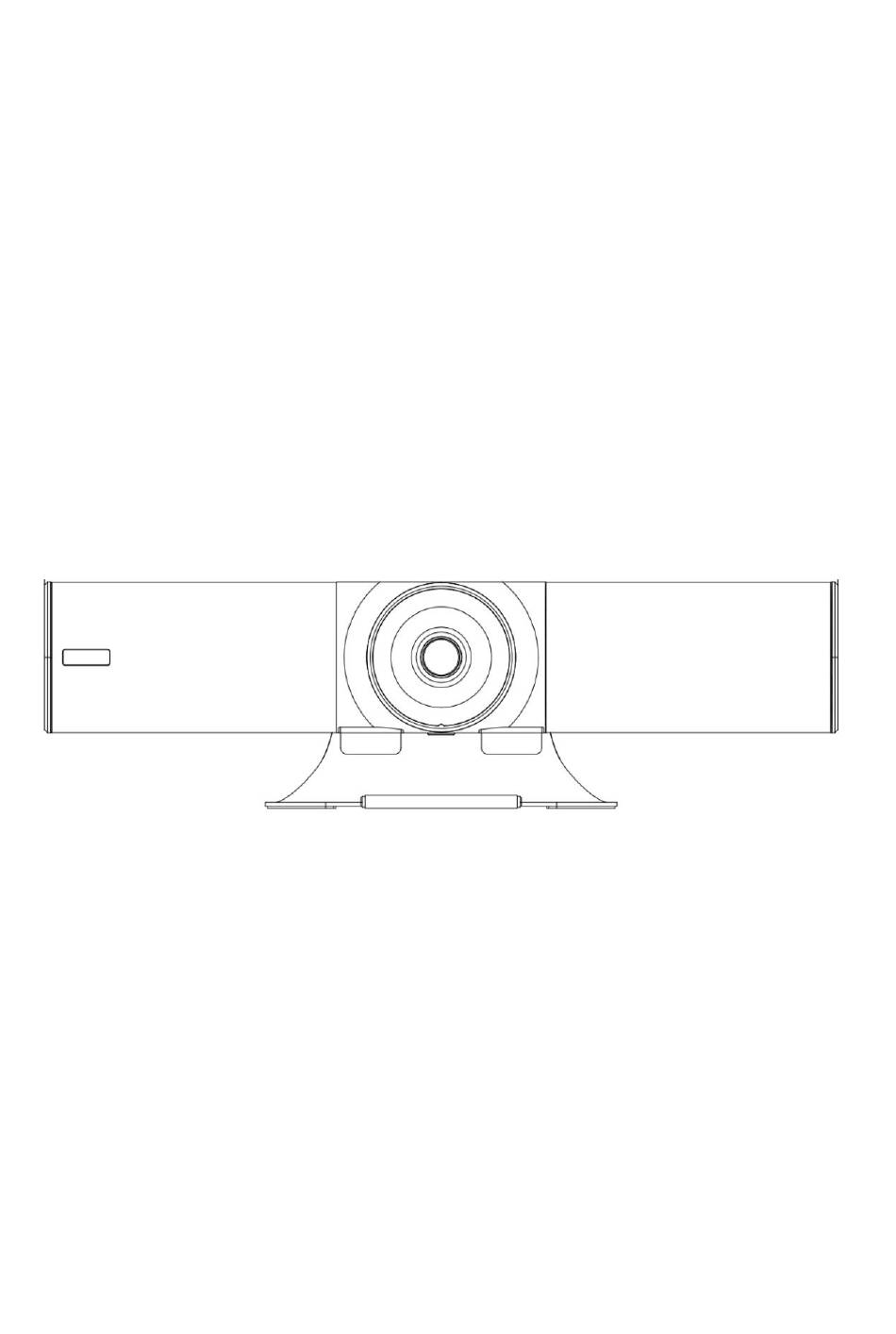

- Page 1 4K UHD All-in-One Video Camera (V2.0) J.BC.0205.0150...
-
Page 2: Packing List
4K UHD All-in One Video Camera PACKING LIST Check all bellow items when open the package: Camera······················································································1 Power Adapter············································································· 1 Power Cable················································································1 Type-C Cable·············································································· 1 Remote Controller·········································································1 User Manual··············································································· 1 QC certification············································································1 QUICK START 1. Check all cable connections before power on. 2. -
Page 3: Product Advantages
4K UHD All-in One Video Camera PRODUCT ADVANTAGES: Adopt advanced DSP, Sony 1/2.8 inch 8.42 megapixel sensor and high quality 12 megapixel lens, to output Ultra high definition, crystal clear image. USB2.0 YUY2/NV12/MJPG/H.264/H.265 video format, works with Windows, MAC OS, Android, Linux OS. ... -
Page 4: Product Spec
Background noise suppression Auto-level loud and soft voices Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion PRODUCT SPEC Model 4K UHD All-in-One Video Camera 1/2.8 inch high quality, 8.42 megapixel SONY CMOS Sensor sensor YUY2, NV12: 1280*720@15; 1024*576@20;... - Page 5 4K UHD All-in One Video Camera Video Port Type-C(USB2.0) S/N Ratio >50dB Focal Length f＝2.20mm Minimum Lux. 0.1 lux White Balance Auto/Manual Iris F 2.2 Anti-Flicker 50HZ/60HZ/OFF Supported Edge Enhancement Supported Digital Noise Reduction 2D&3D Image Flip Supported Electronic Pan/Tilt Supported Auto frame Supported...
-
Page 6: Camera Interface
4K UHD All-in One Video Camera CAMERA INTERFACE: 1. Speaker 7. Type-C (USB2.0) interface 2. Camera lens 8. Dial switch 3. Status indicator light 9. Adjustable spindle 4. Multi array microphone 10. Rotatable bracket 5. DC12V power interface 11. Safety cord interface 6. -
Page 7: Installation Modes
4K UHD All-in One Video Camera INSTALLATION MODES:... - Page 8 4K UHD All-in One Video Camera INSTRUCTIONS FOR WIRELESS REMOTE CONTROL: LED function indication: Press any button to show red color: it means that the present selection is to control camera 1; Press any button to show green color: it means that the present selection is to control camera 2;...
- Page 9 4K UHD All-in One Video Camera A/M: Auto frame/Manual frame. PUSH Frame: In Auto frame off mode, you can manually trigger the Auto frame once. Preset key: Long press for 3 seconds to save the current position to the corresponding preset position, shortly press to call the preset position, only available when Auto frame is closed.
- Page 10 4K UHD All-in One Video Camera 6. OSD Menu Layout: LANGUA ENGLISH/CHINESE PROTOCO Optional item:VISCA Default: VISCA SYSTEM ADDRESS VISCA:1~7 Default: 1 BAUDRAT 2400,4800,9600,115200 optional Default: 9600 RETURN Back to the main menu EXP.MODE AUTO/MANU Default: AUTO MODE Shutter speed:1/30~1/10000, only valid SHUTTER Default: 1/100 under MANU mode...
