Telycam TLC-1000-U2-DJ User Manual

Usb2.0 hd video camera

Advertisement

Quick Links

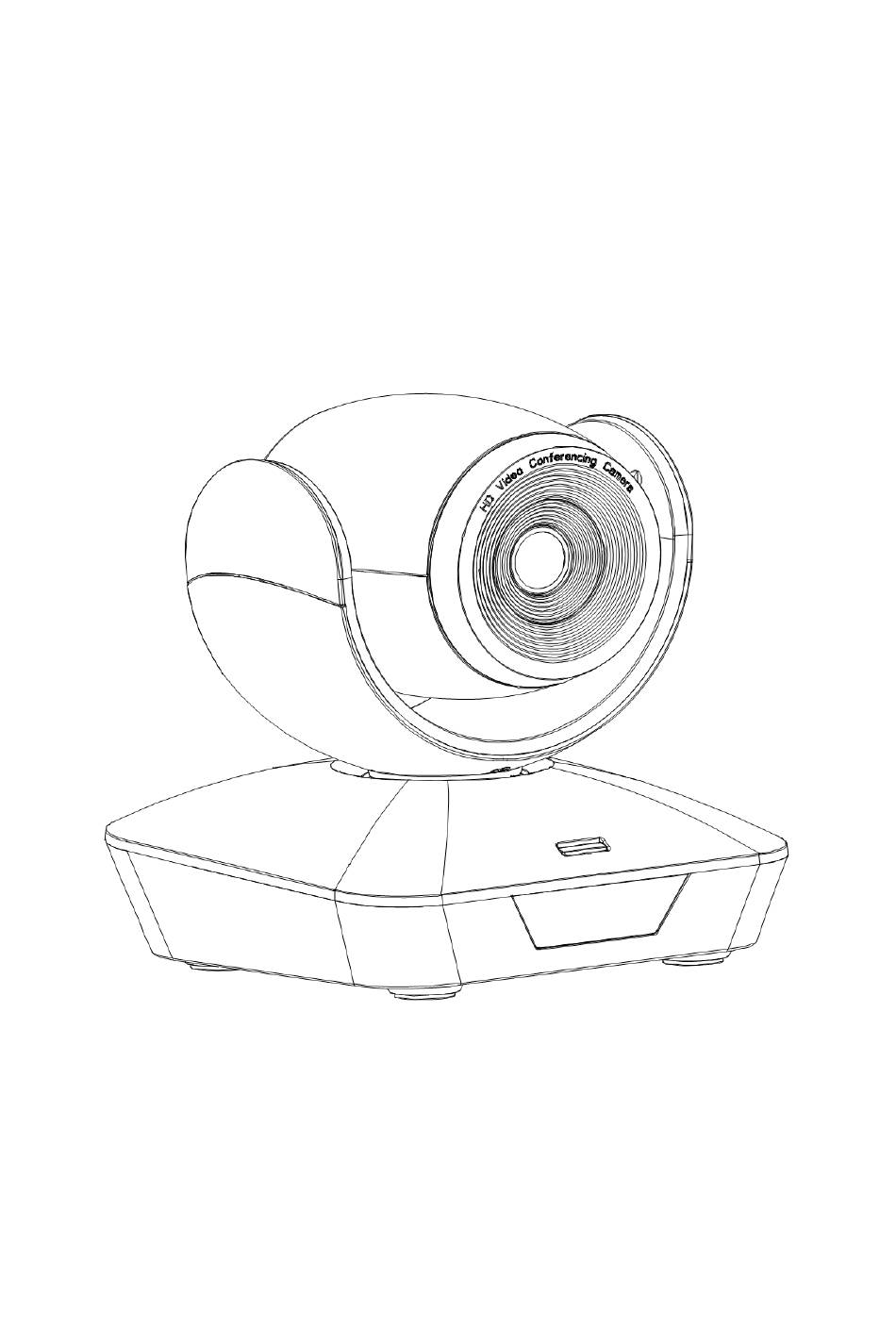

USB2.0 HD Video Camera
User Manual
Version V1.0
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC-1000-U2-DJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telycam TLC-1000-U2-DJ

  • Page 1 USB2.0 HD Video Camera User Manual Version V1.0 (English)...
  • Page 3: Table Of Contents

    CONTENTS CONTENTS ..........................错误!未定义书签。 SAFE GUIDES ..........................错误!未定义书签。 ACCESSORIES ........................... 错误!未定义书签。 QUICK START................................5 PRODUCT LIGHLIGHTS ......................错误!未定义书签。 PRODUCT SPEC ........................错误!未定义书签。 CAMERA INTERFACE ........................ 错误!未定义书签。 CAMERA DIMENSION ......................错误!未定义书签。 IR REMOTE ..............................7 LEARNING FUNCTION ....................... 错误!未定义书签。 VISCA IN(RS232) PORT ............................. 9 SERIAL CONFIGURATION ..........................
  • Page 4 SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 1.5A.
  • Page 5 DO NOT use hands to take the camera head, otherwise it may damage the camera rotation structure. DO NOT use hands to move the camera head, otherwise it may damage the rotation structure or even broke the driving motor.
  • Page 6: Accessories

    ACCESSORIES Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·...
  • Page 7: Product Lighlights

    PRODUCT HIGHLIGHTS  Adopts advanced DSP,1/2.7 inch 5.1MP image sensor, and high quality 4K wide angle lens  Smart and fashion design, ideal for cloud-based conferencing  Wide angle of viewing: 82.5degree, suitable for huddle room application  Fast switching between different video formats: less than 1 second ...
  • Page 8: Camera Interface

    CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9. 12VDC Power Input 2.Camera Base 6.Tripod Screw Hole 10. RS232/485Control Port(Input) 3. IR Receive Panel 7.Installation Hole 11.USB2.0 Port 4.Indicator Light 8. Power Indicator Light(Red) CAMERA DIMENSION(MM)
  • Page 9: Ir Remote

    IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;...
  • Page 10: Learning Function

    LEARNING FUNCTION: Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;...
  • Page 11: Visca Protocol

    Parameter Value Parameter Value Baud rate 2400/4800/9600/115200 Stop Bit 1bit Start Bit 1 bit Verify Bit None Date Bit 8 bit VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed.
  • Page 12 Command Funnation Command Packet Note 8x 01 04 35 04FF Manual 8x 01 04 35 05 FF Sodium Lamp 8x 01 04 35 08 FF Fluorescent lamp 8x 01 04 35 09 FF Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain...
  • Page 13 Command Funnation Command Packet Note Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Sharpness Control CAM_Sharpness Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain (0~0x04) Reset 8x 01 04 3F 00 pp FF pp: Preset Number(=0 to 127)
  • Page 14 Command Funnation Command Packet Note message via the VISCA communication 8x 01 7D 01 13 00 00 FF ON/OFF 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft...
  • Page 15 y0 50 03 FF CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_MemoryInq 8x 09 04 3F FF y0 50pp FF pp: Memory number last operated.
  • Page 16 EXPOSURE PARAMETER SHEET: 60/30mode 50/25mode close 1/10000 1/10000 1/6000 1/6000 1/3500 1/4000 F9.6 1/2500 1/3000 1/1750 1/2000 F6.8 1/1250 1/1500 F5.6 1/1000 1/1000 F4.8 1/600 1/725 1/425 1/500 Iris F3.4 1/300 1/350 Shutter F2.8 1/215 1/250 speed F2.4 1/150 1/180 1/120 1/125 F1.8...
  • Page 17 IRIS GAIN F1.8 +28 dB F1.8 +26 dB F1.8 +24 dB F1.8 +22 dB F1.8 +20 dB F1.8 +18 dB F1.8 +16 dB F1.8 +14 dB F1.8 +12 dB F1.8 +10 dB F1.8 +8 dB F1.8 +6 dB F1.8 +4 dB F1.8 +2 dB Bright...
  • Page 18: Pelco-D Protocol

    PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed...
  • Page 19: Pelco-P Protocol

    PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address...
  • Page 20: Osd Menu

    OSD MENU under working mode, press the menu button on the IR remote, to enter the OSD menu ; press the menu button again to exit and save modified parameters. 2. Use the navigate button to select the main menu. As above picture, once been selected, the main menu will change to grey color background, and the right side will show all parameters under this sub menu :;...
  • Page 21 LANGUAGE ENGLISH/CHINESE PROTOCOL VISCA,PELCO-P, PELCO-D Defaulted: VISCA SYSTEM ADDRESS VISCA:1~7 ;PELCO-P/D:0~255 Defaulted: 1 BAUD RATE 2400, 4800, 9600, 19200, 38400, 57600, 115200 Defaulted: 9600 RETURN Back to the main menu EXP. MODE AUTO, MANU, IRIS, SHUT, BRI. Defaulted:AUTO Shutter Speed: 1/30~1/10K Defaulted:1/100 SHUTTER (Only valid when EXP MODE set to MANU or SHUT mode)
  • Page 22 2D NR 2D Noise Reduction: OFF/ON Defaulted: OFF 3D NR 3D Noise Reduction: OFF/AUTO, 1~4 Defaulted: AUTO SHARPNESS Sharpness setting: 0~15; Defaulted: 4 the higher value, the clearer of image shape QUALITY CONSTRAST Contrast setting: 0~15 Defaulted: 9 SATURATION Saturation setting: 0~15 Defaulted:8 BRIGHT Brightness setting: 0~15...
  • Page 23: Ir Transfer(Ir Pass)

    IR TRANSFER(IR PASS) 1 IR transfer( IR Pass) function available by setting the SW3 and SW4( at the bottom of the camera). Currently the camera support NEC code. For customized with other code, pls contact us for adding. 2. Once the camera power on and finish configuration: if set to NEC code, can enable the IR transfer function via OSD menu or via serial command.
