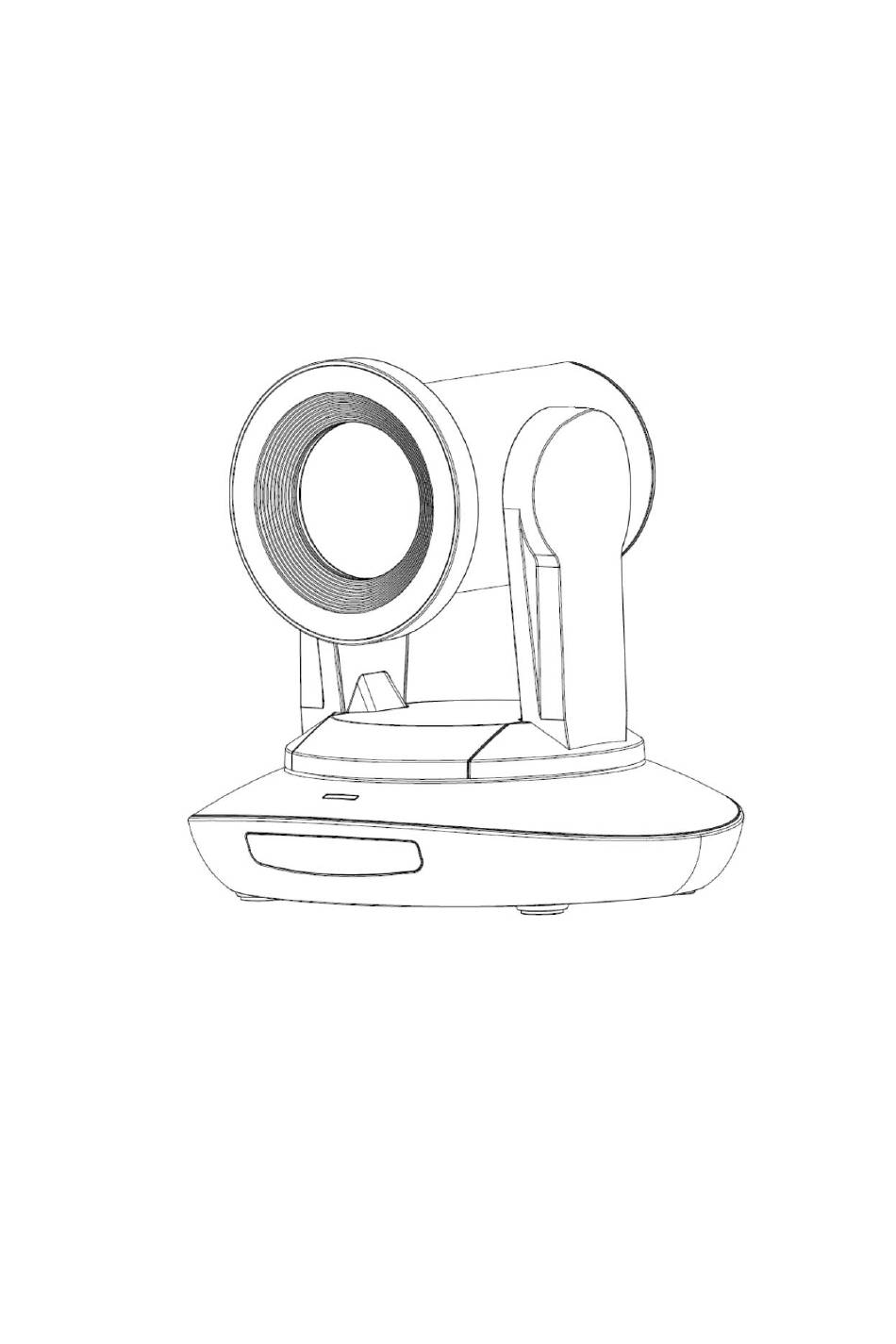

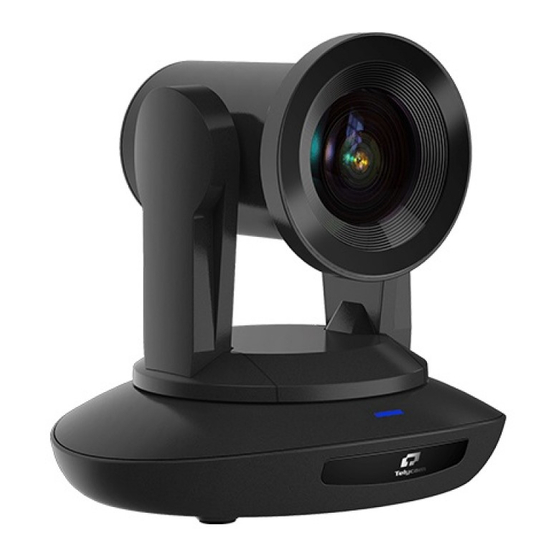

4K UHD PTZ Video Camera
User Manual
Version V1.1
（English）
J.BC.0205.0066

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC-700-IP-35-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telycam TLC-700-IP-35-4K

Summary of Contents for Telycam TLC-700-IP-35-4K

  • Page 1 4K UHD PTZ Video Camera User Manual Version V1.1 （English） J.BC.0205.0066...

  • Page 3: Table Of Contents

    CONTENT CONTENT........................................ 1 SAFETY GUIDES.......................................2 PACKING LIST......................................3 QUICK START......................................3 PRODUCT HIGHLIGHTS................................... 4 CAMERA SPEC......................................4 CAMERA INTERFACE....................................6 CAMERA DIMENSION..................................... 6 IR REMOTE CONTROLLER..................................7 VISCA IN（RS232 PORT)..................................9 VISCA PROTOCOL....................................10 PELCO-D PROTOCOL..................................... 19 PELCO-P PROTOCOL....................................20 OSD MENU......................................21 UVC CONTROL.......................................25 WEB SETTING.......................................

  • Page 4: Safety Guides

    SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A.

  • Page 5: Packing List

    PACKING LIST Check all bellow items when open the package: Camera······················································································1 Power Adapter ············································································· 1 Power Cable················································································ 1 RS232 Control Cable ······································································ 1 USB3.0 Cable··············································································· 1 Remote Controller·········································································1 User Manual··············································································· 1 Double-sided Adhesive··································································· 1 QC certification ············································································ 1 QUICK START 1.

  • Page 6: Product Highlights

    PRODUCT HIGHLIGHTS  Adopts most advanced ISP, 1/1.7 inch 12MP sensor, providing 3840x2160 p30 Ultra HD video resolution.  4K wide angle optical lens: 35x optical zoom, with 60 degree field of view.  4K video over IP, H.264, H.265 encoding. ...
  • Page 7 Control Port RS232, RS485, RJ45(VISCA over IP), USB3.0(UVC1.5), USB2.0(UVC1.1) Network Speed 1000M Video encode H.264/H.265 Bit Rate Control Variable Bit Rate, Constant Bit Rate Video Bit Rate 1024Kbps~51200Kbps IP Protocol TCP/IP, HTTP, RTSP, DHCP ,RTMP, Onvif Supported Daisy Chain Support RS232 serial daisy chain Minimum Lux 0.01lux White Balance...

  • Page 8: Camera Interface

    CAMERA INTERFACE 1.Camera Lens 6. Tripod Screw Hole 11. 3G-SDI port 2.Camera Base 7. Installation Hole 12. USB port 3.IR Receiver Panel 8. RS232 control port (input) 13. RJ45 port 4.Power Indicator Light 9. RS232 control port(output) 14. DC12V plug 5.Dial Switch 10.

  • Page 9: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE （Not Supported in USB）...
  • Page 10 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD. OK /HOME KEY Under working mode, short press OK to make the camera go back to HOME position;...

  • Page 11: Visca In（Rs232 Port)

    VISCA IN （RS232 PORT） Function VISCA IN RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Camera VISCA IN Windows DB-9 Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:...

  • Page 12: Visca Protocol

    VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a command with illegal Syntax Error z0 60 02 FF...
  • Page 13 Command type function command Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High) CAM_Focus Near (Variable) 8x 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF...
  • Page 14 Command type function command Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position (0~0x15) Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting(0~0xD) CAM_Iris Down 8x 01 04 0B 03 FF...
  • Page 15 0x01 1080I60 0x02 1080I50 0x03 1080P30 0x04 1080P25 0x05 720P60 0x06 720P50 0x07 VideoSystem 720P30 0x08 8x 01 06 35 00 pp FF Set(Telycam) 720P25 0x09 1080P5994 0x0E 1080I5994 0x0F 1080P2997 0x10 720P5994 0x13 720P2997 0x14 1080P24 0x11 1080P2398 0x12...
  • Page 16 Command type function command 1080P2398 0x2b 4K@30 0x1D 4K@25 0x1E CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) DHCP off 8x 01 04 AE 00 FF DHCP off DHCP control DHCP on 8x 01 04 AE 01 FF DHCP on 8x 01 04 AB 0p 0q 0r 0s 0m 0n 0x...
  • Page 17 Command type function command Menu On 8x 01 06 06 02 FF Turn on the menu Menu Off 8x 01 06 06 03 FF Turn off the menu SYS_Menu Menu Back 8x 01 06 06 10 FF Menu step back Menu Ok 8x 01 7E 01 02 00 01 FF Menu ok...
  • Page 18 CAM_DZoomPosiInq 8x 09 04 46 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_SpeedByZoomInq 8x 09 06 A0 FF y0 50 0p FF p 2: ON 3: OFF CAM_PTSpeedInq(IR) 8x 09 04 C1 FF y0 50 pp FF pp: 0x05~0x18 CAM_ZoomSpeedInq(IR) 8x 09 04 D1 FF...
  • Page 19 50 pp FF y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF VideoSystemInq(Telycam) 8x 09 06 23 FF y0 50 pp FF pp: Video format VideoSystemInq(Sony) 8x 09 04 24 72 FF...
  • Page 20 VISCA PAN TILT ABSOLUTE POSITION VALUE Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Pan(Degree/Second))

  • Page 21: Pelco-D Protocol

    PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 22: Pelco-P Protocol

    PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0...

  • Page 23: Osd Menu

    OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2, After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options.
  • Page 24 R GAIN Red gain level: 0~255, only valid under manual white balance mode Default：AUTO IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode Default：AUTO FLICK Anti-Flicker setting:50/60HZ, to reduce the video flicker Default：50HZ DZOOM ON/OFF Default：OFF FOCUS Select focus mode...
  • Page 25 FORMAT 1080P29.97 After selecting the system, press OK to switch the system. 1080P25 If it is the currently selected system, it will not be activated. 720P59.94 720P50 720P29.97 720P25 1080P60 1080P30 720P60 720P30 1080I60 1080P24 DHCP ON/OFF 192.168.001.188 MASK 255.255.255.000 Using up/down/left/right navigation button to select GW (Gateway) 192.168.001.001...
  • Page 26 FPGA VER FPGA firmware version CAM VER Camera version RELEASE Software release date Set IP Address in Menu In order to facilitate customer debugging, the camera has the support menu to set IP address. The specific methods are as follows: 1.Press "MENU"...

  • Page 27: Uvc Control

    UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3．Make sure the interval of video format switching more than 3 seconds, otherwise black video maybe caused.

  • Page 28: Web Setting

    WEB SETTING It is not necessary to install additional video player plug-in to preview the local screen on the web interface. At the same time, the browser can call Flash Player to preview the local video. The web interface supports Google Chrome, Firefox, IE, Safari, Opera, 360, QQ and other browsers, adaptability is very good. If you need to use Flash Player to play, please install Flash Player according to the following procedure.
  • Page 29 Preview interface as above image, on the right side, there are options to control camera pan, tilt, zoom, focus, presets, focus speed, zoom speed can be set. On the top of the image, main stream and sub stream preview can be selected, image width&height rate can be selected, and full size view can be selected.
  • Page 30 "video Transmission":RTMP settings are available, as shown in the following figure: “Image Parameter”can set focus, exposure, white balance, image, image quality, noise-reduction, as following picture. Focus including focus mode, default focal distance, digital zoom etc.
  • Page 31 Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Quality includes brightness, sharpness, contrast, saturation. Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet”...
  • Page 32 “Firmware upgrade”: it is for camera program upgrade, currently only for ISP part update. How to update: As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 5 min when upgrade finished. Then login web end to select “reset all”...

  • Page 33: View Rtsp Video Via Vlc

    VIEW RTSP VIDEO VIA VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming address:rtmp://192.168.1.188:1935/app/rtmpstream1 1, Run VLC Media Player. 2, Media->network stream, to enter into “open media” interface. 3, Input RTSP address in URL as following: 4, Click play to view the real time image.

  • Page 34: Visca Over Ip

    VISCA OVER IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: Control port: RJ45 Gigabit LAN  IP protocol: IPv4  Transmit protocol: UDP ...
  • Page 35 Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 0) Value (Byte 0) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA VISCA reply 0x01 0x11...
  • Page 36 Controlled reply  The following data is saved in return command payload of control command. Delivery confirmation VISCA over IP uses UDP as transmission communication protocol, UDP communication message transmission is not stable, it is necessary to confirm delivery and resent in application. Generally, when controller sends a command to peripheral equipment, controller will wait for the return message then send the next command, we can detect and confirm if the peripheral equipment receive the commands from return message’s lag time.
  • Page 37 Sequence chart as following Sequence chart when command lost Sequence chart when returned message lost Note: Do not set IP address, subnet mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
