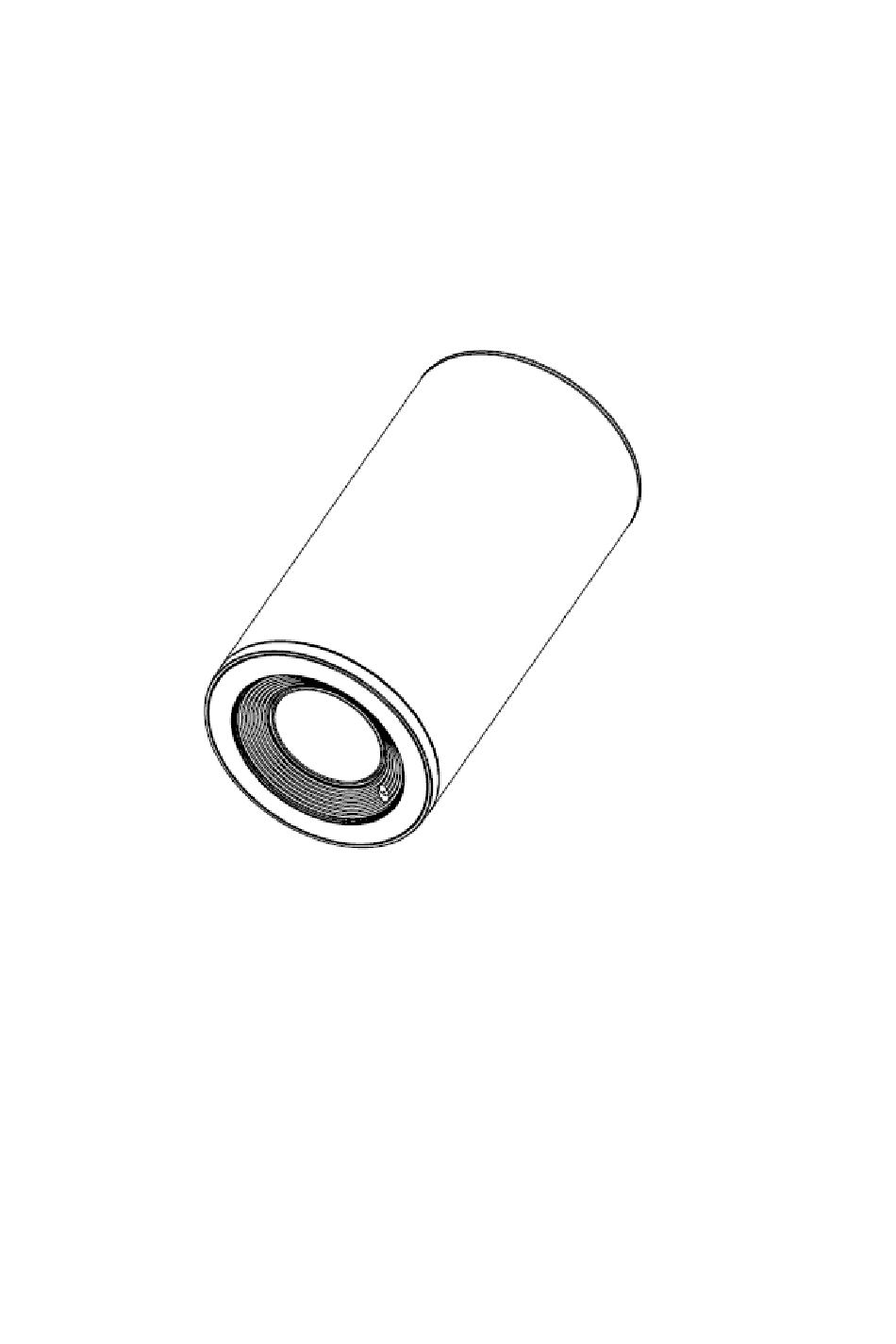

Page 1: User Manual
4K Ultra HD Zoom Camera User Manual Version V1.0 （English）... -
Page 3: Table Of Contents
CONTENT CONTENT ......................................1 SAFETY GUIDES ....................................2 PACKING LIST....................................... 4 QUICK START ....................................... 4 PRODUCT HIGHLIGHTS..................................4 CAMERA SPEC.....................................5 CAMERA INTERFACE .................................... 6 CAMERA DIMENSION ..................................6 IR REMOTE ......................................7 VISCA PROTOCOL ....................................9 OSD MENU ......................................15 SET IP ADDRESS VIA OSD MENU ............................... -
Page 4: Safety Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC (50-60Hz), ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A. -
Page 5: Packing List
PACKING LIST Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·... -
Page 6: Camera Spec
PRODUCT SPEC Sensor 1/2.5 inch, 8.51megapixel high quality CMOS Sensor 3G-SDI Main Stream: 1080p60/50/30/25; 3840*2160P15~30 720p60/50/30/25; Video Format 1080P15~30 1080i50/60; Sub Stream: 720P15~30 1024*576P15~30 640*360P15~30 Optical Zoom Digital Zoom Angle of Viewing 26.5°（near）~85°（far） Tele ：2.8 F.no. Wide：2 Min. Focus Distance Wide：0.3m Tele：1.5m Preset No. -
Page 7: Camera Interface
Video Encode H.264/H.265 Bit Rate Control Variable Bit Rate, Constant Bit Rate Video Bit Rate 1024Kbps~20480Kbps Frequency 15fps~30fps Supported Protocol TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP，VISCA, VISCA over IP Supported Input Voltage DC12V/POE(IEEE802.3af) Dimension（L x W x H ） 168.8 x 80 x 80 (MM) Net Weight 0.65KG CAMERA INTERFACE... -
Page 8: Ir Remote
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... - Page 9 LEARNING FUNCTION： Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;...
-
Page 10: Visca Protocol
VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Note Packet z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Note Packet Returned when the command format is different or when a command with illegal Syntax Error z0 60 02 FF... - Page 11 Command type function command Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Camera defaulted focus mode is Auto Focus 81 01 04 38 02 FF manual focus, but once zoom in/out, will active the auto focus; Manual Focus 81 01 04 38 03 FF user can save preset no.1 with...
- Page 12 Command type function command Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position (0~0x15) Reset 8x 01 04 0B 00 FF...
- Page 13 Command type function command CAM_2D Direct 8x 01 04 A5 0p FF p:0-OFF， 1-ON Noise Reduction 3D Noise Reduction Range: 0 – OFF CAM_3D 1 – AUTO Direct 8x 01 04 53 0p FF Noise Reduction 2-5：level Defaulted: 1 – AUTO 50HZ 81 01 04 AA 01 FF 50HZ...
- Page 14 Command type function command pqrs : Column(x size) mnxy: Line (y size) 8x 01 04 C3 00 0p 0q 0r 0s only support: resolution 0m 0n 0x 0y FF 1280*720 1024*576 640*360 Sub stream 8x 01 04 C3 01 0p 0q 0r 0s rate pqrsmnxy: bitrate (1024~10240) 0m 0n 0x 0y FF...
- Page 15 8x 09 04 C3 04 FF (5~120) y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF VideoSystemInq(Telycam) 8x 09 06 23 FF y0 50 pp FF pp: Video format y0 50 02 FF IR_Transfer...
-
Page 16: Osd Menu
OSD MENU Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2, After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options. - Page 17 GAMMA Gamma curve selection Default：0 RETURN Return to previous menu Optional: AUTO,INDOOR,OUTDOOR,MANUAL,OUTAUTO,SODIUM WB MODE Default：ATW LAMP AUTO ,SODIUM LAMP R GAIN Red gain level: 0~255, only valid under manual white balance mode. Default：AUTO IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode Default：AUTO DEFOG OFF, 1~15...
-
Page 18: Set Ip Address Via Osd Menu
CONTROL VER Camera control firmware version CONTROL DATE Camera control firmware releasing date FORMAT Current video output format INFO BAUD RATE Current RS232 baud rate IP ADDR Camera IP address NET MASK Current subnet mask RETURN Return to the previous menu SET IP ADDRESS IN MENU 1. -
Page 19: Web Setting
WEB SETTING Download and install Flash Player When visit IP camera via Internet Explore browser the first time, need to install Flash Player, we suggest user download it from flash official website to get latest version: https://www.flash.cn/english after installation, we will be able to see bellow via PC’s Programs and Features Control Panel: Login Run browser, input IP address( defaulted IP address is 192.168.1.188), to enter login interface, can select Language (Chinese or English), input admin and password to login as following:... - Page 20 Preview interface as above image, on the right side, there are options to control camera pan, tilt, zoom, focus, presets, focus speed, zoom speed can be set. On the top of the image, main stream and sub stream preview can be selected, image width&height rate can be selected, and full size view can be selected.
- Page 21 White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Setting includes brightness, sharpness, contrast, saturation Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet”...
- Page 22 “Firmware upgrade”: it is for camera program upgrade, currently only for ISP part update. How to update: As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 5 min when upgrade finished. Then login web end to select “reset all”...
-
Page 23: View Rtsp Video Via Vlc
Account Setting: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login. VIEW RTSP VIDEO VIA VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0... -
Page 24: Visca Over Ip
4, Click play to view the real time image. Note: If there is much image lag, select “more option” to enter into following setting, change buffer time smaller (VLC default buffer time is 1000ms). VISCA OVER IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec:... - Page 25 Command format: the following is message head and valid message format. Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 0) Value (Byte 0) VISCA command 0x01 0x00 Stores the VISCA command.
- Page 26 VISCA reply Save VISCA return packet VISCA device setting command Save VISCA equipment setting command packet. Control command The following data is saved in control command payload Controlled reply The following data is saved in return command payload of control command. Delivery confirmation VISCA over IP uses UDP as transmission communication protocol, UDP communication message transmission is not stable, it is necessary to confirm delivery and resent in application.
- Page 27 Sequence chart as following Sequence chart when returned message lost Sequence chart when command lost Note: Do not set IP address, subnet mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
