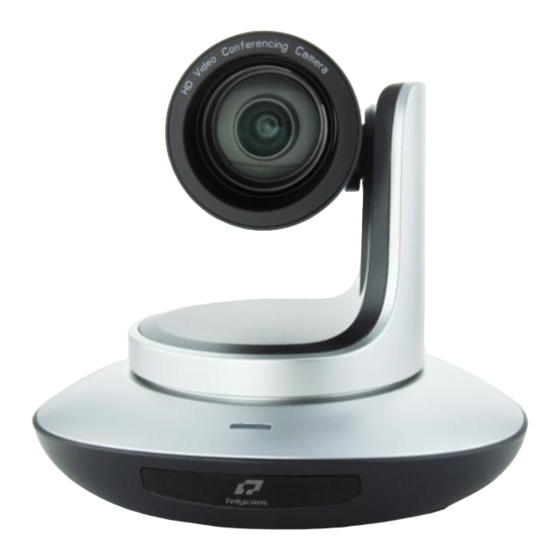

Telycam TLC-700-U3 User Manual

Telycam TLC-700-U3 User Manual

Usb3.0 hd video camera

Advertisement

Quick Links

TLC-700-U3
USB3.0 HD Video Camera
User Manual
Version V1.0
(English)
Copyright @ Telecam Technology Co.,Ltd. All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC-700-U3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telycam TLC-700-U3

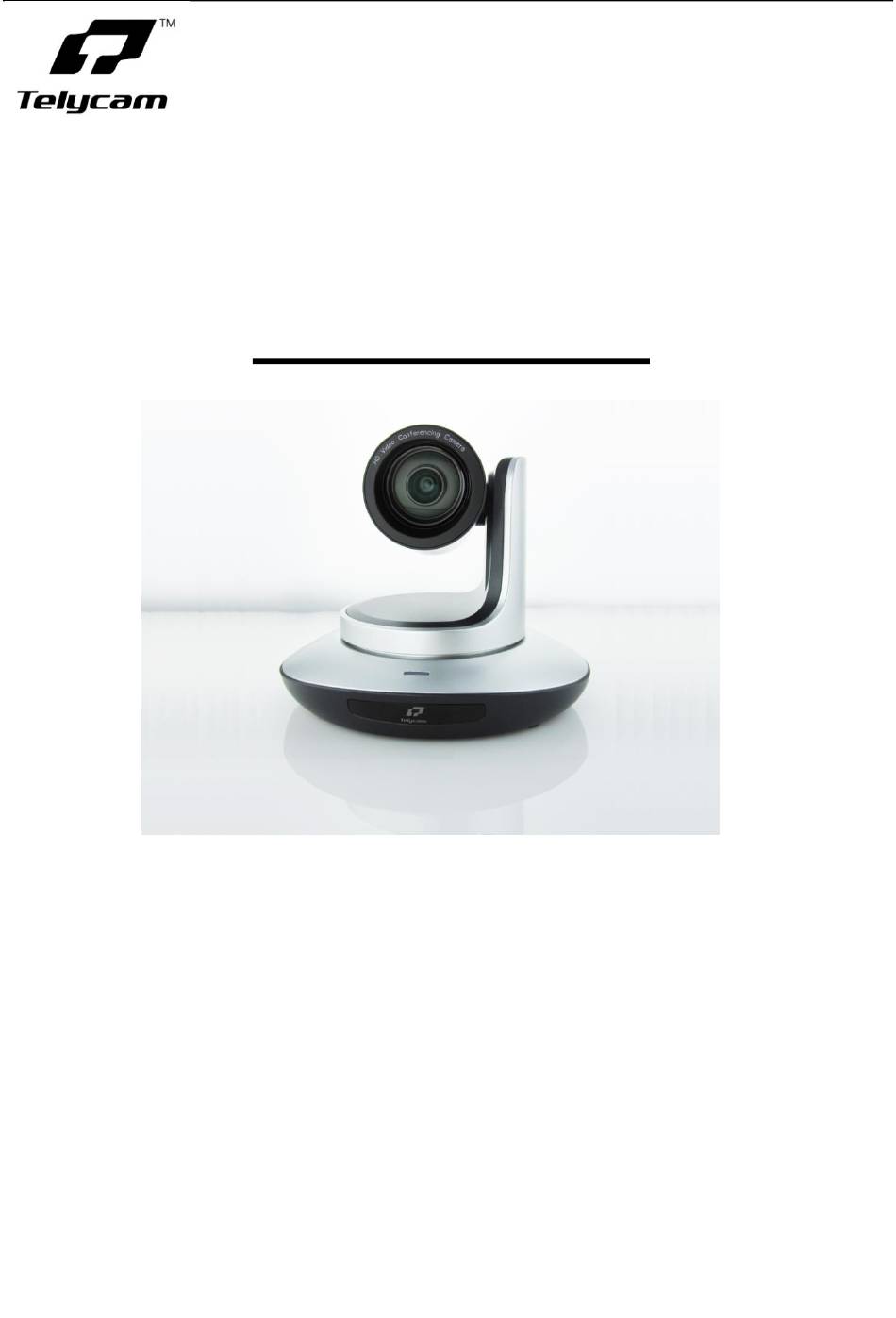

  • Page 1 TLC-700-U3 USB3.0 HD Video Camera User Manual Version V1.0 (English) Copyright @ Telecam Technology Co.,Ltd. All Rights Reserved...
  • Page 3 USB3.0 HD Video Camera User Manual Version V1.0 (English)...
  • Page 5: Table Of Contents

    Contents SAFETY GUIDES ..................................1 ACCESSORIES ....................................2 QUICK START ....................................2 PRODUCT HIGHLIGHTS................................3 CAMERA SPEC ..................................... 3 CAMERA INTERFACE ................................3 CAMERA DIMENSION ................................4 IR REMOTE CONTROLLER ..............................5 VISCA IN(RS232)PORT ................................7 VISCA PROTOCOL ..................................8 PELCO-D PROTOCOL ................................
  • Page 7: Safety Guides

    SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A.
  • Page 8: Accessories

    ACCESSORIES Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·...
  • Page 9: Product Highlights

    PRODUCT HIGHLIGHTS 1. Fashionable and smart design, with advanced DSP, 1/2.86 inch sensor, provides ultra crystal and smooth image. 2. 20X optical zoom & 12X digital zoom, specially designed for big rooms application. 2. DVI-I(HDMI) &USB3.0 simultaneously output. 3. Fast switching between different video format: only 3 seconds needed. 4.
  • Page 10: Camera Dimension

    CAMERA DIMENSION(mm)
  • Page 11: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, the camera will enter stand by mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE Short press FREEZE key to freeze/ unfreeze the image.( not work for USB3.0 camera) IRT(IR Transfer/IR Pass)
  • Page 12 FOCUS KEY( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD. OK /HOME KEY Under working mode, short press OK to make the camera go back to HOME position;...
  • Page 13: Visca In(Rs232) Port

    VISCA IN(RS232) PORT VISCA IN & RS485 Connection Function Camera VISCA IN RS485 A(+) A(+) IR OUT B(-) B(-) IR OUT VISCA IN & Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Mini DIN Camera VISCA IN Windows DB-9 A(+) A(+)
  • Page 14: Visca Protocol

    SERIAL PORT CONFIGURATION Parameter Value Parameter Value Baud rate 2400/4800/9600/115200 Stop Bit 1bit Start Bit 1 bit Check Bit None Date Bit 8 bit VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed.
  • Page 15 Command Function Command Packet Note 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain (0~0xFF) Reset 8x 01 04 04 00 FF 8x 01 04 04 02 FF Manual Control of B Gain CAM_Bgain Down...
  • Page 16 Command Function Command Packet Note 81 01 04 23 01 FF Freeze On 81 01 04 62 02 FF Freeze On Immediately Freeze Off 81 01 04 62 03 FF Freeze Off Immediately Freeze Preset Freeze On 81 01 04 62 22 FF Freeze On When Running Preset Preset Freeze Off 81 01 04 62 23 FF...
  • Page 17 Part 3 Inquiry Command Command Command Packet Return Packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusModeInq...
  • Page 18 y0 50 02 FF IR_Transfer 8x 09 06 1A FF y0 50 03 FF y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF y0 07 7D 01 04 00 FF Power ON/OFF y0 07 7D 01 04 07 FF Zoom tele/wide y0 07 7D 01 04 38 FF AF On/Off...
  • Page 19 VISCA Exposure Value NTSC F no. Value Value 1/10000(1/20000) 1/10000(1/20000) close 1/6000(1/12000) 1/6000(1/12000) 1/4000(1/8000) 1/3500(1/7000) 1/3000(1/6000) 1/2500(1/5000) F9.6 1/2000(1/4000) 1/1750(1/3500) 1/1500(1/3000) 1/1250(1/2500) F6.8 1/1000(1/2000) 1/1000(1/2000) F5.6 1/725(1/1450) 1/600(1/1200) F4.8 1/500(1/1000) 1/425(1/850) Iris 1/350(1/700) 1/300(1/600) F3.4 Shutter 1/250(1/500) 1/215(1/430) F2.8 speed 1/180(1/360) 1/150(1/300) F2.4...
  • Page 20 0x3B42 0x7AC0 0x3C47 0x3D25 0x3DDF 0x3E7B 0x3EFB 0x3F64 0x3FBA x20(tele) 0x4000...
  • Page 21: Pelco-D Protocol

    PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed...
  • Page 22: Pelco-P Protocol

    PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address...
  • Page 23: Osd Menu

    OSD MENU 1.Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow shows: 2.After enter the main menu, use the navigate key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options .
  • Page 24 White Balance: AUTO、INDOOR、OUTDOOR、MANUAL、ONEPUSH、 WB MODE R GAIN Red gain level: 0~255, only valid under manual white balance mode. IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode. COLOR G Color gain setting: 0~14 FLICK Anti-Flicker setting:ON/OFF, to reduce the video flicker 2D noise reduction:0~5, the bigger value, the less noise on image, the lower 2D NR resolution...
  • Page 25: Ir Transfer(Ir Pass)

    CAM VER Camera version RELEASE Software release date IR TRANSFER(IR PASS) 1 IR transfer( IR Pass) function available by setting the SW3 and SW4( at the bottom of the camera). Currently the camera support NEC and SEJIN 4PPM code. For customized with other code, pls contact us for adding: Dial Switch(IR CODE TYPE)...
  • Page 26: Uvc Control

    UVC CONTROL 1. Only run the client software after the USB3.0 HD camera has completed self-configuration(the IR indicator in blue color and will not flash); If run the software before the camera configuration finishes, may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. In case the PC does not recognize the camera(with warning of “MFG”), following bellow steps: 1).Go to Device Manager.
