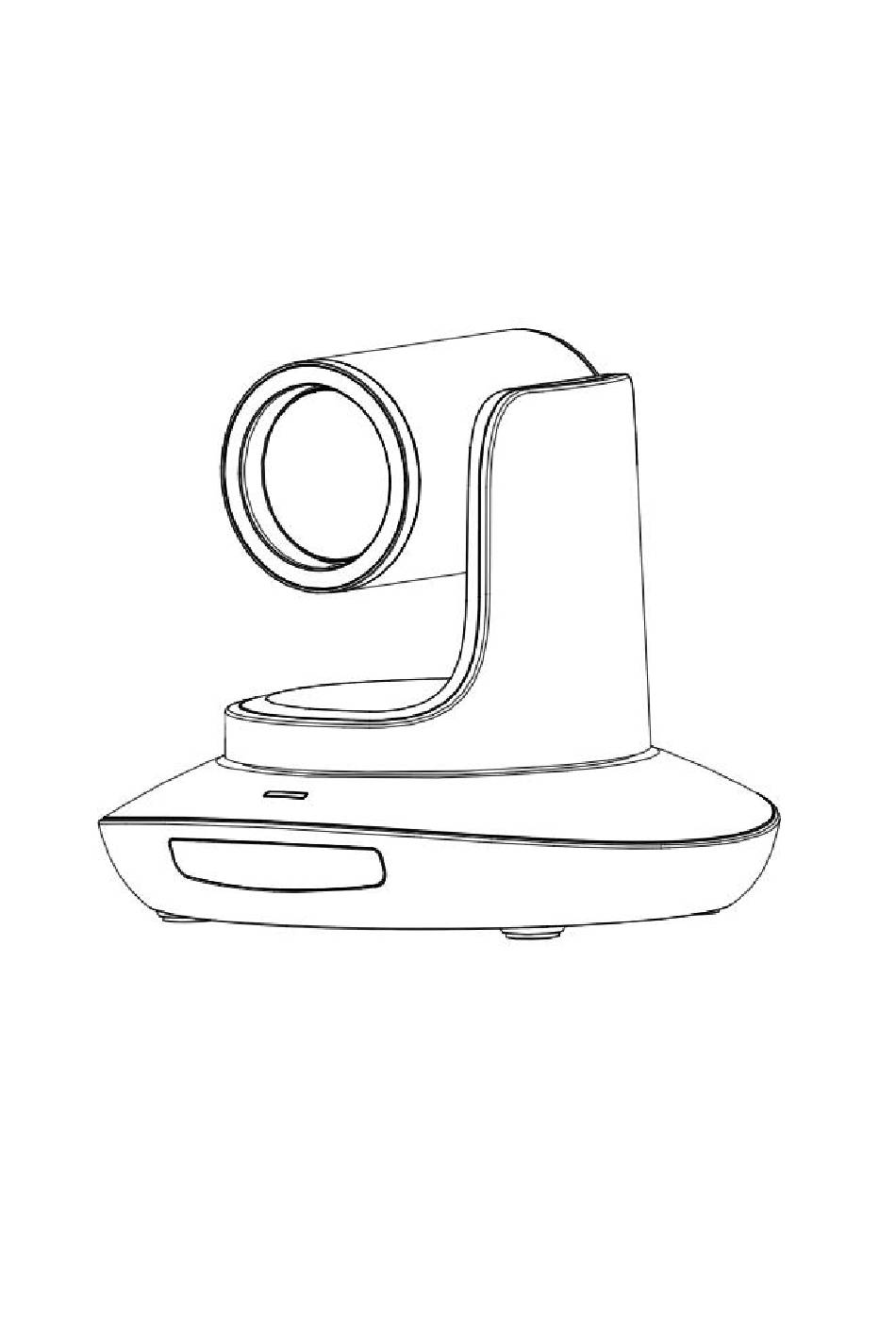

- Page 1 USB2.0 HD Video Camera User Manual Version V1.1 （English） J.BC.0205.0041...
-
Page 3: Table Of Contents
CONTENTS SAFE GUIDES……………………...………………………………..........…2 ACCESSORIES..…………………………………………………………........2 QUICK START...........................3 PRODUCT HIGHLIGHTS.........................4 PRODUCT SPEC..........................5 CAMERA INTERFACE........................6 CAMERA DIMENSION........................6 IR REMOTE CONTROLLER......................7 VISCA IN(RS232) PORT........................9 VISCA PROTOCOL........................10 PELCO-D PROTOCOL........................16 PELCO-P PROTOCOL........................17 IR TRANSFER(IR PASS).......................18 OSD MENU............................18 UVC CONTROL..........................22... -
Page 4: Safe Guides
SAFETY GUIDES 1. Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2. The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. -
Page 5: Quick Start
QUICK START 1. Check all cable connections before power on. 2. DIP Switch Setting (at the bottom of the camera): Function（ARM） SW-1 SW-2 Instruction Updating mode Debugging mode Undefined Working mode Function （IR CODE TYPE） SW-3 SW-4 Instruction Off(Close IR receiver) Undefined SEJIN 4PPM CODE NEC CODE(standard) -
Page 6: Product Highlights
PRODUCT HIGHLIGHTS • Smart and fashion design, ideal for cloud-based conferencing • Adopts advanced DSP，1/2.8 inch 5MP image sensor, and high quality 12X 72.5degree FOV optical lens, provides fluent and crystal image quality • Fast switching between different video formats: less than 1 second •... -
Page 7: Product Spec
PRODUCT SPEC Video Format MJPG 1080P30, 720P30, 640*480P30 Video Port USB2.0 Sensor 1/2.8 inch high quality 5MP CMOS sensor Lens F3.92~47.32mm(12X), F1.8~14, Field of view: 72.5° (wide)~6.3° (tele) Pan/tilt Rotation Pan:± 170° ; Tilt:-30° ~+90° , support up-side down installation Pan/tilt Speed Pan: 0.1°... -
Page 8: Camera Interface
CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9.USB2.0 Port 2.Camera Base 6. Tripod Screw Hole 10.DC12V Power Input 3.IR Receiver Panel 7.Installation Hole 11.Power Indicator light(red) 4.Indicator Light 8.RS232(VISCA IN) Port CAMERA DIMENSION(MM) -
Page 9: Ir Remote Controller
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... - Page 10 LEARNING FUNCTION： 1. Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2. Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;...
-
Page 11: Visca In(Rs232) Port
VISCA IN (RS232) PORT Function IR OUT VISCA IN &RS485 Connection VISCA IN &DB9 Connection Camera VISCA IN RS485 Camera VISCA IN Windows DB-9 A(+) A(+) A(+) IR OUT IR OUT B(-) B(-) B(-) SERIAL PORT CONFIGURATION: Parameter Value Parameter Value Baud rate 2400/4800/9600/115200... -
Page 12: Visca Protocol
VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a command with illegal Syntax Error z0 60 02 FF... - Page 13 Command Funnation Command Packet Note Manual 8x 01 04 35 05 FF Outdoor Auto 8x 01 04 35 06 FF Sodium Lamp 8x 01 04 35 07 FF Auto Sodium Auto 8x 01 04 35 08 FF Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain...
- Page 14 Command Funnation Command Packet Note 8x 01 04 33 02 FF BackLight On CAM_BackLight 8x 01 04 33 03 FF BackLight Off Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain (0~0x04)
- Page 15 Command Funnation Command Packet Note 8x 01 06 01 VV WW 03 03 Stop 8x 01 06 02 VV WW AbsolutePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z 8x 01 06 03 VV WW RelativePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z Home 8x 01 06 04 FF Reset...
- Page 16 CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 02 FF y0 50 03 FF CAM_PictureFlipInq 8x 09 04 66 FF y0 50 02 FF y0 50 03 FF CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID y0 50 ab cd CAM_VersionInq...
- Page 17 60/30mode 50/25mode 1/10000 close 1/10000 1/6000 1/6000 1/3500 1/4000 1/2500 1/3000 F9.6 1/1750 1/2000 1/1250 F6.8 1/1500 1/1000 1/1000 F5.6 1/600 F4.8 1/725 1/425 1/500 Iris 1/350 1/300 F3.4 Shutter 1/215 F2.8 1/250 speed 1/150 1/180 F2.4 1/120 1/125 1/100 F1.6 1/100 1/75...
-
Page 18: Pelco-D Protocol
PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed... -
Page 19: Pelco-P Protocol
PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address... -
Page 20: Ir Transfer(Ir Pass)
IR TRANSFER(IR PASS) 1. Currently the camera support NEC code format. For customized with other codes, pls contact us. 2. Once the camera finish power configuration, enable the IR transfer function via sending COM command. 3. Get the targeted remote controller point to the camera IR receiver, press keys on the remote controller, then the camera will output the received IR code via VISCA IN port. - Page 21 4. Select the last option “return” and press the right navigate button to get back to previous menu. 5. Press OSD button again to exit the menu. 6. OSD Menu List& Defaulted Setting. LANGUAGE ENGLISH/CHINESE PROTOCOL VISCA/PELCO-P/PELCO-D Default: VISCA ADDRESS VISCA:1~7 PELCO-P/D:1~7 Default: 1...
- Page 22 SLOW SHUT Slow shutter set: OFF/ON Default: OFF FLICK 50HZ/60HZ/OFF Default: 60HZ RETURN Return to previous menu BRIGHTNESS Set brightness value: 0~15 Default: 8 SHARPNESS Set sharpness value:：0~15 Default: 3 CONSTRAST Set contrast value: 0~15 Default: 8 SATURATION Set saturation value: 0~15, the higher value, the stronger color Default: 9 PICTURE MIRROR...
- Page 23 D/N MODE Set D/N mode: DAY/NIGHT/AUTO Default: DAY DAY TO NIGHT Set day to night brightness threshold value Default: 200 NIGH TO DAY Set night to day brightness threshold value Default: 25 D/N MODE Set switch delay between different mode, to avoid repeat switching SWITCH DELAY Default: 1 under AUTO mode: 1~60s...
-
Page 24: Uvc Control
UVC CONTROL Control Requests Control Selector Brightness Control PU_BRIGHTNESS_CONTROL Contrast Control PU_CONTRAST_CONTROL Hue Control PU_HUE_CONTROL Saturation Control PU_SATURATION_CONTROL Sharpness Control PU_SHARPNESS_CONTROL PU_GAMMA_CONTROL Gamma Control White Balance Temperature Control PU_WHITE_BALANCE_TEMPERATURE_CONTROL Gain Control PU_GAIN_CONTROL Power Line Frequency Control PU_POWER_LINE_FREQUENCY_CONTROL Zoom (Absolute) Control CT_ZOOM_ABSOLUTE_CONTROL Zoom (Relative) Control CT_ZOOM_RELATIVE_CONTROL...
