Scroll compressors, DSG240 to DSG480 | Product identi cation

Product identi cation

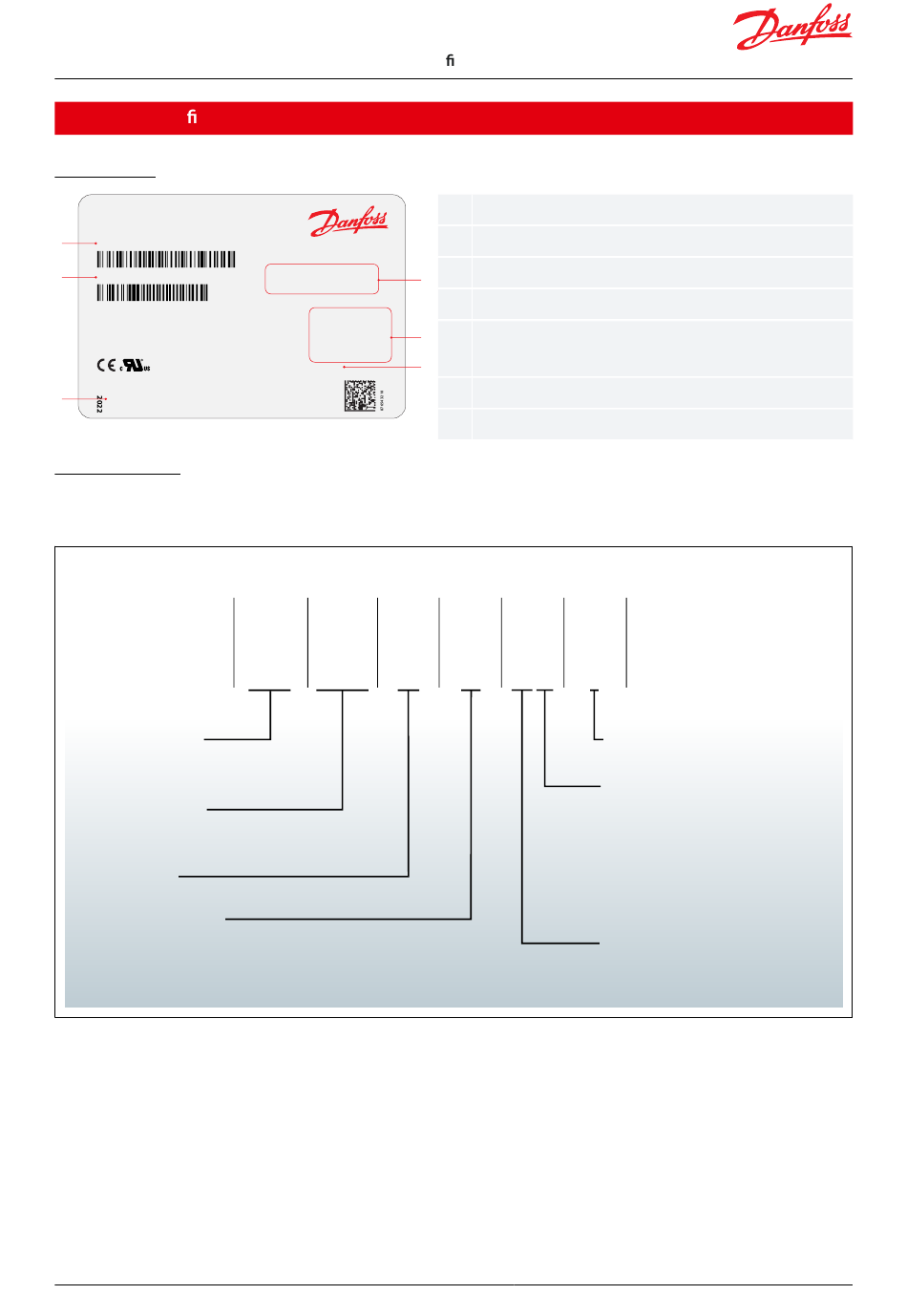

Name Plate

Compressor
DSG480A4ABA
Model no :
1
ZK1198782797
2 Serial no :
0094
4
Refrige rant: R1234ze(E), R515B
PROTECTED BY DOMESTIC AND FOREIGN PATENTS

Nomenclature

The example below presents the compressor nomenclature which equals the technical reference as shown on the
compressor nameplate. Code numbers for ordering are listed in section Ordering codes.
Family, lubricant
& refrigerant
DSG: Scroll, POE lubricant,
R1234ze(E), R515B
Nominal capacity
in thousand Btu/h at 60 Hz
ARI conditions
Motor index
Motor voltage code
4: 380-415 V/3~/50Hz 460 V/3~/60 Hz
© Danfoss | Climate Solutions | 2023.01
MADE IN FRANCE
L
380 - 415V 3 ~ 50 Hz
460 V 3 ~ 60 Hz
LR 391,0A MAX OPER. 81,0 A
Thermally protected system
P.E.D.
LP side HP side
Marking
PS 9.5 bar 17.6 bar
TS max 52.0 °C 150 °C
TS min -35.0 °C -35.0 °C
Volume 31.6 L 6.2 L
Lubricant: P.O.E. 160SZ
Family, Nominal Approvals
lubricant capacity
& refrigerant
DSG 480 A
1 Model number
2 Serial number
3 Approvals
5
4 Refrigerant
5 Supply voltage, Starting current & Maximum
6
operating current
7
6 Housing service pressure
7 Factory charged lubricant
Voltage Version Evolution
index
4 AB A
Evolution index
A~Z
Motor protection
A: Electronic module, 24 V AC,
B: Electronic module, 110 – 240 V,
Suction and discharge connections
A: Brazed connections
