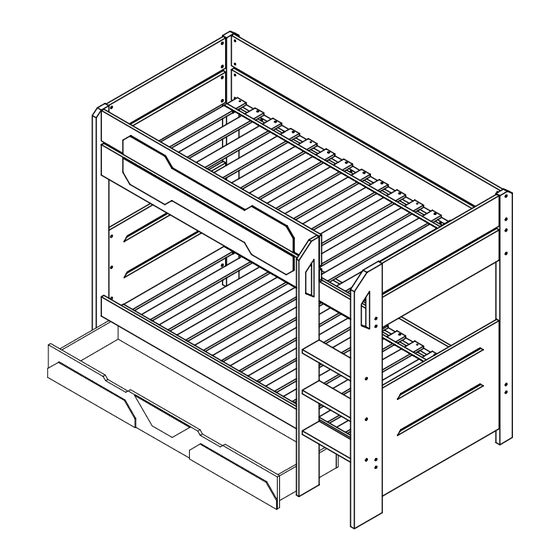

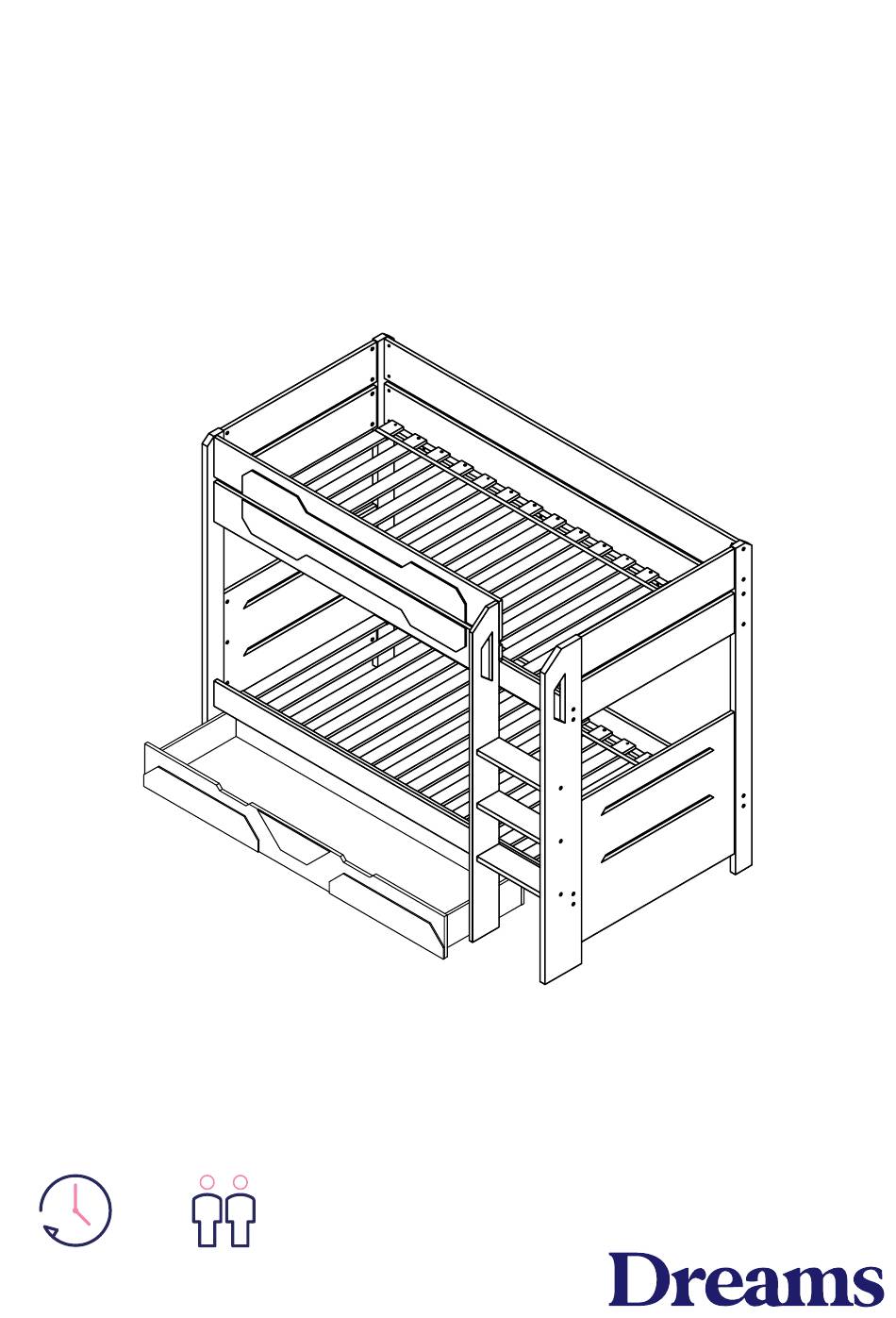

- Page 1 Battalion Bunk Bed With Drawer 1 hour 15min approx Two person assembly time assembly...
- Page 2 Always lift the bed with two people to reposition. Keep any sharp objects away from the frame. Recommended maximum mattress height for top bunk is 160mm. Battalion Bunk Bed With Drawer - Assembly Guide - Page 2 Battalion Bunk Bed With Drawer - Assembly Guide - Page 2...
-
Page 3: Assembly Tips
Thank you Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best ever night's sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. -
Page 4: Parts List
Back Panel Side Rail - Upper Rear Bottom Support Rail Guard Panel - Front With Castor Hole Side Rail - Upper Front Bottom Panel Side Rail - Lower Front Battalion Bunk Bed With Drawer - Assembly Guide - Page 4... - Page 5 D Leg - Right Front x1 K Side Rail - Lower Front x1 Side Rail - Lower Rear x1 E Leg - Left Front & Right Rear x2 Leg - Left Rear x1 Battalion Bunk Bed With Drawer - Assembly Guide - Page 5...
- Page 6 N Ladder Stretcher x3 S Back Pnale x1 O Slat x2 Bottom Support Rail With Castor Hole x4 P Support Rail x4 Q Front Panel x1 U Bottom Panel x1 Battalion Bunk Bed With Drawer - Assembly Guide - Page 6...
-
Page 7: Tools Required
8 pcs 16 pcs 16 pcs Roller Wood Screw 3.5x16mm Minifix Cam 15x12mm 10 10 Tools required Please check you have all these below: Cross head Flathead screwdriver screwdriver Battalion Bunk Bed With Drawer - Assembly Guide - Page 7... -
Page 8: Bed Assembly
Bed Assembly 1 hour approx assembly time... - Page 9 Minifix Bolt 32mm *Screw Driver 32 pcs Not Included Wood Dowel 10x30mm 28 pcs Battalion Bunk Bed With Drawer - Assembly Guide - Page 9...
- Page 10 Miniftix Cam 15x15mm 32 pcs Wooden Dowel 10x30mm 34 pcs Battalion Bunk Bed With Drawer - Assembly Guide - Page 10...
- Page 11 JCBC M6 x 60mm Barrel Nut M6 x 13mm Allen Key M4 6 pcs 6 pcs 1 pc *Screw Driver Not Included Battalion Bunk Bed With Drawer - Assembly Guide - Page 11...
- Page 12 Not Included JCBC M6 x 60mm 20 pcs Barrel Nut M6 x 13mm 20 pcs Allen Key M4 1 pc Handy tip Part I to be assembled in step 12 Battalion Bunk Bed With Drawer - Assembly Guide - Page 12...
- Page 13 JCBC W M6 x 28mm Allen Key 1 pc 16 pcs JCBC - W M6 x 28mm Allen Key M4 16 pcs 1 pc Battalion Bunk Bed With Drawer - Assembly Guide - Page 13...
- Page 14 Wood Screw 4.0 x 28mm *Screw Driver 44pcs Not Included JCBC M6 x 60mm Barrel Nut M6 x 13mm JCBC M6 x30mm Allen Key M4 2 pcs 2 pcs 5 pcs 1 pc Battalion Bunk Bed With Drawer - Assembly Guide - Page 14...
-
Page 15: Drawer Assembly
Drawer Assembly 15min approx assembly time... - Page 16 Minifix Bolt 32mm *Screw Driver 16pcs Not Included Minifix Cam 15 x 12mm Wood Dowel 8 x 30mm *Screw Driver 4 pcs 4 pcs Not Included Battalion Bunk Bed With Drawer - Assembly Guide - Page 16...
- Page 17 Roller Wood Screw 3.5 x 16mm *Screw Driver 8 pcs 16 pcs Not Included Battalion Bunk Bed With Drawer - Assembly Guide - Page 17...
- Page 18 Minifix Cam 15 x 12mm *Screw Driver 4pcs Not Included Minifix Ccam 15 x 12mm Wood Dowel 8 x 30mm *Screw Driver 8 pcs 4 pcs Not Included Battalion Bunk Bed With Drawer - Assembly Guide - Page 18...
- Page 19 COMPLETE Battalion Bunk Bed With Drawer - Assembly Guide - Page 19...
-
Page 20: Care And Maintenance
Over a period of time, the wood might lighten or fade slightly due to light exposure. Thank you for shopping with us - we hope you have a great night's sleep Battalion Bunk Bed With Drawer - Assembly Guide - Page 20... - Page 21 Little dreamers Keep the little ones entertained while you assemble your new purchase.
