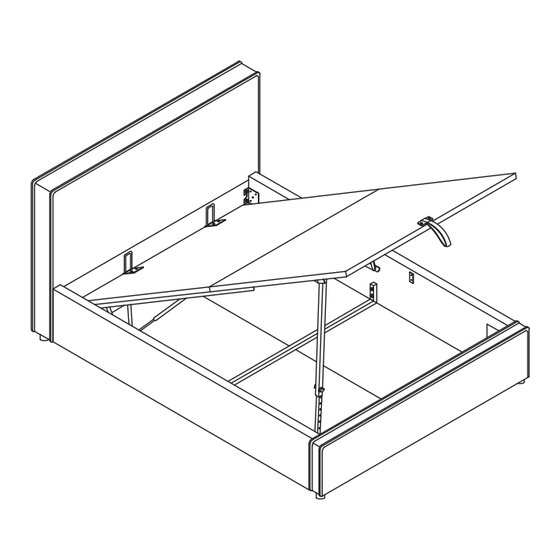

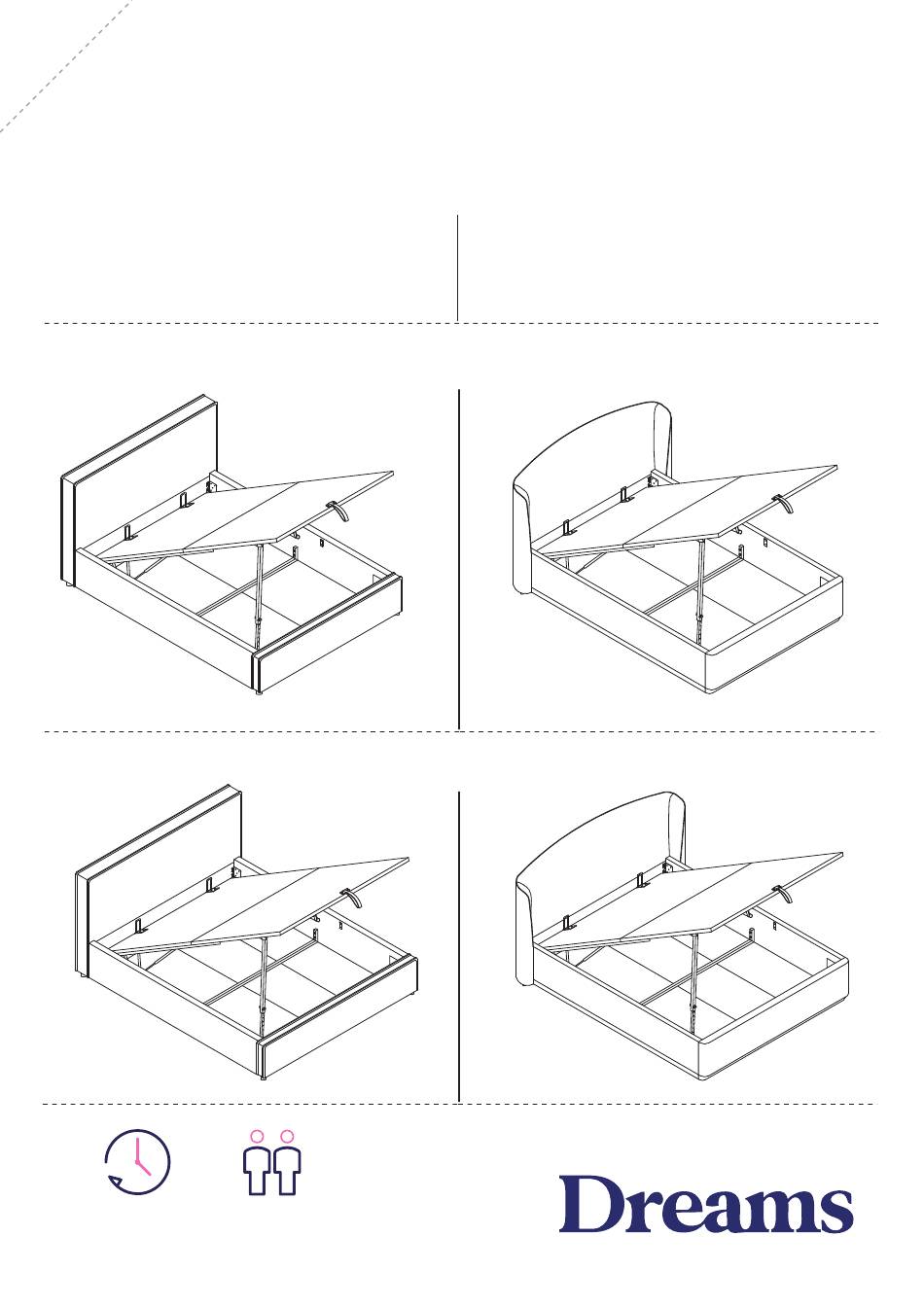

  • Page 1 Ottoman Storage Bed with Solid Mattress Base Board Chloe Bethany Double & King Size Super King Size 1.5 hour approx Two person assembly time assembly MK1 230405...
  • Page 2 • Do not attempt to lie on the mattress when the ottoman is in the raised position. • When lifting the ottoman, remove all bedding except the fitted sheet. Bethany & Chloe Ottoman Bed - Safety Warnings - Page 2...
  • Page 3 Maximum storage height is 23 cm. WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW! Bethany & Chloe Ottoman Bed - Safety Warnings - Page 3...
  • Page 4 Do not sit on the mattress whilst the platform is in motion or is in the raised position. o Users should only get in and out of bed when platform is in the flat (horizontal) position. Bethany & Chloe Ottoman Bed - Assembly guide - Page 4...
  • Page 5: Assembly Tips

    Thank You Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you your best ever night’s sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages.
  • Page 6: Parts List

    Ottoman support bar PACK (O.S.B.) Feet for Storage Base Boards 32/48 3B Ottoman support bar Double & King/Super King Side Rail Cross Bar Fixed retaining bracket - side rail Mattress Stoppers Parking bracket - slat-frame Bethany Ottoman Bed - Assembly guide - Page 6...
  • Page 7: Tools Required

    Flat washers for M8 bolts Q x1 P x1 Tools required Fixed retaining bracket Parking bracket - slat frame - side rail Tape measure Cross head screwdriver 1 1 0 0 Bethany Ottoman Bed - Assembly guide - Page 7...
  • Page 8 BETHANY Prepare headboard & footboard. Fit the four feet (E) to headboard & footboard. Fit both side rails (C&D). & & Do not tighten bolts 100% yet. Bethany Ottoman Bed - Assembly guide - Page 8...
  • Page 9 Prepare the storage base boards - fit the eight plastic glides (I) to the velcro pads underneath each board. Double & King H x4 H x4 Super King S x6 S x6 Bethany Ottoman Bed - Assembly guide - Page 9...
  • Page 10 (largest diameter) is at the top. Fit the piston stems to upper axles using lock nuts (h) Do not tighten these nuts 100%. yet PLEASE CARRY ON THE ASSEMBLY FOR BETHANY, FROM STEP (7) Bethany Ottoman Bed - Assembly guide - Page 10...
  • Page 11 Parts for Chloe Storage Bed Important information The bed you have purchased comes complete with it's own solid mattress base board set, please follow the instructions below in the current order. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages.
  • Page 12 Fittings for Chloe Please check you have all the parts listed below with your product: Hardware needed for fixing side rails to headboard & footboard Packed in side rail carton, inside Pack 2 - hardware pack (A) e x4 d x1 Double &...
  • Page 13 CHLOE Prepare headboard & footboard & fit side rails (C & D) . & & Do not tighten any bolts yet. Align & fit the wooden plinths (E) to each side rail. Please note that the dowel holes should be at this end of each side plinth.
  • Page 14 Align & fit the wooden plinth (R) to the footboard. Put dowels (n) into the holes at each end of plinth (R). n x2 On the end of each side rail plinth, slide in the four dowels. iii) Using bolt sets (p & q) bolt plinth (R) to the footboard, Do not tighten 100% yet.
  • Page 15 Prepare the storage base boards - fit the eight plastic glides (I) to the velcro pads underneath each board, then slide the boards into place. Double & King H x4 H x4 Super King S x6 S x6 Fit the cross bar (J) to side rails (C & D). &...
  • Page 16 (h) Do not tighten these nuts 100%. PLEASE CARRY ON THE ASSEMBLY FOR CHLOE, FROM STEP (7) Fitting the Solid mattress base boards to either Bethany or Chloe. Prepare the solid mattress base boards Double & King...
  • Page 17 Super King e x4 b x4 c x4 Carefully screw in the threaded studs until they stop. f x6 Head end Foot end Bethany & Chloe Ottoman Bed - Assembly guide - Page 17...
  • Page 18 (c, b, & i), fix mattress base board loosely to the bars. Bolt into centre of long holes iii) Tighten all six nut sets 100% using tube spanner (n). Bethany & Chloe Ottoman Bed - Assembly guide - Page 18...
  • Page 19 - better to do the bracket is level and at the this AFTER the mattress is fitted. correct height. Please do not tighten 100% yet. Bethany & Chloe Ottoman Bed - Assembly guide - Page 19...
  • Page 20 Set the inner stem to the correct length so the end just touches the retaining bracket - it needs to touch to hold it in position. 100% Adjust the retaining bracket (P) so the stem end scrapes the surface. Bethany & Chloe Ottoman Bed - Assembly guide - Page 20...
  • Page 21 Ottoman Piston Rating Double: 900 N King: 1000 N Super King: 1200 N 37.5 29.5 Floor to top of mattress board Top of mattress board to top of side rail Bethany & Chloe Ottoman Bed - Assembly guide - Page 21...
  • Page 22: Care And Maintenance

    Thank you for shopping with us - we hope you have a great night's sleep - Care and maintenance guide - Page 22 Bethany & Chloe Ottoman Bed...
  • Page 23 Little dreamers Keep the little ones entertained while you assemble your new purchase.
