Summary of Contents for DREAMS Foley TV Bed

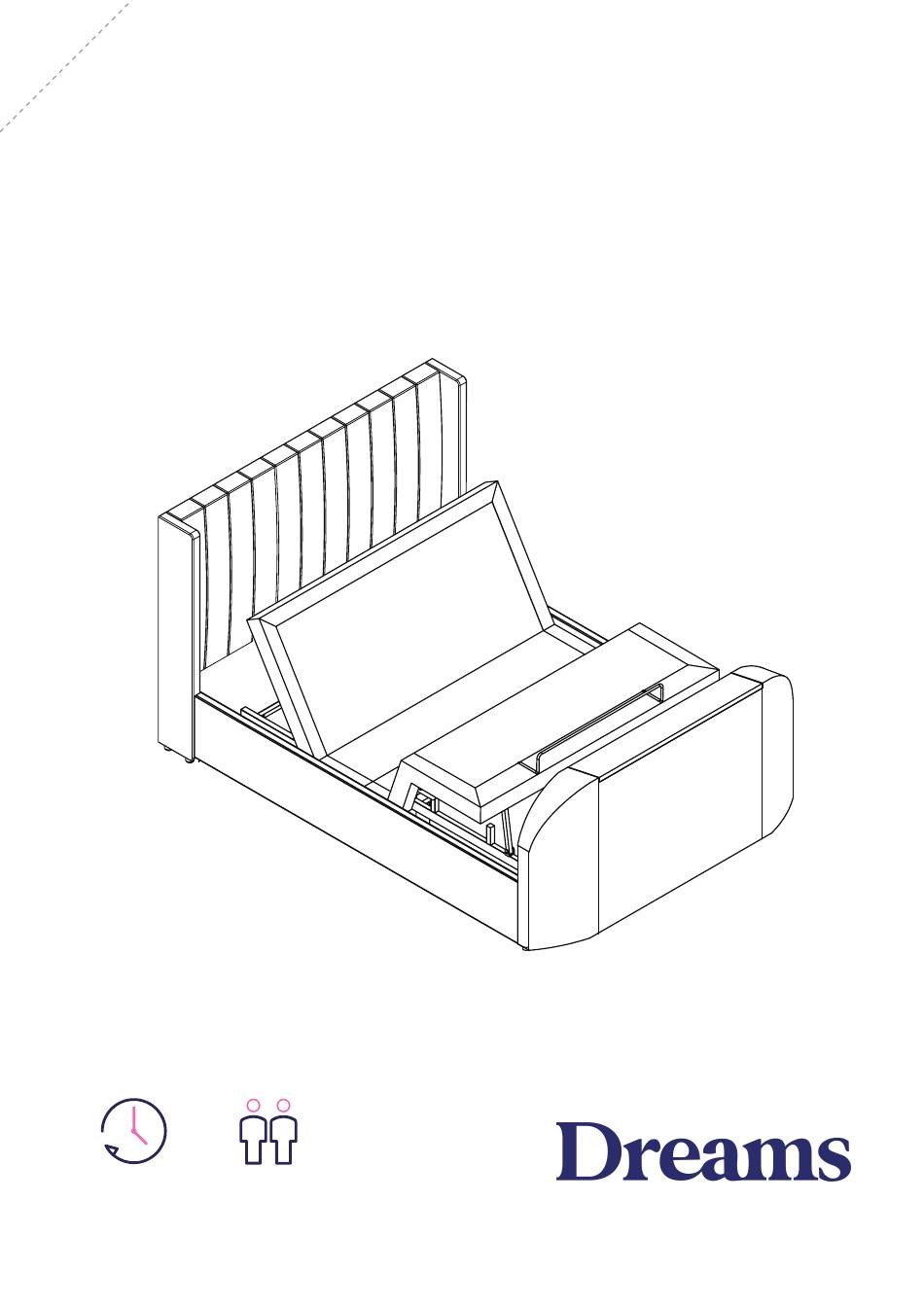

- Page 1 Foley TV Bed Sleepmotion Lifestyle 1.5 hour approx Two person assembly time assembly MK1 230916...
-
Page 2: Assembly Tips
Thank You Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you your best ever night’s sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. -
Page 3: Parts List
Parts The bed you have purchased comes with a Sleepmotion 200i Lifestyle electric bed base. Once the base is built, place it in the location where it shall be used then please follow the steps in this Assembly Instruction to build your bed-frame around the base disregarding the assembly guide packed inside Pack 3. -
Page 4: Tools Required
Tools required Please check you have these tools below Tape measure Fittings Please check you have all the parts listed below with your product: Hardware needed for assembly headboard and fitting side rails to headboard & footboard Packed in footboard Pack 2 - hardware Pack (A) a x20 b x26 c x26... - Page 5 Fit the wings to the headboard iii) Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 5...
- Page 6 10mm Fit brackets (M, N & R) to the side rails a x2 b x2 c x2 Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 6...
- Page 7 Assemble the bed frame around the bed base. Screw in the eight 6" (15cm) legs as shown. Position the bed base. Place the headboard in the position in which it shall be used and attach the right hand side rail using hardware from pack (A).
- Page 8 i Connect power lead for electric base to your wall socket - for safety this must be an earthed power supply. ii. Raise the head and foot ends of the bed base using the remote control. Position the footboard. Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 8...
- Page 9 Note: For illustration purposes only, TV connections may vary. TV Power Lead TIP: If you would like to connect media equipment, your cables can be passed through the appropriate duct as shown. HDMI Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 9...
- Page 10 TV Installation-Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Choose a suitable set of hardware Counter-Sunk Counter-Sunk Screws Screw-Washer sets y x2 (M8x25mm) - Use (M6x12mm) Screws (M4x12mm) 5mm Allen Key (D) z x2 Allen Key (4mm) Allen Key (2.5mm) Loosen...
- Page 11 TV Installation - 100 x 100 Vesa Fixing Remove cross bracket and fit directly to back of the television. 100mm IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Choose a suitable set of hardware Screw-Washer Counter-Sunk Counter-Sunk Screws sets (M8x25mm) y x2 (M6x12mm)
- Page 12 TV Installation Kit - 100 x 100 Vesa fixing. Loosen Tighten Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 12...
- Page 13 Note: For illustration purposes only, TV connections may vary. TV Power Lead To help fitting your own cables, this is shown for illustration only HDMI PLUG IN - KEEP ALL CABLES TIGHT USE CLIPS & TIES PROVIDED. Keep wires tight - peel &...
- Page 14 TV Power Lead Press once and TV will rise to it's upper working position. Power to the TV will be connected automatically Press once and TV Lift will stop. Press once and TV will go down - as soon as the lower resting position is reached power to the TV is switched o to prevent it overheating.
- Page 15 Make sure everything is working properly then fit the left hand side rail (E). 100% 30mm 20mm Foley Sleepmotion Lifestyle TV Bed - Assembly guide - Page 14...
-
Page 16: Care And Maintenance
Technical Specifications Max TV Size: 975 x 575 x 85 (WHDmm) Overall Dimensions (LWH mm) Double: 2245 x 1470 x 1185 King: 2345 x 1620 x 1185 Super King: 2345 x 1920 x 1185 Internal Dimensions (LWH mm) Double: 1930 x 1380 King: 2030 x 1530 Super King:... - Page 17 Little dreamers Keep the little ones entertained while you assemble your new purchase.
