IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY
A full instructional video of the assembly of this bed is available via YouTube using
the following address:

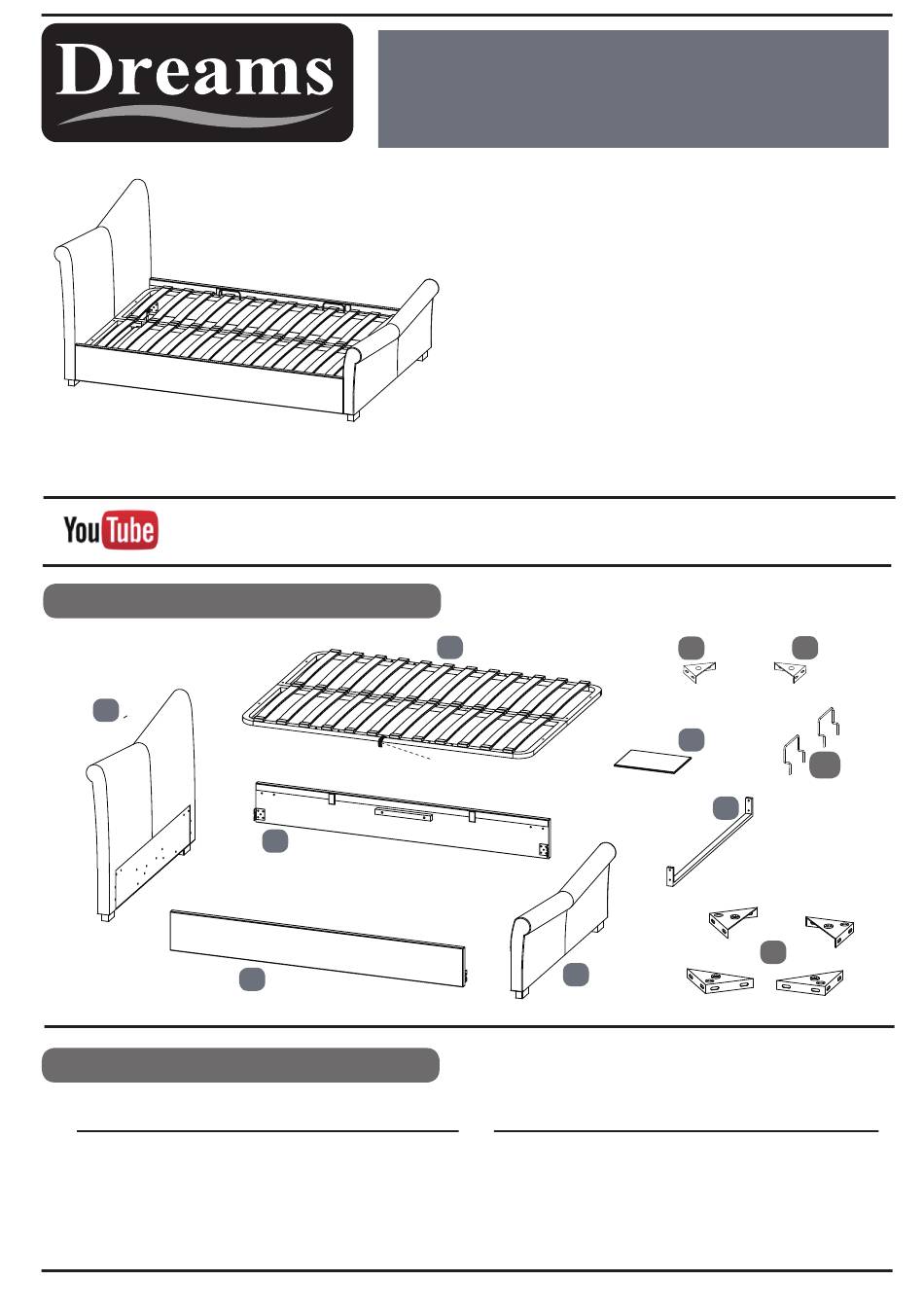

Parts Identification
1
Parts Checklist
Ref.
Description
1
Headboard
2
Footboard
3
Side Panels
4
Metal Slat Frame
190915
WILLIAM OTTOMAN BED 4-0 & 5-0
https://youtu.be/No3W3cH7nVU
FABRIC
HANDLE
. .
3
3
Qty
1
1
2
1
Page 1 of 9
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be kept
away from young children during assembly, to avoid the
danger of choking.
4
. .
2
Ref.
Description
5
Angle Brackets
6
Mattress Stoppers
7
Fabric Base Cover
8
'U' Shaped Cross Bar
5
5
7
8
8
5
Qty
4
2
1
1
