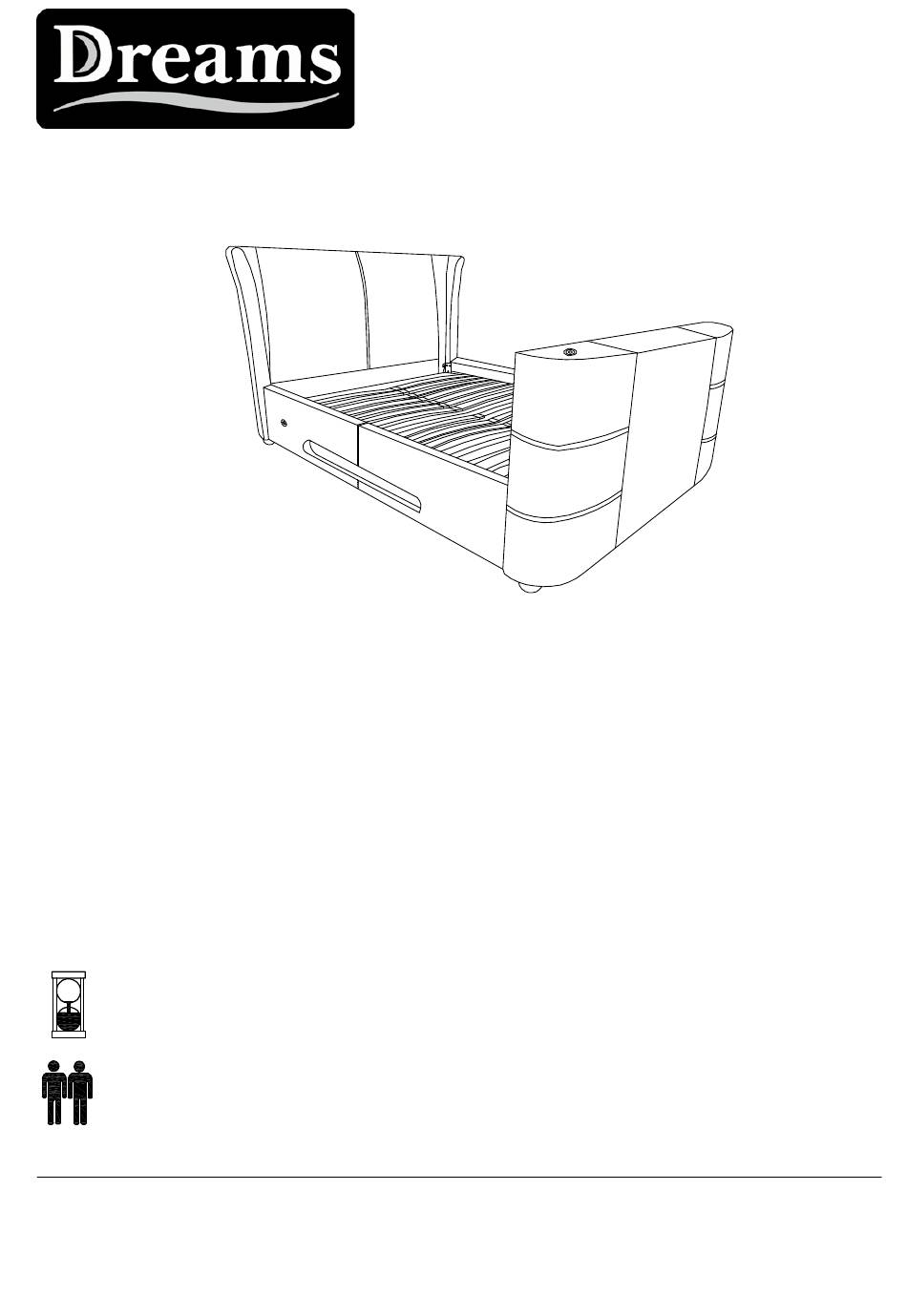

DREAMS Kyoto TV Bed Assembly Instruction Manual

Helpful Advice

Owing to the size and weight of the Kyoto TV Bed, we recommend that it is assembled by two adults,

on a flat surface, in the room that it is intended for.

Please do not use any tools other than those provided or recommeded in these instructions.

Please do not discard any of the packaging or instruction book until you have checked all the

components and fittings and the furniture is fully assembled. Keep all fittings out of reach of children.

Assemble all parts loosely until advised to tighten. Depending on use, it may be necessary to tighten the

Fittings from time to time, so please save your allen key and spanner that has been provided.

Approx assembly time: 90 min

Min no. of people recommended to assemble this product.

In the unlikely event that this product has missing or damaged parts, please call customer service

on 08442 920000 to request spare or replacement parts.

Assembly Instruction

Kyoto TV Bed

1 of 6

Table of Contents

Do you have a question about the Kyoto TV Bed and is the answer not in the manual?

Page 1 Kyoto TV Bed Helpful Advice Owing to the size and weight of the Kyoto TV Bed, we recommend that it is assembled by two adults, on a flat surface, in the room that it is intended for. Please do not use any tools other than those provided or recommeded in these instructions.
Page 2 Parts Headboard x 1 Footboard x 1 Side Rail (Right) x 1 Side Rail (Left) x 1 Bottom Drawer Panel x 1 Side Drawer Panel (Left) x 1 Support Drawer Leg x 2 Back Drawer Panel x 1 Side Drawer Panel (Right) x 1 Power Lead x 1 Aerial Power x 1 Fittings...
Page 3 Assembly A x 12 F x 1 N x 4 C x 16 B x 16 3 & 4 3 & 4 A x 8 N x 4 and A x 4 Important: H x 9 Make sure when you fit the nuts that the hole is in the correct alignment.
Page 4 Assembly E x 9 A x 2 F x 1 K x 2 A x 4 B x 4 C x 4 F x 1 4 of 6...
Page 5: Troubleshooting
Assembly Power Socket Aerial Socket G x 4 11 x 1 10 x 1 D x 4 COMPLETE THE INSTALLATION OF THE TV 1. Connect the power and aerial cables to the socket at the bottom of the footboard, and leads to the wall socket. 2.
Page 6 Assembly IMPORTANT NOTE: a) Your bedstead comes supplied as standard with Solid Wood Slats, or upgrade available to Sprung Slat System at point of purchase at an additional cost. b) Please carefully follow the correct assembly instructions for the slat system that you have purchased. c) You have bought your bed, chosing one of two slat options;...
