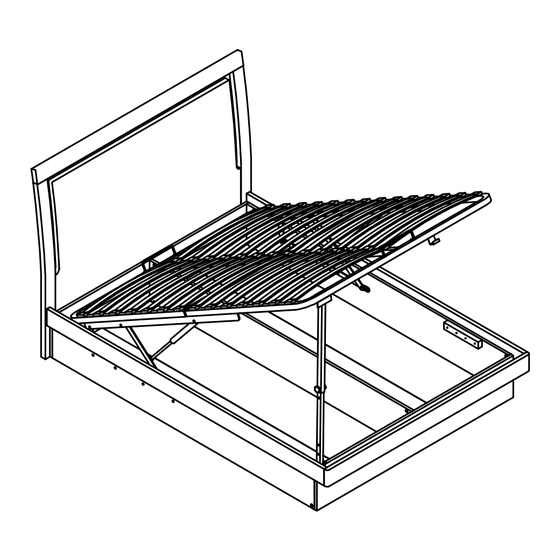

- Page 1 Isabella Double & King Bed V2 OTTOMAN Isabella Double & King Bed V2 - Assembly Guide - Page 1...
-
Page 2: Help And Support
Thank you Hello, thanks for choosing to purchase your bed from Dreams - you’re now on your way to your best Ever night’s sleep. Before you begin building your bed, please take a moment to read through the Instructions and make sure that you’ve got all the relevant parts listed on the following pages. - Page 3 Parts The bed you have purchased comes with a metal slat frame lifting from the front OTTOMAN Parts List Description Description Headboard Metal Slat Frame Footboard Mattress Stoppers Headboard Panel Ottoman stay support bar Footboard Panel Ottoman stay support bar Side Rails (Left &...
-
Page 4: Tools Required
Fittings Please check you have all the parts listed below with your product: (a) Bolt (M8x80) (b) Ø8 Washer (c) Barrel But (M8) (d) Locking Nut (e) Locking Pin x4pcs x4pcs x4pcs x16pcs x16 pcs (j) Bolt (M8x20) (f) Dowel (Ø10x40) (g) Dowel (Ø8x30) (h) Jcn Nut ( ") - Page 5 Ottoman assembly 1) Fit Dowels (g) into holes in the ends of side rails (E) and center rail (F). Screw Locking Pins (e) into the headboard panel (C).Use Locking Nuts (d) to fix the headboard panel onto side rails (E) and center panel (F). 2) Please do not tighten any Locking Nuts yet.
- Page 6 Ottoman assembly Fit the footboard (B) to the unit. Fit the headboard (A) to the unit. Isabella Double & King Bed V2 - Assembly Guide - Page 6...
- Page 7 Ottoman assembly Fit the Mattress Stoppers (J) to the slat frame (I). Slide gas - lift piston stem onto the axle then fit the Nuts (n).Tighten Nuts with Spanner (k),do not Slat frame Support Bar over - tighten. A small gap needs to be left so stem can move freely, please see sketch below.
- Page 8 Ottoman assembly 1) Two people carefully lower the slat frame onto the gas-lift mechanisms support bars 2) Secure by threading bolts (j) to slat frame on the gas-lift mechanisms support bars . Position base boards (G&H) into the bed frame Isabella Double &...
- Page 9 Ottoman Stay bar assembly King Double Isabella Double & King Bed V2 - Assembly Guide - Page 9...
- Page 10 Ottoman assembly Isabella Double & King Bed V2 - Assembly Guide - Page 10...
- Page 11 Ottoman assembly LAY DOWN Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100% Isabella Double & King Bed V2 - Assembly Guide - Page 11...

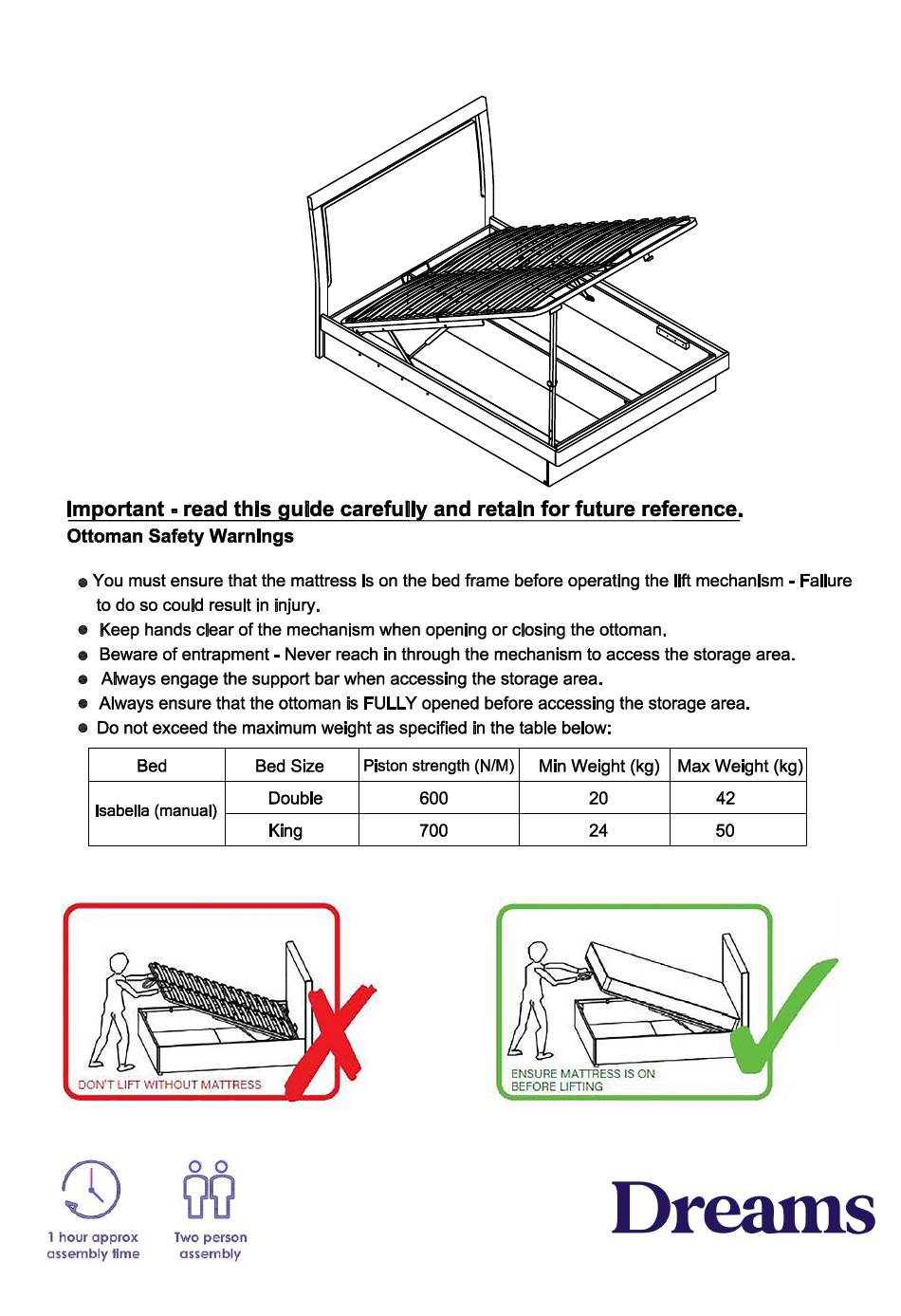

- Page 12 Warning You must ensure that the mattress is on the bed frame before operating the lift mechanism - Failure to do so could result in injury. Keep hands clear of the mechanism when opening or closing the ottoman. Beware of entrapment - Never reach in through the mechanism to access the storage area. Always engage the support bar when accessing the storage area.
-
Page 13: Care And Maintenance
Care and maintenance Here are some tips to keep your new bed in tip - top condition Cleaning To clean your new bed, we’d advise using a warm damp cloth - please do not use abrasive chemicals or bleach as this may damage the product. Checking and moving Periodically we recommend you check that the screws or fixtures haven’t been Become loose, over time.
