Section 3. Getting Started

Install the CTX, XP, XF or E Series Pump following the
instructions in this manual, and in accordance with all
applicable local and national codes and ordinances.
3.1

Package Contents

Two sets of union fittings are included with each pump (see
Figure 5):
a. Union Nuts
b. Union Tails
c. O-Rings
(Please call your distributor or technical support if a part is missing.)
Pump shown with union nut, union tail and o-rings installed.
a.

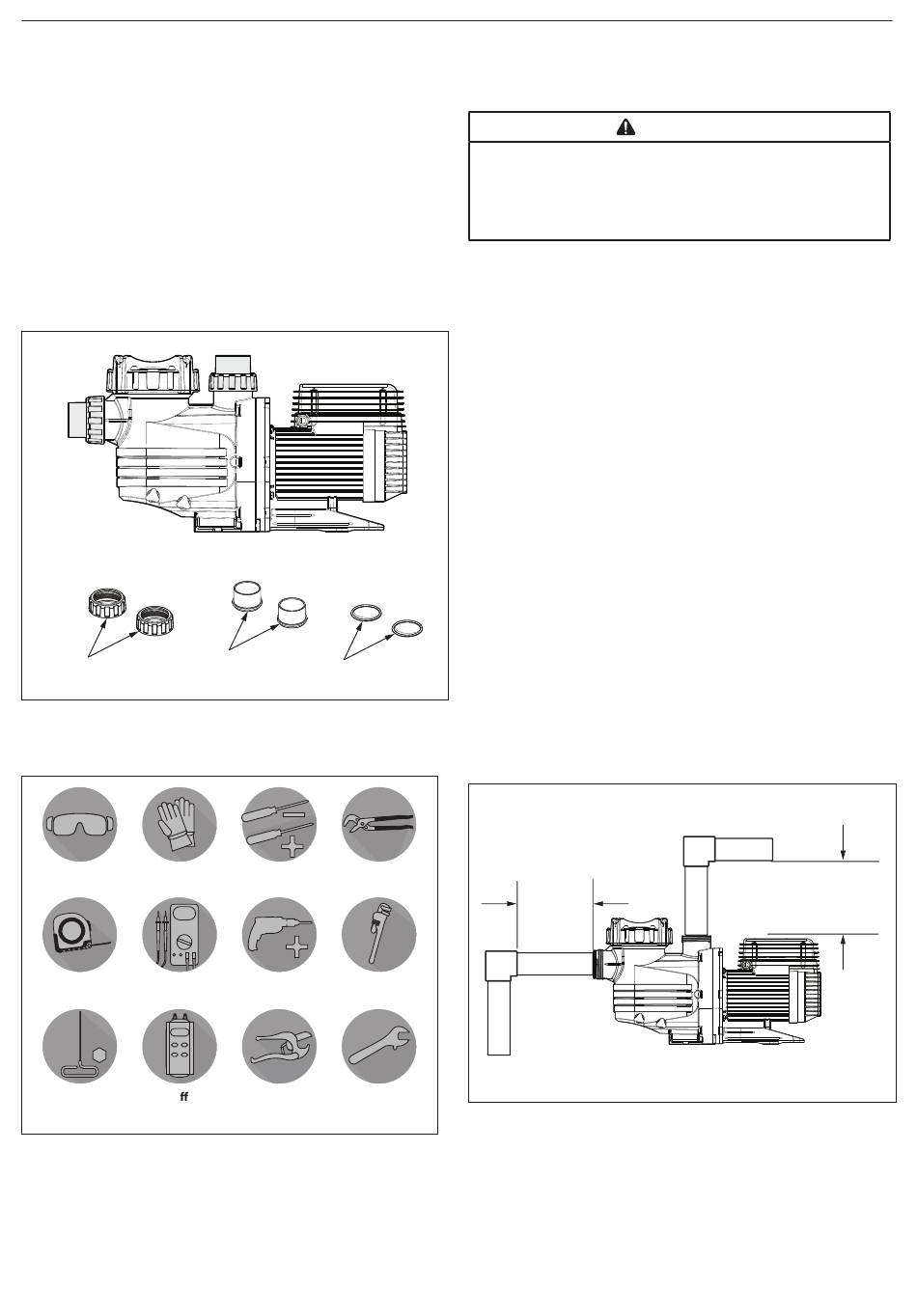

Figure 5. Union Fittings
3.2

Tools for Installation

Safety Eye Wear Gloves
Tape Measure Voltage Meter
5mm (3/16") Digital Di erential
Hex Key Manometer
Figure 6. Required Tools
8
b.
c.
Screwdrivers Multi Grips
Power Drill Pipe Wrench
PVC Pipe Adjustable
Wrench
Cutter
AstralPool CTX, XP, XF and E Series Pumps | Installation and Operation Manual
®

Section 4. Installation

4.1

Pump Location

To Reduce the Risk of Fire, install pool equipment in an area where
leaves or other debris will not collect on or around the equipment.
Keep surrounding area clear of all debris such as paper, leaves,
pine-needles and other combustible materials.
AstralPool recommends installing the pump within 30 cm
above the water level. The pump should not be elevated
more than 152 cm. If the pump is located below water level,
check valves (also known as isolation valves or non-return
valves) must be installed on both the suction and return
lines to prevent back flow of pool water.
NOTE: When a pump is located below the pool surface, a leak can
result in large scale water loss or flooding. AstralPool is not
responsible for flood loss or damage.
1. Pumps must be installed in accordance with the
regulations of the Australian wiring rules AS/NZS 3000-
2018. To facilitate an emergency shutdown, install the
General Power Outlet (GPO) or pool timer for the pump,
in an easily accessible location.
2. Install the pump on a level, stable foundation, such
as a concrete slab. Attach the pump using fasteners
appropriate for the foundation surface.
3. Ensure that the foundation has adequate drainage to
prevent the pump motor from getting wet.
4. Make sure the pump has the proper ventilation to
prevent the motor from overheating. Overheating due to
poor ventilation voids the warranty.
5. Provide enough lighting and space around the pump for
maintenance.
5x
Pipe
Diameter
Figure 7. Minimum Pipe Clearances
WARNING
Top Clearance
BOP 150mm Minimum
From Top of Lid
