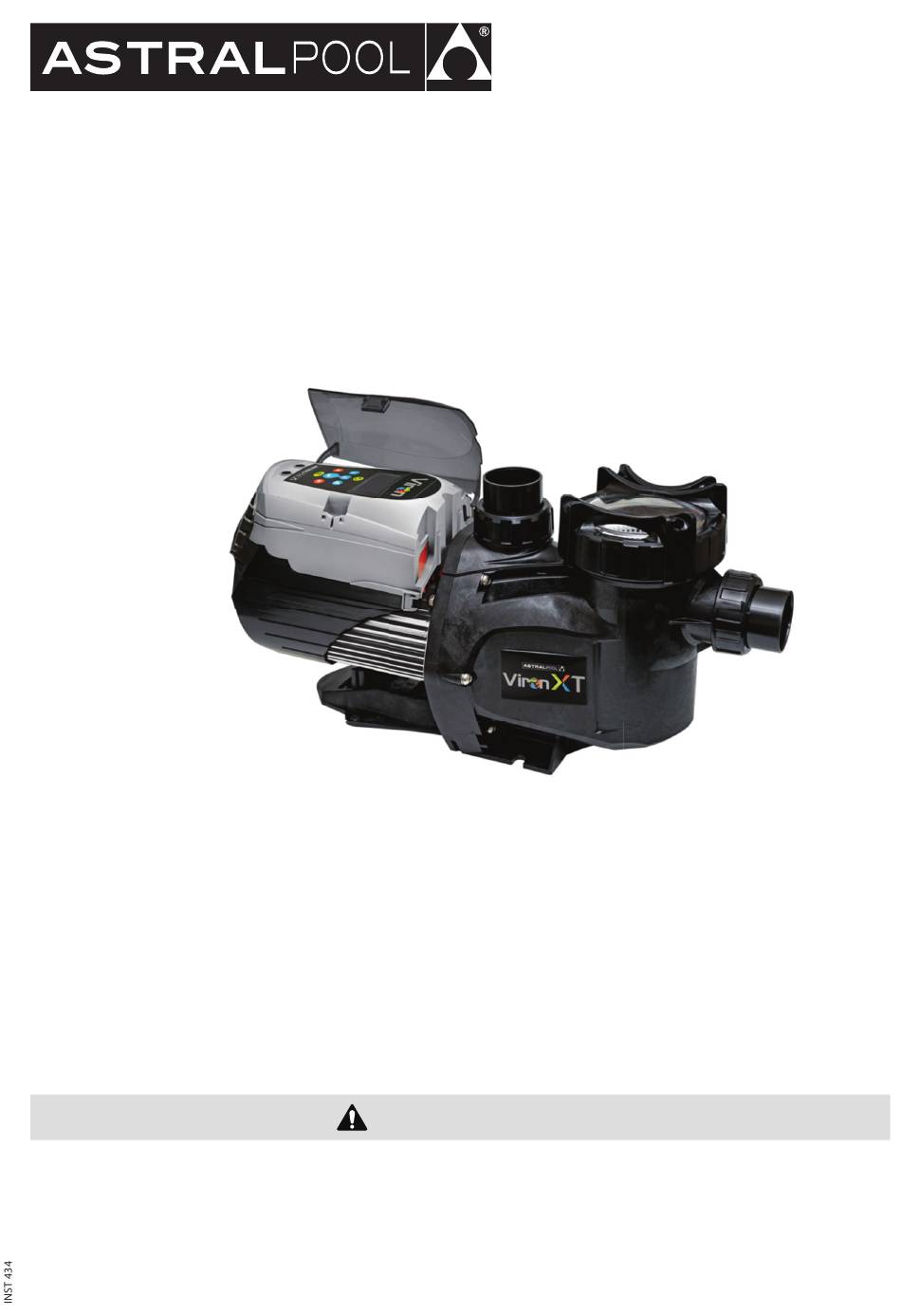

INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed and serviced by a licensed electrician in accordance with the
latest applicable version of AS/NZS 3000, along with any other applicable local and national installation codes/
standards", and any other local applicable regulations. Before installing this product, read and follow all warning
notices and instructions that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.

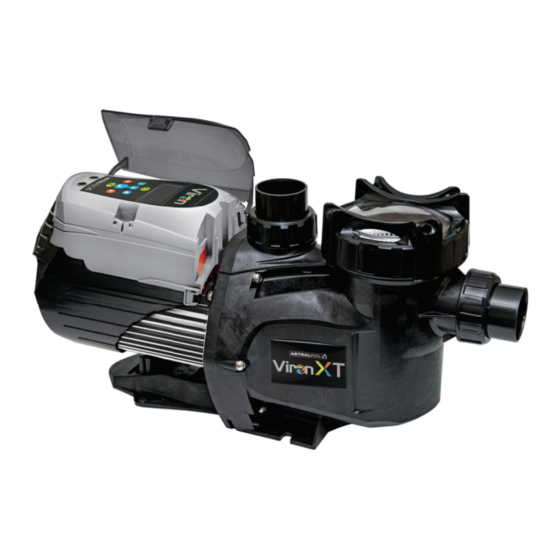

Viron xt
pumps
WARNING
(all models)
Advertisement
Table of Contents
Related Manuals for Astralpool Viron P320 XT
Summary of Contents for Astralpool Viron P320 XT
- Page 1 INSTALLATION MANUAL (all models) Viron xt pumps WARNING FOR YOUR SAFETY - This product must be installed and serviced by a licensed electrician in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local and national installation codes/ standards”, and any other local applicable regulations.
- Page 2 viron xt pumps Installation Manual For full warranty terms and conditions and to register your warranty, simply visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code and be taken directly to the registration page. Record your equipment details here for quick reference: Model No.: ________________________________ Serial No.:...
-
Page 3: Table Of Contents
viron xt pumps Installation Manual Table of Contents Section 1. Important Safety Instructions ... 4 Section 6. Viron XT Pump Controls ....16 Viron XT Pump Control Panel ..........16 Section 2. General Information ......7 Speed Selections ..............16 Technical Assistance ..............7 Programming ................ -
Page 4: Important Safety Instructions
viron xt pumps Installation Manual Section 1. Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED, CAN RESULT IN SERIOUS... - Page 5 viron xt pumps Installation Manual WARNING To minimize risk of severe injury or death, the filter and/or pump should not be subjected to the piping system pressurization test. Local codes may require the pool piping system to be subjected to a pressure test. These requirements are generally not intended to apply to the pool equipment, such as filters or pumps.
- Page 6 viron xt pumps viron xt pumps Installation Manual Installation Manual WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools, or spas containing bottom drains, unless pump is connected to at least two (2) functioning suction outlets.
-
Page 7: General Information
viron xt pumps viron xt pumps Installation Manual Installation Manual Section 2. General Information Flow Rate Specification This manual provides installation and operation Model P320 XT P520 XT instructions for the AstralPool Viron XT pumps. High Flow Rate 320 lpm 520 lpm (2850 RPM) Read the installation and operation instructions... -
Page 8: Getting Started
viron xt pumps Installation Manual Technical Specifications Section 3. Getting Started • Power: P320 XT - .75 Kw output, 240V 50 Hz, 4.1 Amp, Install the Viron XT Pump in accordance with the max speed 2850 rpm; P520 XT - 1.5 Kw output,240V procedures in this manual, local codes and ordinances, 50 Hz, 6.0 amp, max speed 2820 rpm and in accordance with the latest edition of the... -
Page 9: Installation
viron xt pumps Installation Manual Section 4. Installation Pipe Size Maximum Flow Suction Maximum Flow (6 feet per second) Discharge (8 feet per second) Pump Location 38 mm 140 LPM 189 LPM (1½”) (37 GPM) (50 GPM) WARNING 51 mm 235 LPM 322 LPM To Reduce the Risk of Fire, install pool equipment in an area... -
Page 10: Pump Installation
viron xt pumps Installation Manual suction fittings of the main drains must be at least 1 m (3 ft) apart, center to center, or on different planes. The suction fittings can be a drain and skimmer, two drains, Good Installation two skimmers, or a skimmer with an equalizer line (4x Pipe Diameter Into Pump) installed. - Page 11 viron xt pumps Installation Manual POOL/SPA PUMP 3 WAY VALVE FILTER HEATER SKIMMER CHECK VALVE (Always install a corrosion resistant check valve when any sanitation equipment, including erosion feeders and salt chlorination systems are installed, see section 5.4 for more details) SPA DRAIN* (Suction Outlet) SPA RETURN...
-
Page 12: Water Connections
viron xt pumps Installation Manual Water Connections Electrical Connections The heater should always be installed after the pump The XT Pump is supplied with a standard 10 amp 3-pin and filter. The water connections are located on the plug for connection to a 240V 10 amp GPO. All pool or right hand side of the heater. - Page 13 viron xt pumps Installation Manual The Viron XT Pump models covered in this installation and operation manual provide separate compartments for high voltage and low voltage wiring. 4.4.3 User Interface The user interface is fixed and wired to the pump in •...
-
Page 14: Operation
viron xt pumps Installation Manual Section 5. Operation • Viron XT Pump automatically limits maximum speed according to the system’s total dynamic Normal Operation head and power consumption. • Once the pump is primed (or fail to prime within The Viron XT Pumps has three (3) pre-set speed five (5) minutes), the speed will return to the last settings: Low, Medium and High. -
Page 15: Conduct Pressure Test
viron xt pumps Installation Manual Fill the system with water to eliminate trapped air. Pressurize the system with water to no more than 35 PSI. Close the valve to seal the water in the system. Locking Observe the system for any leaks or pressure decay. If there are lid leaks, repeat this procedure. -
Page 16: Viron Xt Pump Controls
viron xt pumps Installation Manual Section 6. Viron XT Pump Controls • Low Speed is factory pre-set and is the recommended setting for your daily filtration flow rate – enough to gentle turn the water over once per day and circulate Viron XT Pump Control Panel the water completely around your pool. -
Page 17: Programming
viron xt pumps Installation Manual 6.3.3 Setting Independent Pump Operation • However, should your pool water develop cloudiness or your pool surface exhibit algae growth you may Toggle Menu until “CONF” is displayed on the LCD need to increase the low speed of your pump to ensure screen adequate circulation of water and chlorine to all parts Press and HOLD “enter”... - Page 18 viron xt pumps Installation Manual 6.3.6 Using In-Built Timer with Non-compliant 6.3.8 Using Pump with AstralPool-Compliant Chlorinator External Control We do not recommend the use of the pump timers AstralPool manufactures Salt Chlorinators, EQ when a non compliant chlorinator or chemical doser chemical dosing units or the Viron Connect Touch is supplied water flow by the Viron P320 or P520 XT Screen Control system which can control both the...
-
Page 19: Xt Pumps And Other Products
viron xt pumps Installation Manual XT Pumps and Other Products 6.4.1.3 Viron XT Pumps, VX S (Non-timer) Model Chlorinator and Viron Connect 10 Remote Control System 6.4.1 Use With Remote Controls • Timer periods set up in controller 6.4.1.1 Viron XT Pump Standalone •... - Page 20 viron xt pumps Installation Manual If replacing or selecting a new cleaner, AstralPool Viron XT Pump is connected to Viron Heater or Other recommend our Robotic Range of Cleaners which Compatible AstralPool Heater via RJ12 cable operate independently from the filter pump and Viron Heater Status Viron XT Pump Response allows the pump to operate at a speed which offers...
-
Page 21: Maintenance
viron xt pumps Installation Manual Section 7. Maintenance Winterizing the Pump CAUTION Routine Maintenance The pump must be protected when freezing Inspect the pump filter basket for debris by looking temperatures are expected. Allowing the pump through the clear pump lid. Remove any debris, to freeze will cause severe damage and void the because as debris accumulates, it will begin to block warranty. -
Page 22: Maintenance Schedule
viron xt pumps Installation Manual Maintenance Schedule The Viron XT Pump incorporates moving parts and withstands high velocity water with chemicals in it. Some of these parts will wear in the normal course of use and require regular checks and maintenance. Performing these checks and maintenance will identify parts that have worn and require repair/ replacement before further serious damage is... -
Page 23: Troubleshooting
viron xt pumps Installation Manual Section 8. Troubleshooting When there is an error condition, a message is displayed on the screen. When the error situation is corrected, the error message ends automatically. If the pump continues to perform incorrectly, please contact AstralPool at 1 300 186 875. -
Page 24: Spare Parts
viron xt pumps Installation Manual Section 9. Spare Parts Model P320XT and P520XT... -
Page 25: Model P320Xt And P520Xt Spare Parts List
viron xt pumps Installation Manual Model P320XT and P520XT Spare Parts List Item # Description Part # Quantity LID COMPLETE WITH O-RING 40089 LID O-RING 70006 BASKET 40065 PIPE FITTING COMPONENT BAG 78303 CHECK VALVE ASSEMBLY 598770 PUMP WET END 40097 O-RING 70003... -
Page 26: Section 10. Viron Xt Pump Control Flow Diagram
viron xt pumps Installation Manual Section 10. Viron XT Pump Control Flow Diagram PROMPT PROMPT HOUR MINUTE PROMPT AM/PM CURRENT TIME FLASH FLASH GOES TO TMR IF TURNED ON IN CONF OR PRIM IF NOT HOUR CHANGES MINUTE CHANGES AM/PM CHANGES TIMER TIMER TIMER... -
Page 27: Section 11. Performance Curves
viron xt pumps Installation Manual Section 11. Performance Curves 11.1 Model P320XT 25.0 20.0 15.0 Overdrive High Speed = 2850 RPM 10.0 Medium Speed = 2000 RPM Low Speed = 1325 RPM Flow Rate (L/min) 11.2 Model P520XT 25.0 20.0 Overdrive 15.0 High Speed = 2850 RPM... - Page 28 AstralPool Australia Pty Ltd 111 Indian Drive Keysborough VIC 3173, Australia 1.300.186.875 www.astralpool.com.au ©2019 Fluidra S.A. All rights reserved. This document is subject to change without notice.
