Summary of Contents for Thundercomm TurboX T62M-EA

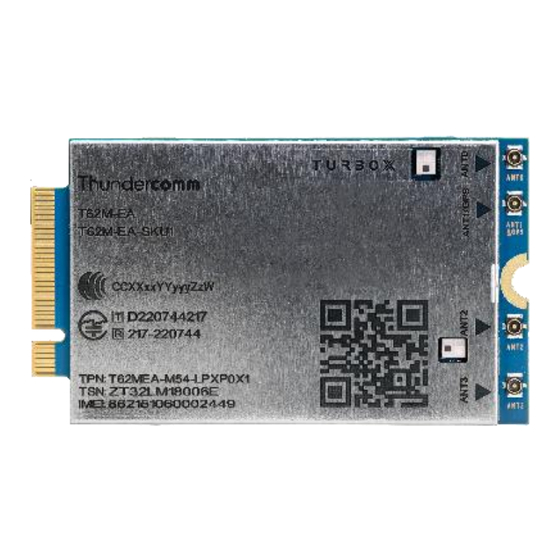

- Page 1 Thundercomm TurboX T62M-EA Development Kit Quick Start Guide Rev. V1.0 tc-q1-2110...
-
Page 2: Package List
Package List T62M DK Board (With T62M SOM) T62 M.2 Module AC Power Adaptor (HTE) Cellular/GPS Antenna (x 4) Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. -
Page 3: Interface List
Interface List 1. 12V DC in jack 4. T62 M.2 module 2. Reset button 5. SIM card slot 1 3. USB Type-C connector Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. -
Page 4: Let's Get Started
3. Insert T62 Module to M.2 connector (connector 6). 4. Connect the power adapter to the board via 12V DC in jack (connector 1). 5. Connect the board to a computer via USB Type-C connector (connector 3). Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. - Page 5 The products described in this document are not intended for use in implantation or other life support applications failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm.
