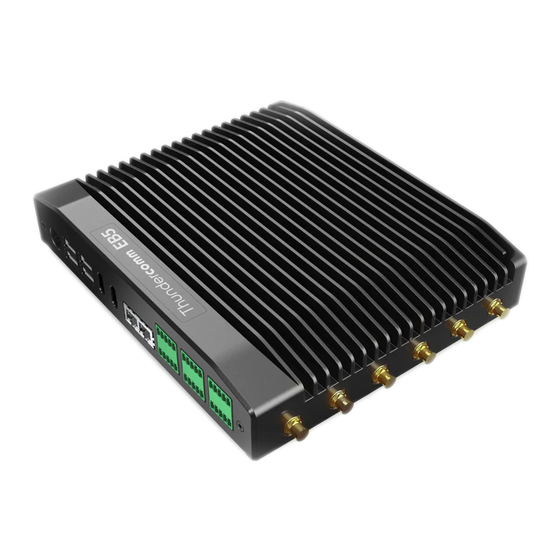

- Page 1 Thundercomm EB5 Edge AI Box Hardware User Manual Rev. V1.7 July 14, 2021...
- Page 2 Thundercomm EB5 Edge AI Box Hardware User Manual Revision History Revision Date Description Jan 25, 2021 Initial release May 25, 2021 Update the pictures of figure June 7,2021 Update some points June 8,2021 Update some points June 22,2021 Change description of Phoenix terminal...
- Page 3 Thundercomm EB5 Edge AI Box Hardware User Manual Table List Table 1-1.Safety sign list Table 2-1.EB5 Specifications Table 3-1.Front view light location and specification Table 3-2.Front view connector location and specification Table 3-3.Front view button location and specification Table 3-4.Rear view Ethernet light location and specification Table 3-5.Rear view connector location and specification...
- Page 4 Depending on the version of operating systems and programs, some user interface instructions might not be applicable to your device. Documentation content is subject to change without notice. Thundercomm makes constant improvements on the documentation of your computer, including this guidebook.
-
Page 5: Table Of Contents
Thundercomm EB5 AI Box Hardware User Manual Table of Contents Chapter 1. Safety ..........................- 2 - 1.1. General safety precautions ......................... - 2 - 1.1.1. Local laws and regulations ............................- 2 - 1.1.2. Basic installation requirements ..........................- 2 - 1.1.3. -
Page 6: Chapter 1. Safety
1.1.2. Basic installation requirements The person responsible for installing and maintaining Thundercomm equipment must first be trained strictly and know all kinds of safety precautions. He must also master the correct operating methods before he can install, operate, and maintain the equipment. -
Page 7: On Equipment
Thundercomm EB5 Edge AI Box Hardware User Manual alarm number. No re-entry into the burning building is allowed under any circumstances. 1.1.5. On equipment Before operation, the equipment should be reliably fixed on the floor or other stable objects, such as walls or mounting frames. - Page 8 Thundercomm EB5 Edge AI Box Hardware User Manual Thunderstorm Weather This requirement applies only to wireless base stations or devices with skylines. Notice: It is forbidden to operate the tower and mast under the thunderstorm, otherwise there will be danger of life.
-
Page 9: Safety And Caution Information
Thundercomm EB5 Edge AI Box Hardware User Manual Anti-static wristband: Figure 1-1. Anti-static wristband 1.2. Safety and caution information AC Power Adapter: Risk of electric shock, fire, or burn if using an AC adapter other than the one provided with this device, Indoor use only and in dry locations. -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction 2.1. Overview EB5 Edge AI box is a lightweight edge device, featuring powerful AI and video decode capabilities. It supports device- edge-cloud synergy, remote algorithm and application deployment, FOTA and DM. It can be widely used in complex environments such as industial park, urban residential areas and shopping mall. -
Page 11: Key Features
2.3. Usage scenario EB5 can be used in many scenarios, including safe city, smart safety supervision, smart transportation, smart manufacturing, smart retail, smart care, etc. Typical architectures in these application scenarios are as follows: Terminal: Wirelessly connect to IPC (IP Camera) or other front-end devices. -
Page 12: Product Specifications
Thundercomm EB5 Edge AI Box Hardware User Manual 2.4. Product specifications Table 2-1.EB5 Specifications Item Specifications Ubuntu18.04 CPU: Qualcomm® Kryo 585 CPU, CPU Clock Speed: up to 2.84GHz GPU: Qualcomm® Adreno™ 650 GP Platform DSP: Qualcomm® Hexagon™ 698 Processor (Snapdragon™ QRB5165, AI VPU: Adreno™... - Page 13 Thundercomm EB5 Edge AI Box Hardware User Manual Note2：This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 14: Chapter 3. Hardware Description
EB5 provides a rich IO interface, flexible access to a variety of peripherals. Connect Tech’s EB5 brings deployable Snapdragon 865 5G Mobile Platform to the market. The EB5 design includes a Locking Power Input (+12 to +24V), Dual Gigabit 2* Ethernet, 2* HDMI video, 4* USB 3.0 Type A, Micro USB 2.0 (for debug), Type -C, MIC, Earphone, Micro SD Card, SIM Card, 3* Phoenix terminal (10pin) (Isolated Full Duplex CAN *2, Isolated RS485 *2, RS232 *2, DO*4, DI*4), M.2 (B-Key, M-Key;... -
Page 15: System Architecture
Thundercomm EB5 Edge AI Box Hardware User Manual 3.2. System architecture Figure 3-2. Top View Figure 3-3. Side View 3.3. Hardware specifications Figure 3-4. Front View Light Location - 11 -... - Page 16 starts the power up process. The EB5 implements a dual functionality pushbutton for both Reset and Power up/Power down of the platform. To power the module, simply press and hold the pushbutton for a minimum of 250 milliseconds. To put the Edge box module into Force Reset mode, press and hold the pushbutton for a minimum of 10 seconds.
- Page 17 power up process. The EB5 implements a dual functionality pushbutton for both Reset and Power up/Power down of the platform. To power the module, simply press and hold the pushbutton for a minimum of 250 milliseconds. To put the Edge box module into Force Reset mode, press and hold the pushbutton for a minimum of 10 seconds.
- Page 18 If the user uses smoke detector, infrared detector, access control, alarm and other alarm output equipment. Connect the cable terminal to the EB5 Phoenix terminal interface and ensure that both the alarm input device and the EB5 are connected to the ground. - 14 -...
- Page 19 Thundercomm EB5 Edge AI Box Hardware User Manual Phoenix terminal Description The Edge box implements 3 Phoenix terminals for CAN/RS232/RS485/DI/DO Table 3-6. Phoenix terminal 1 description Name Description Interface Figure CAN1.L CAN interface 1 L level. DI work with GND, Short with GND or open.
- Page 20 Thundercomm EB5 Edge AI Box Hardware User Manual Figure 3-9. Left View Antenna Location Table 3-9. Left view antenna description Name Type Instructions Antenna Connectors SMA-K The EB5 chassis implements 6x SMA Antenna Connectors (optional) for WiFi and M.2 3052 B-Key (5G). - 16 -...
-
Page 21: Chapter 4. Hardware Operation
Chapter 4. Hardware Operation Power On Please check that EB5 and the power adapter in the package are in good condition. Perform boot operation according to our operation guide. EB5 starts automatically when it is plugged in. Step 1. Plug the power adapter into the power socket. -
Page 22: Chapter 5. Warranty & Product Support Service
Chapter 5. Warranty & Product Support Service 5.1. Customer support have two methods: E-mail support: customer can get support from writing to: service@thundercomm.com Customer service platform: customers can report bugs on platform directly and our engineers will give feedback on platform (It will be opened in August this year) 5.2. -
Page 23: Appendix 1. Notices
Thundercomm has all rights under other relevant exemptions provided by laws and regulations, and Thundercomm's failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm. Thundercomm reserves the right of final interpretation of this document. -
Page 24: Appendix 2. Trademarks
Thundercomm EB5 Edge AI Box Hardware User Manual Appendix 2. Trademarks Thundercomm, Thundercomm Turbox, and TURBOX are trademarks of Thundercomm Corporation or its associate companies in China and/or other countries. Intel, Intel SpeedStep, Optane, and Thunderbolt are trademarks of Intel Corporation or its subsidiaries in the U.S.
