- Page 1 SWIT Electronics Co., Ltd. Model: M-1073H 7-inch Full HD Rack Mount LCD Monitor User Manual Ver：A Please read this User Manual throughout before...
- Page 2 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice.
-
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents

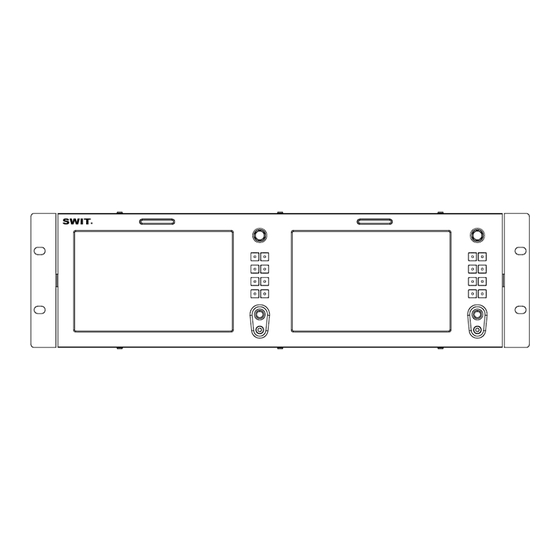

4. Power cable Introduction M-1073H adopts TFT LCD panel, with resolution 1920×1200 and wide viewing angle H160°⁄V160°. It supports 2 x 3GSDI (Level A/B), 1 x HDMI2.0 (4K display) input. It also supports 1x 3GSDI, 1 x HDMI and 1 x analog audio loop through output. -
Page 5: Operation Instructions
Operation Instructions ·Front Panel ⑴ TALLY Light: Red, Green and Yellow 3-color TALLY indicator ⑵ MENU/ENTER (Main menu settings) When the menu is inactivated, presses “MENU/ENTE” to turn on the main menu on the left top of the screen; Rotate the knob, select corresponding submenu; the corresponding item is highlighted in yellow; Press the knob, enter the submenu;... -
Page 6: Back Panel
·Back Panel (1) Fan (2) Video Signal Interface GPI: TSL UMD&GPI control socket USB: For firmware upgrade HDMI-IN: HDMI input (HDMI-A connector) HDMI-OUT: HDMI loop through output from HDMI-IN (HDMI-A connector) SDI-IN1: 3G/HD/SD SDI input (BNC connector) SDI-IN2: 3G/HD/SD SDI input (BNC connector) SDI-OUT: 3G/HD/SD SDI output (BNC connector), the monitor choose the current SDI1/SDI2 signal to loop output. -
Page 7: Zoom-In And Mapping
·Zoom-in and mapping When you turn on “Zoom-in” function, the screen will be displayed as shown in the figure above. 1. Zoom-in steps operation Scroll the menu key up and down you can quickly zoom in the video by the following rates: 1.2x, 1.5x, 1.8x, 2.0x, 2.2x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting. - Page 8 User can set function Keys F1～F4 or GPI pins as “color bar” to turn on or off this function. Peaking focus assist (red/blue switch) The Peaking focus assist function is to mark the sharpest edges of the image with red or blue color under SDI and HDMI input, for users to check if the subjects are focused.
-
Page 9: Main Menu
Main menu M-1073H has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 10 Submenu introduction (the default values are marked with underline) 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters Color Temp To select different color temperature or setup user-defined color parameters.
- Page 11 4. Function key To define the F1～F4 function keys *1 Function keys F1-F4 can be set as the down below functions: Time code, Zebra, Audio Bar, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max backlight, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, Color Temp.
- Page 12 information. Example 2: Under “GPI ” submenu, set “GPI control” to “On”, set “4 Pin” to “Scan Mode”, when the pin 4 of the extenal GPI control unit is connected with ground, the Scan mode will change and follow the sequence: “Normal” →”Overscan”→”Native” . 6.
- Page 13 Aspect ratio: 4:3 Aspect ratio: 4:3 Safety Area: 85% Safety Area: 85% Center Marker: On Center Marker: Off Fit Marker: Off Fit Marker: On 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame”...
- Page 14 SDI1 has no recognized signal, and HDMI has recognized signal, then the input signal will be HDMI. When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. *3.*4 Update Driver/ Kernel...
- Page 15 ⑴ Open the power supply, plug the U disk with upgrading programma into the USB port on the rear of the monitor； ⑵ Press “MENU” rotary knob, open the main menu, enter the “system” submenu, select “Driver/Kernel”； ⑶ Set the parameter to “Yes”, and press “MENU” rotary knob to begin upgrading； ⑷...
- Page 16 12. OSD 13. Key Inhibit When the “Key inhibit” is set to “on”, there is no response when all the buttons except ” MENU/ENTER” is pressed, the sreen will be displayed as ” Key Inhibit”. User can set “Key inhibit” to off under the “Key inhibit” submenu, restore the function of all keys.
-
Page 17: Specification
Specification LCD Performance Size 7 inch×2 Display area 151.2×94.5 mm×2 Resolution 1920×RGB×1200 Color 8 bit Aspect ratio 16:9∕4:3 Brightness 400 cd∕㎡ Contrast 1000:1 Viewing angle Horizontal / Vertical: 160°∕160° Input/Output BNC×4 3G/HD/SD-SDI input Input HDMI×2 HDMI input USB×2 BNC×2 3G/HD/SD-SDI loop output Output HDMI×2 HDMI loop output... -
Page 18: Trouble-Shooting
Trouble-shooting Symptom Possible causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose Check and correctly connect the contact or not correctly BNC or HDMI cable...
