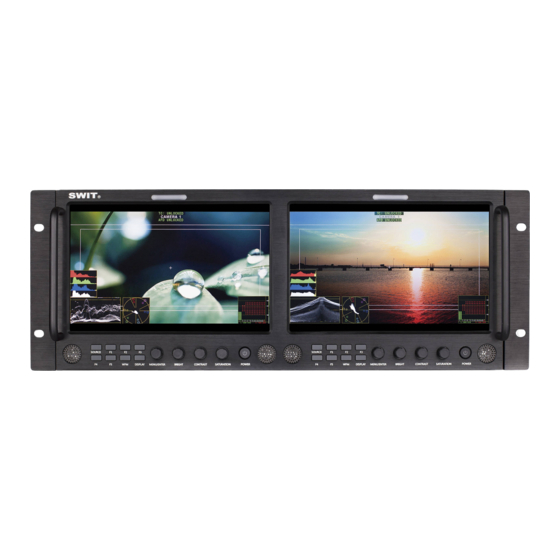

- Page 1 Model: M-1093F 9” Rack Mount Waveform LCD Monitor User Manual Ver: B Please read this User Manual throughout before using.
-
Page 2: Preface
2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice. -
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents
Contents Preface .................................. 1 Maintenance ................................. 3 Contents ................................4 Packing list ................................4 Installation Dimension ............................5 Operation Instructions ............................6 ·Front Panel ..............................6 ·OSD ................................7 Introduction of audio and video functions ....................8 ·Rear Panel ..............................9 Main Menu................................ -
Page 5: Installation Dimension
Installation Dimension The main body (in mm) -
Page 6: Operation Instructions
Operation Instructions ·Front Panel ⑴ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if headphone socket is plugged in) ⑵ Button SOURCE: Press “SOURCE” to select SDI1, SDI2, HDMI, and CVBS signal input F1～F5: User definable function keys. Please see details in “4. Function key” under “Main Menu”. -
Page 7: Osd
·OSD ⑴ Time code (SDI) Under SDI input, it can display Time code. If no Time code information is detected, it will be displayed as “TC: UNLOCKED”. User can set function keys F1～F5 or GPI pins as “Time code” to turn on or off this function. ⑵... -
Page 8: Introduction Of Audio And Video Functions
Introduction of audio and video functions 16-ch embedded audio meters Under 2K/3G/HD SDI, it displays 16 channels embedded audio meters. Under SD-SDI and HDMI, it displays 8 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB. -
Page 9: Rear Panel
·Rear Panel ⑴ GPI: TSL UMD&GPI control socket ⑵ SDI-LOOP1: SDI loop through output from SDI-IN1 (BNC connector) ⑶ SDI-LOOP2: SDI loop through output from SDI-IN2 (BNC connector) ⑷ CVBS-OUT: CVBS output (BNC connector) ⑸ HDMI Socket HDMI-IN: HDMI input (HDMI-A connector) HDMI-OUT: HDMI loop through output from HDMI-IN (HDMI-A connector) ⑹... -
Page 10: Main Menu
Main Menu M-1093F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. -
Page 11: Sub-Menu
Sub-Menu 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3. Color Temp To select different color temperature or setup user-defined color parameters. * Only “Color Temp”... - Page 12 4. Function key To define the F1～F5 function keys. *1 Function keys F1-F5 can be set as the down below functions: Audio, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker , Color Bar, UMD, Audio Alarm, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Image Flip, CVBS, HDMI, SDI1, SDI2, Color Temp, Timecode, Zebra, Vector.
- Page 13 Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen. UMD setup: ⑴ Connect the external control equipment with M-1093F; ⑵ Set “Display Type” to “UMD” under UMD submenu; ⑶ Make sure the “address”, “Baud Rate”, “Parity” the same;...
- Page 14 7. Marker *1 When “Fit Marker” is “Off”, the size of safety area is benchmarked against the actual display screen, accounting for 80% ~ 95% of actual display screen. When “Fit Marker” is “On”, the size of safety area is benchmarked against the area inside the scales marker, accounting for 80% ~ 95% of the area inside the scales marker.
- Page 15 When the current “Select Channel” is set to “Channel1-16”, the left channel and right channel output can be selected from Channel1 to channel 16. In audio bar, the left channel information will be in green, and the right channel information will be in red.
- Page 16 When set to “No”, update model will not be supported. *2 Update Mode2 When powered on, the screen will display SWIT logo. *3、*4 Update Driver/ Kernel ⑴ Turn on the power supply, plug the U disk with upgrading programma into the Micro USB port on the side of the monitor；...
- Page 17 13. OSD 14. Key Inhibit If the “Key Inhibit” is “On”, there is no response when all the buttons expert ” MENU/ENTER” are pressed, the sreen will be diaplayed as ” Key Inhibit”. User can set “Key Inhibit” under “key Inhibit” submenu to “Off” to recover the functions of all buttons.
-
Page 18: Specification
Specification LCD Performance 9 inches ×2 Size Display area 191.5×119.7 mm Resolution 1920×1200 Color 8 bit Aspect ratio 16:9 / 4:3 Brightness 450 cd/m Contrast 1000:1 Viewing Angle Horizontal: 170° Vertical: 170° Input/output – Each LCD BNC×2 2K/3G/HD/SD-SDI ×2 BNC×1 CVBS input HDMI×1 HDMI input... -
Page 19: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply BNC or HDMI cable loose No display Check and correctly connect the contact or not correctly...
