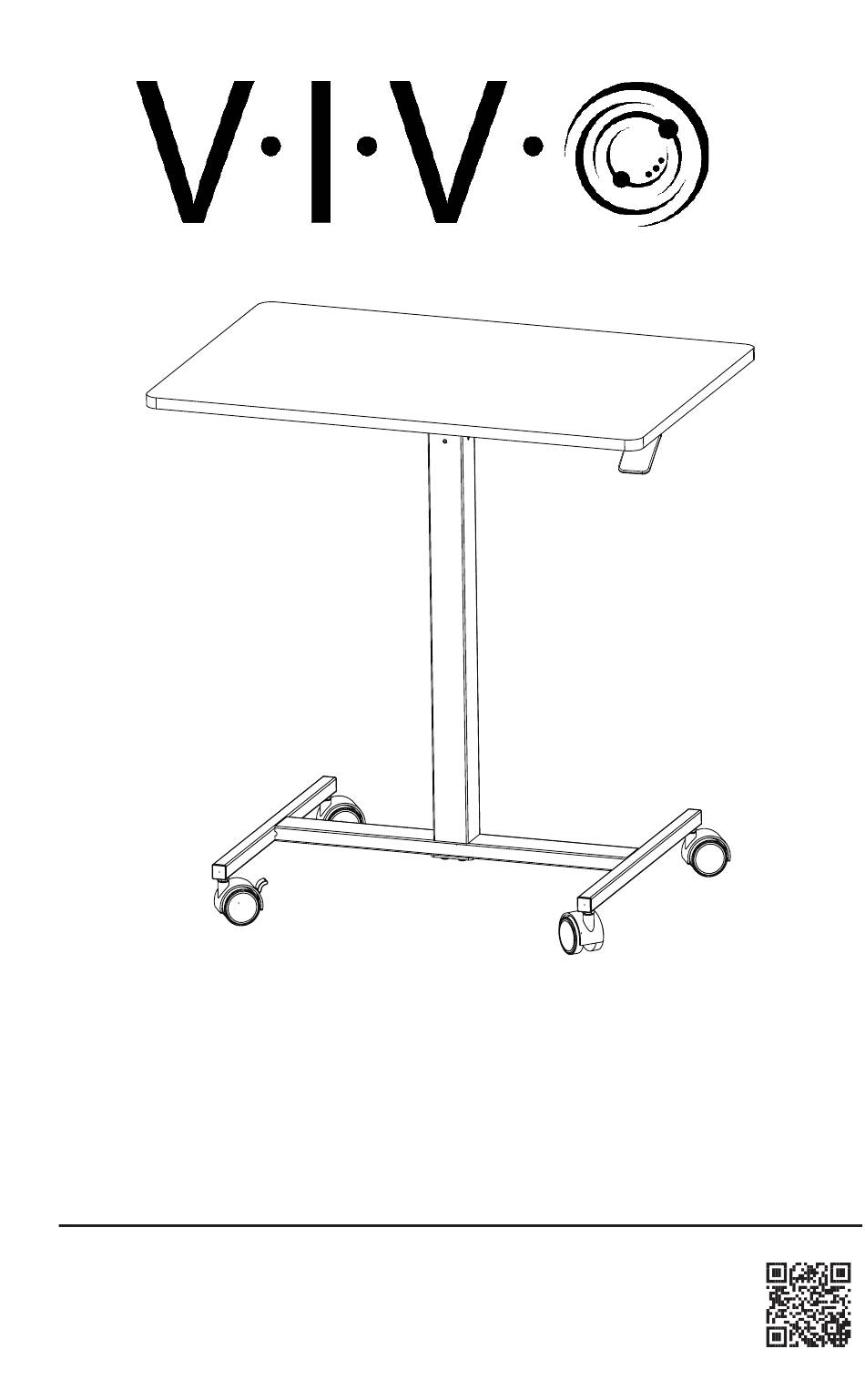

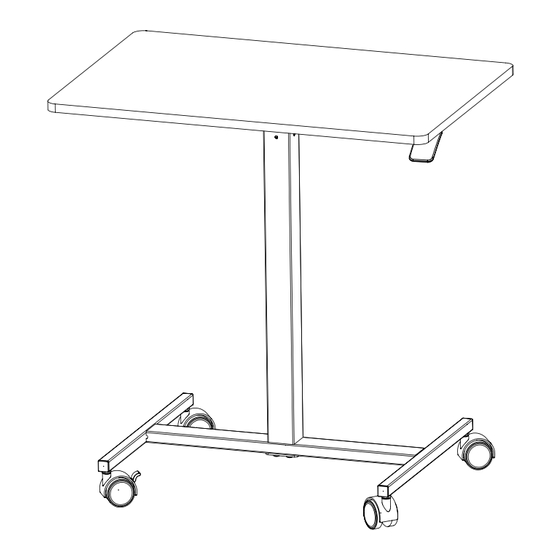

- Page 1 White Pneumatic Mobile Workstation SKU:CART-V00LW Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/cart-v00lw...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x1) Base Desktop D (x2) E (x2) Locking Caster Caster Included Hardware & Tools S-A (x4) S-B (x4) M6x40mm Screw M6x8mm Screw T-A (x1) T-B (x1) 4mm Allen Wrench Wrench Tools Needed: Weight Capacity: 22lbs (10kg) Phillips...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Thread Locking Casters (D) into the back and Casters (E) into the front of Base (B). Tighten using Wrench (T-B). - Page 5 STEP 2 Remove the shipping protection from Leg (A). Do not stand directly above the leg when removing the cap.
- Page 6 STEP 3 Install Leg (A) to Desktop (C) using M6x8mm Screws (S-B) and 4mm Allen Wrench (T-A).
- Page 7 STEP 4 Install Base (B) to Leg (A) using M6x40mm Screws (S-A) and 4mm Allen Wrench (T-A).
- Page 8 Adjust as Desired Use the lever on the side of Desktop (C) to adjust the height.
- Page 9 Locking Casters Press down on Tab (D1) to lock Locking Casters (D).
- Page 10 Assembly Complete Assembly is now complete and your Mobile Workstation is ready for use. The cart can support up to 22lbs/10kg.
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
-
Page 12: Last Updated
LAST UPDATED: 5/29/24 REV2 v2.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
