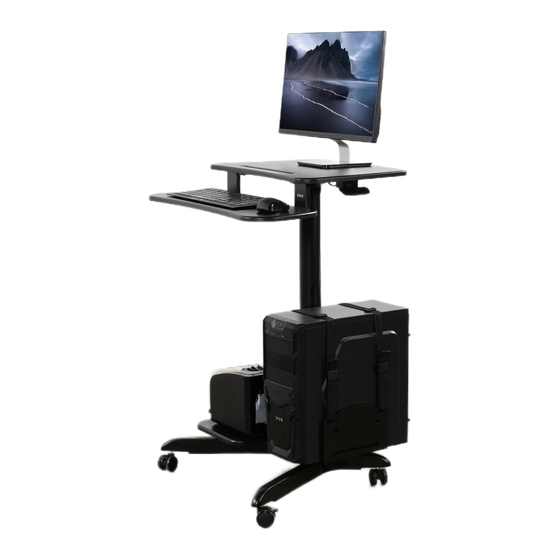

Black 24" Mobile Computer Workstation
Instruction Manual
SKU: CART-PC02HB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-pc02hb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo CART-PC02HB
Summary of Contents for Vivo CART-PC02HB
- Page 1 Black 24” Mobile Computer Workstation Instruction Manual SKU: CART-PC02HB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-pc02hb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Screw the casters (F, G) into the base (B). Adjust casters to sit level on the floor if needed, then tighten the nut on each stem against the base using the wrench (T). STEP 2 Assemble the pole with handle(C) to the desktop (A) using four M6x12 cheesehead bolts (O) for the pole and two M6x12 panhead bolts (P) for the handle.
- Page 4 STEP 4 Attach assembled keyboard shelf to desktop using M6x12 panhead bolts (P) and tighten with the 4mm Allen wrench (R). STEP 5 Loosen the screw on the lower shelf bracket (H) using a Phillips screwdriver. Slide the bracket onto the bottom of the pole, then place the pole into the base.
- Page 5 STEP 7 Peel backing from the adhesive pads (L) and apply pads to CPU holder mount (I) and CPU holder (J). Remove knobs from the CPU holder. STEP 8 Assemble CPU holder and CPU holder mount using previously removed knobs. STEP 9 Attach assembled CPU holder to left or right side of lower shelf bracket (H) using two M6x8 flathead bolts (Q) with a Phillips screwdriver.
- Page 6 STEP 10 Attach printer shelf (E) to lower shelf bracket (H) opposite from the CPU holder using two M6x8 flathead bolts (Q) with a Phillips screwdriver. Slide CPU holder and shelf assembly down so the bumpers are resting on the base, and tighten the screw on the shelf bracket using a Phillips screwdriver.
- Page 7 STEP 12 Place monitor, keyboard and other items onto desk. Apply cable clips (M) where desired to manage wires from keyboard and mouse. Loosen knobs on CPU holder, adjust holder width to fit CPU tower, then tighten. Unlock buckles on straps and extend straps. Place CPU tower in holder, pull straps tight around CPU tower, then lock the buckles.
