Vivo CART-V06A Instruction Manual

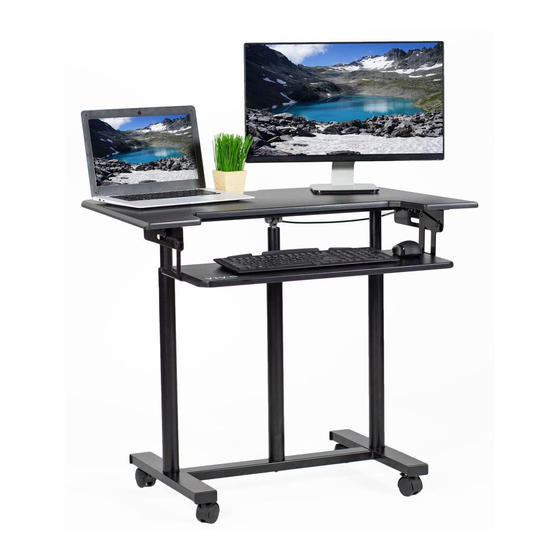

Sit and stand workstation

Hide thumbs Also See for CART-V06A:

Table of Contents

Download this manual

Scan the QR code with your mobile device or follow the link to

helpful videos and specifications related to this product.

https://vivo us.com/products/cart v06a

Tools Required:

phillips screwdriver

Sit and Stand Workstation

Instruction Manual

A M5x12 (x37)

B M5x16 (x6)

C M8x12 (x4)

D 20x8x1 (x4)

Model: CART V06A

E 17x8.2x5 (x4)

Email: help@vivo-us.com

Live chat: www.vivo-us.com

F Wrench (x1)

Call: 1-800-371-5654

Table of Contents

Do you have a question about the CART-V06A and is the answer not in the manual?

Page 1 Scan the QR code with your mobile device or follow the link to helpful videos and specifications related to this product. https://vivo us.com/products/cart v06a Tools Required: phillips screwdriver Package Contents Sit and Stand Workstation Instruction Manual A M5x12 (x37) B M5x16 (x6)
Page 2 Assembly Steps Step 3 Step 1 Install support plate (3) to poles using x6 M6x12 screws Screw casters (7) into underside of base. Tighten with (C). Tighten with 4mm Allen wrench (D). wrench (E). Step 2 Step 4 Assemble poles to base using x9 Assemble desktop (1) using x10 M5x12 screws (A).
Page 3 Step 5 Step 7 Secure center pole to desktop with x4 M5x20 screws (B). Mount keyboard shelf (4) to brackets with x6 M5x12 screws (F). Step 8 Step 6 Ensure the handle is correctly pulling on the release cable. If the release Install keyboard shelf brackets (2) to desktop using x6 M5x12 screws (A).
Page 4 If any parts are received damaged or defective, please contact slide in and out. us. We are happy to replace parts to ensure you have a fully functioning product. For more VIVO products, check out our website at www.vivo-us.com. Last updated: 4/23/2018...
