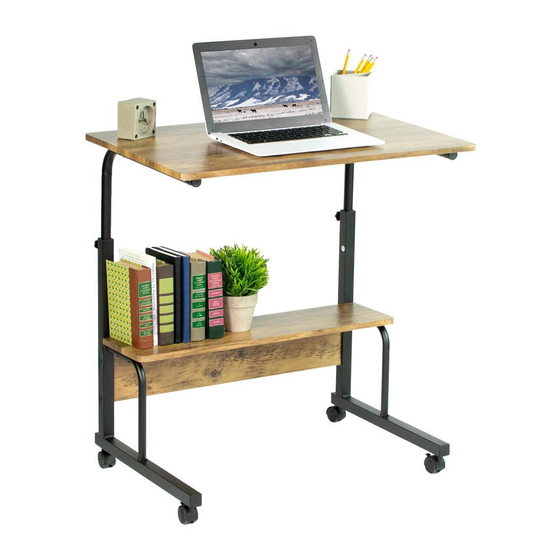

Mobile Computer Workstation
Instruction Manual
SKU: CART-V08D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-v08d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo CART-V08D
Summary of Contents for Vivo CART-V08D
- Page 1 Mobile Computer Workstation Instruction Manual SKU: CART-V08D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-v08d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Screw the casters (C) into the frames (5) using the wrench (F). - Page 4 STEP 2 Mount the rear panel (1) to the frames (5) using M6x45mm bolts (B), and tighten with the 4mm Allen wrench (E). STEP 3 Mount the shelf (2) to the frames (5) using M6x30mm bolts (G), and tighten with the 4mm Allen wrench (E).
- Page 5 STEP 4 Mount the desktop supports (4) to the desktop (3) using M6x35mm bolts (A) , and tighten with the 4mm Allen wrench (E).
- Page 6 STEP 5 Slide the desktop supports (4) down into the frames (5) and secure with the knobs (D).
- Page 7 STEP 6 To adjust desktop height, loosen the knobs (D), slide the desktop up or down, then retighten the knobs.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
