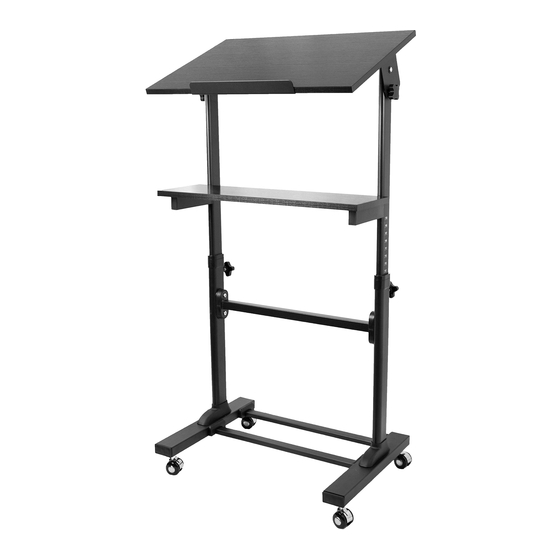

- Page 1 Mobile Stand Up Workstation Instruction Manual SKU: CART-V03P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-v03p help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! ASSEMBLY STEPS If you do not understand these directions, or if you have any doubts about the safety of the STEP 1 installation, please call a qualified technician. Check carefully to make sure there are no missing or Slip the covers (G1) over the legs (B1, B2). Attach the arm defective parts.
- Page 3 STEP 4 STEP 7 Tighten the bolts (A1) using the Allen key (A8). “L” dimensions should be equal. Attach plate (G7, G8) using bolts (A2), knobs (G6), A2x2 A3x2 A3x2 A4x2 washers (A3, A4, A5), and nuts (A6). Tighten using Allen key and wrench (A8, A9, A10).
- Page 4 STEP 10 STEP 13 Attach the lower shelf (B6) using bolts (A7) Turn the bottom nut counter-clockwise to loosen. Turn the top and the Allen key (A8). nut clockwise to tighten. NOTE: Make sure all casters are at the same height. If the casters are not at the same height, they can be adjusted as shown in figure 1 and 2.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
