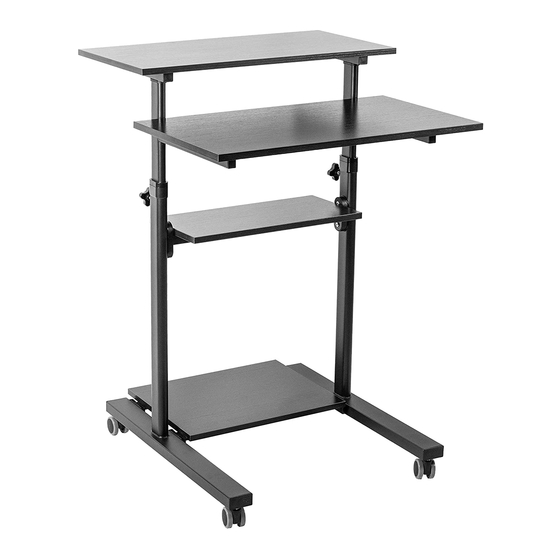

Black Mobile Computer Workstation
SKU: CART-V02DB
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/cart-v02db
www.vivo-us.com
help@vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo CART-V02DB
Summary of Contents for Vivo CART-V02DB
- Page 1 Black Mobile Computer Workstation SKU: CART-V02DB Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/cart-v02db www.vivo-us.com help@vivo-us.com 309-278-5303...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Weight Capacity
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. -
Page 4: Tools Needed
TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x1) Base Left Upright... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Install Casters Thread Casters (F) and Locking Casters (G) into Base (A) using Wrench (T-B). A (x1) F (x2) G (x2) (x1) Base Caster Locking Caster Wrench... - Page 6 STEP 2: Install Inserts Place Plastic Inserts (H) inside of Base (A). NOTE: Lock Locking Casters (G) to prevent rolling during assembly. H (x2) Plastic Insert...
- Page 7 STEP 3: Assemble Uprights Assemble Left Upright (B) and Right Upright (C) to Base (A) using M6x20mm Screws (S-A) and 4mm Allen Wrench (T-A). B (x1) C (x1) S-A (x4) T-A (x1) Left Upright Right Upright M6x20mm Screw 4mm Allen Wrench...
- Page 8 STEP 4: Install Bottom Shelf Assemble the Bottom Shelf (I) to Base (A) using M6x30mm Screws (S-B) and 4mm Allen Wrench (T-A). I (x1) S-B (x4) T-A (x1) Bottom Shelf M6x30mm Screw 4mm Allen Wrench STEP 5: Mount Crossbar Secure Crossbar (D) to Left Upright (B) and Right Upright (C) using M6x30mm Screws (S-B) and 4mm Allen Wrench (T-A).
- Page 9 STEP 6: Assemble Shelf Brackets Attach Shelf Brackets (E) to Left Upright (B) and Right Upright (C) using M6x30mm Screws (S-B) and 4mm Allen wrench (T-A). NOTE: Make sure to use the first two holes on Shelf Brackets (E). S-B (x4) T-A (x1) E (x2) M6x30mm Screw...
- Page 10 STEP 7: Secure Middle Shelf Assemble Middle Shelf (J) to Crossbar (D) using M6x35mm Screws (S-C) and 4mm Allen Wrench (T-A). J (x1) S-C (x2) T-A (x1) Middle Shelf M6x35mm Screw 4mm Allen Wrench...
- Page 11 STEP 8: Install Front Shelf Mount Front Shelf (K) to Left Upright (B) and Right Upright (C) using M6x30mm Screws (S-B) and 4mm Allen Wrench (T-A). K (x1) S-B (x4) T-A (x1) Front Shelf M6x30mm Screw 4mm Allen Wrench...
- Page 12 STEP 9: Assemble Rear Shelf Assemble Rear Shelf (L) to Shelf Brackets (E) using M6x30mm Screws (S-B) and 4mm Allen Wrench (T-A). S-B (x4) T-A (x1) L (x1) M6x30mm Screw 4mm Allen Wrench Rear Shelf...
-
Page 13: Step 10: Adjust Height
STEP 10: Adjust Height Loosen the knobs on the back Left Upright (B) and Right Upright (C). With your foot holding down Base (A), pull up evenly on the desktop until the legs lock at the desired height and tighten the knobs. Loosen the knobs and pull beyond the max height to lower the desk to the lowest position. - Page 14 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
-
Page 15: Need Assistance
Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <... - Page 16 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 06/28/2022 REV1LF...
