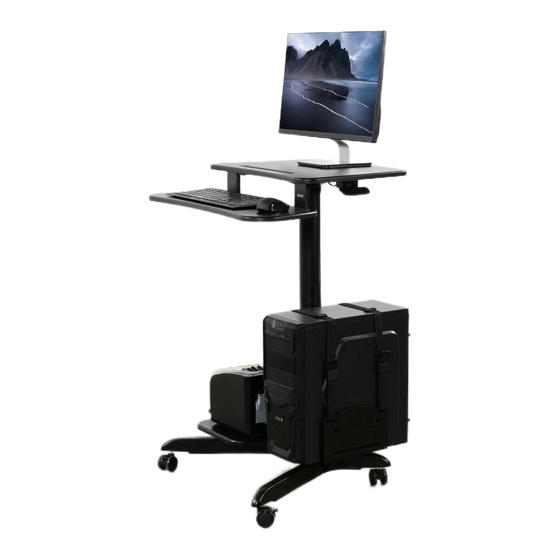

Black 24" Mobile Computer Workstation
Instruction Manual
SKU: CART-PC02HB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-pc02hb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-PC02HB
Summary of Contents for Vivo CART-PC02HB
- Page 1 Black 24” Mobile Computer Workstation Instruction Manual SKU: CART-PC02HB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-pc02hb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Screw Casters (F, G) into Base (B). Adjust Casters (F, G) to sit level on the floor if needed, then tighten the nut on each stem against Base (B) using Wrench (T-C). STEP 2 Assemble the Pole With Handle (C) to Desktop (A) using M6x16mm Screws (S-B) for the pole and M6x12mm Screws (S-C) for the handle.
- Page 4 STEP 4 Attach assembled keyboard tray to Desktop (A) using M6x12mm Screws (S-C) and tighten with 4mm Allen Wrench (T-A). STEP 5 Loosen the screw on Lower Shelf Bracket (H) using a Phillips screwdriver. Slide the bracket onto the bottom of Pole with Handle (C), then place the pole into Base (B).
- Page 5 STEP 7 Peel backing from Adhesive Pads (L) and apply pads to CPU Holder Mount (I) and CPU Holder (J). Remove knobs from CPU Holder (J). STEP 8 Assemble CPU Holder (J) and CPU Holder Mount (I) using previously removed knobs.
- Page 6 STEP 10 Attach Printer Shelf (E) to Lower Shelf Bracket (H) opposite from the CPU holder using M6x8mm Screws (S-D) with a Phillips screwdriver. Slide the CPU holder and shelf assembly down so the bumpers are resting on the base, and tighten the screw on Lower Shelf Bracket (H) using a Phillips screwdriver.
- Page 7 STEP 12 Place monitor, keyboard and other items onto desk. Apply Cable Clips (M) where desired to manage wires from keyboard and mouse. Loosen knobs on CPU holder, adjust holder width to fit CPU tower, then tighten. Unlock buckles on straps and extend straps. Place CPU tower in holder, pull straps tight around CPU tower, then lock the buckles.
