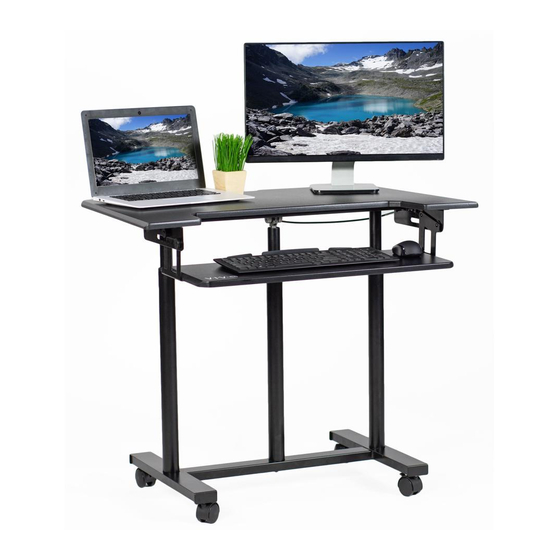

Black 35" Mobile Computer Workstation
Instruction Manual
SKU: CART-V06A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-v06a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CART-V06A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo CART-V06A

Summary of Contents for Vivo CART-V06A

  • Page 1 Black 35” Mobile Computer Workstation Instruction Manual SKU: CART-V06A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-v06a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 Screw locking casters (7) into the base (6) and tighten with the wrench (F). STEP 2 Assemble telescopic pole with release lever (5) to the center of the base using x3 M6x12 bolts (C). Assemble telescopic poles to sides of the base using x6 M6x15 bolts (D). Tighten all bolts with the 4mm Allen wrench (E).
  • Page 4 STEP 3 Install support plate (3) to poles using x6 M6x12 bolts (C) and tighten with the Allen wrench (E). STEP 4 Assemble desktop (1) to support plate using x10 M5x12 screws (A). Secure release lever handle to desktop with x3 M5x12 screws (A). Tighten with a Phillips screwdriver.
  • Page 5 STEP 5 Secure center pole to desktop with x4 M5x20 screws (B) and tighten with a Phillips screwdriver. STEP 6 Install keyboard shelf brackets (2) to desktop using x6 M5x12 screws (A), making sure the curved slots are facing towards the front. Tighten screws with a Phillips screwdriver.
  • Page 6 STEP 7 Mount keyboard shelf (4) to brackets with x6 M5x12 flathead screws (G) and tighten with a Phillips screwdriver. STEP 8 Ensure the handle is correctly pulling on the release cable. If the release cable tension is too high (height will not lock) or too low (desk will not raise or lower), turn the nuts at the end of the black tube near the handle to adjust the tension.
  • Page 7 STEP 9 To adjust height, lift the release lever handle and move the desktop up or down.
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S AVG. RESOLUTION TIME 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
