Board setup
To set up the board, follow the steps below:
Step 1.
Check the position of the jumper on the J1 connector. This jumper enables the write operation for the
EEPROM, if required.
Step 2.
Connect the provided antenna to
Step 3.
Connect the
pin 1 of the
can be identified as a rectangular footprint pad on both boards.
Note:
Boards can damage if not connected properly.
Step 4.
Power the STM32MP157F-DK2 using the USB Type-C® cable.
Step 5.
Program the supported firmware in the microSD™ card of the STM32MP157F-DK2 board. The X-
STM32MP-GNSS1 board is ready for use.
UM3237 - Rev 1
X-STM32MP-GNSS1
X-STM32MP-GNSS1
to the
X-STM32MP-GNSS1
board matches with pin 1 of the

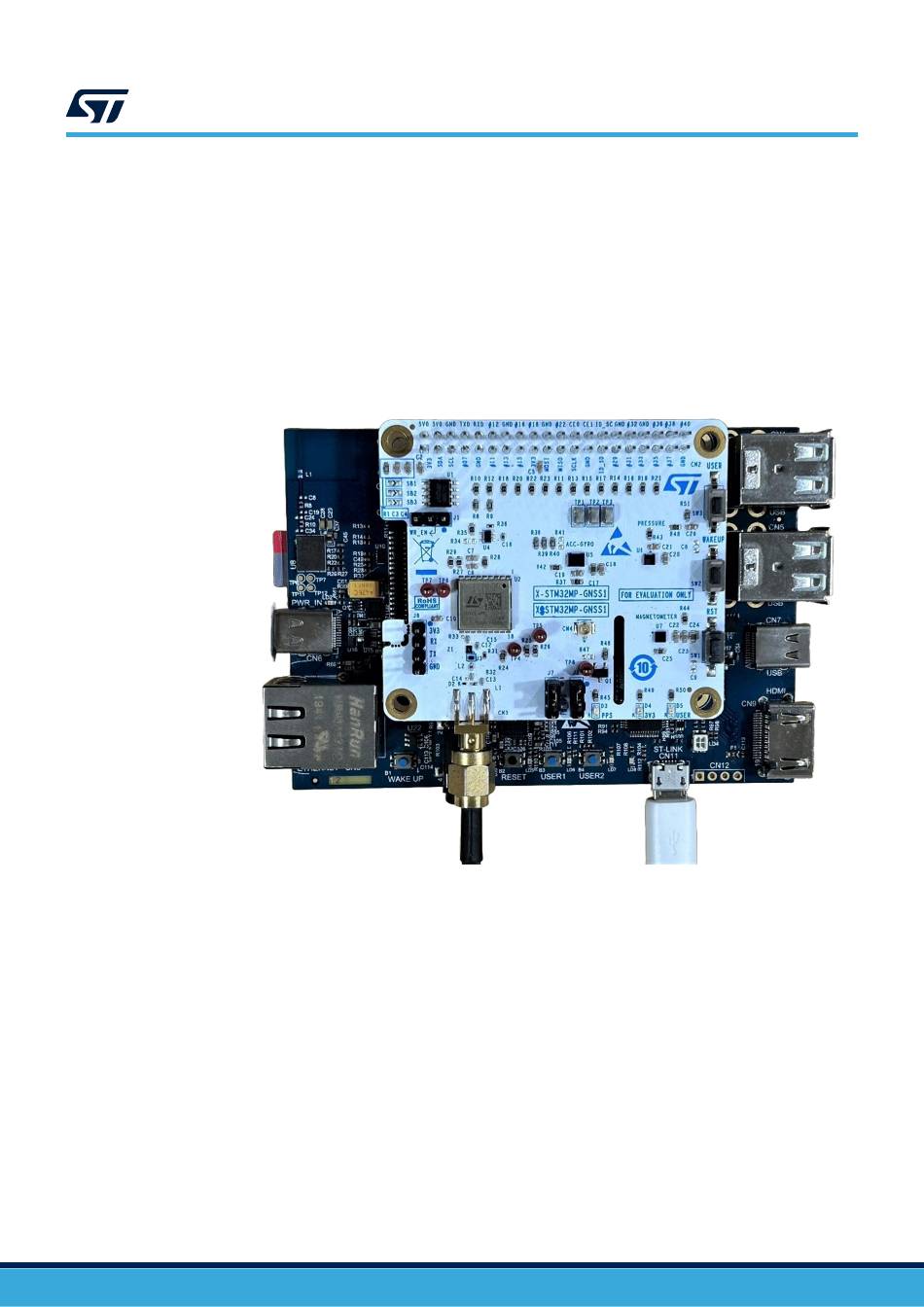

Figure 4.
X-STM32MP-GNSS1 connected to STM32MP157F-DK2
board on SMA Connector CN3.
STM32MP157F-DK2
at the top, as shown below. Ensure that
STM32MP157F-DK2
UM3237
Board setup
board. Pin 1
page 4/30
