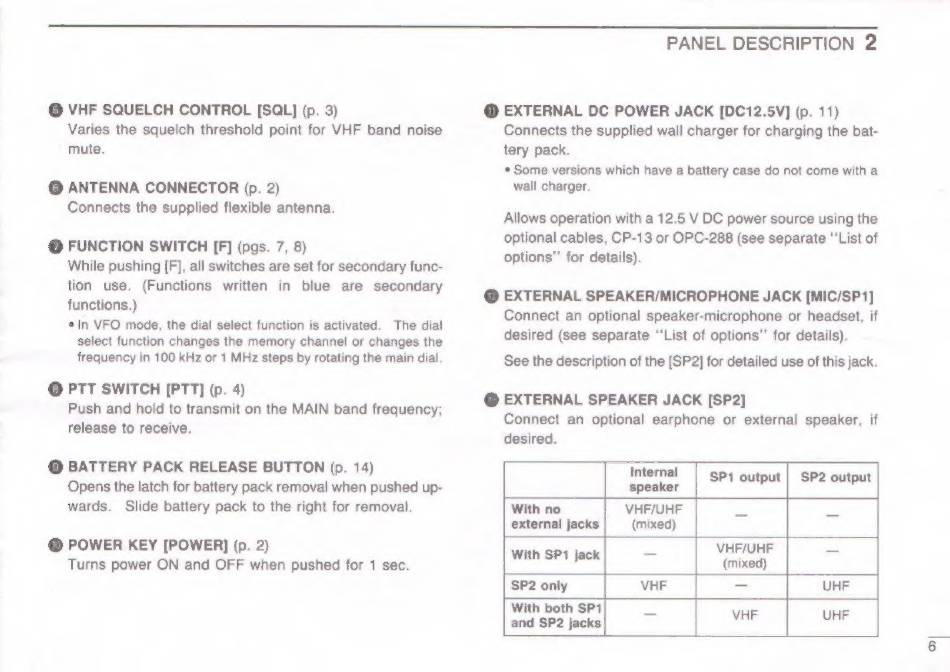

Icom IC-W2A Instruction Manual page 9

@ VHF SQUELCH CONTROL [SQL] (p. 3)
Varies the squelch threshold point for VHF band noise
mute.
@ ANTENNA CONNECTOR (p. 2)
Connects the supplied flexible antenna.
@ FUNCTION SWITCH [F] (pgs. 7, 8)
While pushing [F], all switches are set for secondary func-
tion use. (Functions written in blue are secondary
functions.)
*In VFO mode, the dial select function is activated. The dial
select function changes the memory channel or changes the
frequency in 100 kHz or 1 MHz steps by rotating the main dial.
© PTT SWITCH [PTT] (p. 4)
Push and hold to transmit on the MAIN band frequency;
release to receive.
@ BATTERY PACK RELEASE BUTTON (p. 14)
Opens the latch for battery pack removal when pushed up-
wards. Slide battery pack to the right for removal.
@ POWER KEY [POWER] (p. 2)
Turns power ON and OFF when pushed for 1 sec.
PANEL DESCRIPTION 2
@ EXTERNAL DC POWER JACK [DC12.5V] (p. 11)
Connects the supplied wall charger for charging the bat-
tery pack.
* Some versions which have a battery case do not come with a
wall charger.
Allows operation with a 12.5 V DC power source using the
optional cables, CP-13 or OPC-288 (see separate ''List of
options" for details).
@ EXTERNAL SPEAKER/MICROPHONE JACK [MIC/SP1]
Connect an optional speaker-microphone or headset, if
desired (see separate 'List of options' for details).
See the description of the [SP2] for detailed use of this jack.
@ EXTERNAL SPEAKER JACK [SP2]
Connect an optional earphone or external speaker, if
desired.
VHF/UHF
(mixed)
VHF/UHF
(mixed)
