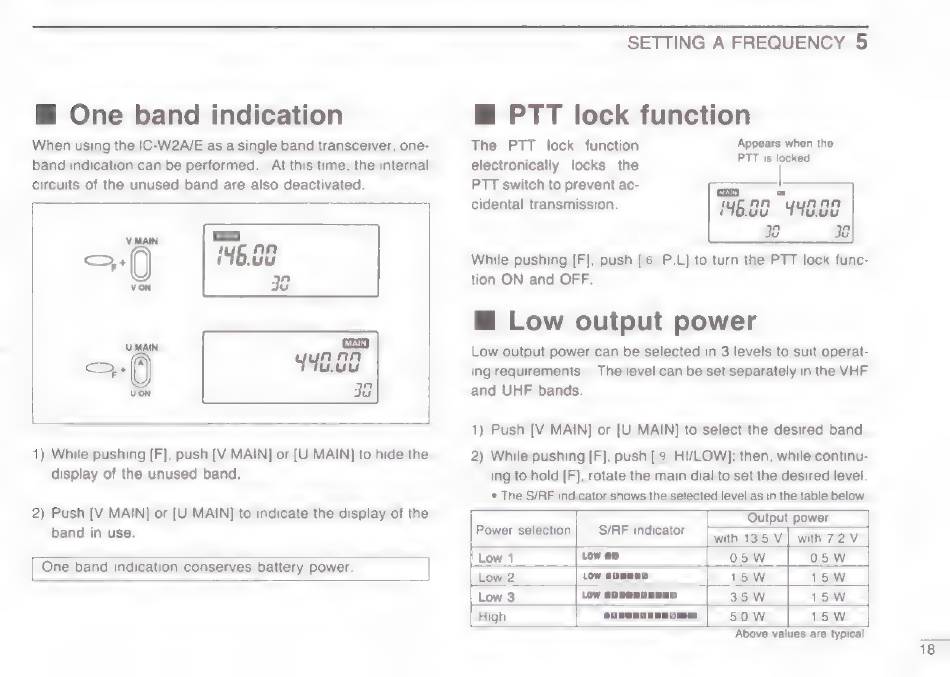

H One band indication
When using the IC-W2A/E as a single band transceiver, one-
band indication can be performed. At this time, the internal
circuits of the unused band are also deactivated.
oo
V MAIN
We An
0) (46.88
VON 3G
UMAIN
19)
UON
1) While pushing [F], push [V MAIN] or [U MAIN] to hide the
display of the unused band.
2) Push [V MAIN] or [U MAIN] to indicate the display of the
band in use.
| One band indication conserves battery power.
SETTING A FREQUENCY 5
@ PTT lock function
Appears when the
PTT is locked,
The PTT lock function
electronically locks the
PTT switch to prevent ac-
cidental transmission.
While pushing [F], push [@) P.L] to turn the PTT lock func-
tion ON and OFF.
@ Low output power
Low output power can be selected in 3 levels to suit operat-
ing requirements. The level can be set separately in the VHF
and UHF bands.
1) Push [V MAIN] or [U MAIN] to select the desired band.
2) While pushing [F], push [@) HI/LOW]; then, while continu-
ing to hold [F], rotate the main dial to set the desired level.
* The S/RF indicator shows the selected level as in the table below.
S/RF indicator
[tows [twee
Output power
[Low3 tow enmemcenen |
soneneensome
Above values are typical.
