2 PANEL DESCRIPTION

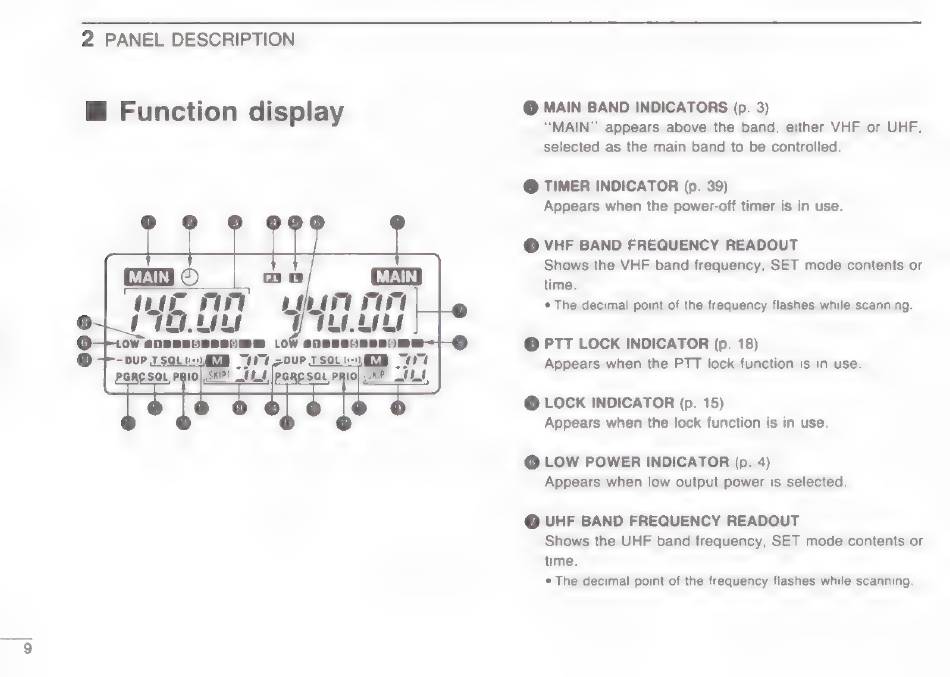

@ Function display
@ MAIN BAND INDICATORS (p. 3)
"MAIN" appears above the band, either VHF or UHF,
selected as the main band to be controlled.
@ TIMER INDICATOR (p. 39)
Appears when the power-off timer is in use.
© VHF BAND FREQUENCY READOUT
Shows the VHF band frequency, SET mode contents or
time.
* The decimal point of the frequency flashes while scanning.
@ PTT LOCK INDICATOR (p. 18)
Appears when the PTT lock function is in use.
@ LOCK INDICATOR (p. 15)
Appears when the lock function is in use.
@ LOW POWER INDICATOR (p. 4)
Appears when low output power is selected.
@ UHF BAND FREQUENCY READOUT
Shows the UHF band frequency, SET mode contents or
time.
* The decimal point of the frequency flashes while scanning.
