Icom IC-W2A Instruction Manual page 14

—K}
1
| © Using supplied wall charger
Connect the supplied wall charger to the
[DC12.5V] jack.
[0C12.5V]
Supplied wall
\C-W2A/E charger
Charging time: 15 hrs. (approx.)

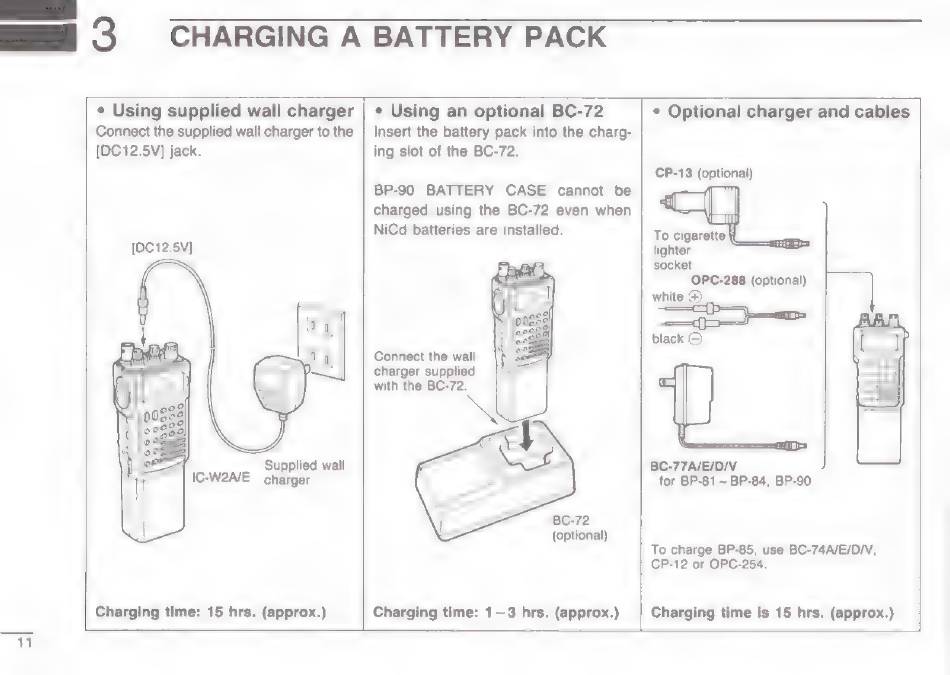

CHARGING A BATTERY PACK
¢ Using an optional BC-72
Insert the battery pack into the charg-
ing slot of the BC-72.
BP-90 BATTERY CASE cannot be
charged using the BC-72 even when
NiCd batteries are installed.
Connect the wall
charger supplied
with the BC-72.
BC-72
(optional)
Charging time: 1~3 hrs. (approx.)
© Optional charger and cables
CP-13 (optional)
To cigarette
lighter
socket
OPC-288 (optional)
white @
black ©
BC-77A/E/D/V
for BP-81 ~ BP-84, BP-90.
To charge BP-85, use BC-74A/E/D/V,
CP-12 or OPC-254.
Charging time is 15 hrs. (approx.)
