E E a a t t o o n n

S S P P D D S S e e r r i i e e s s

for Mounting External to Electrical Distribution Equipment

Installation Manual

p/n: IM01005031E

Revision 09

Need help?

Do you have a question about the SPD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton SPD Series

Page 1 ® ® E E a a t t o o n n S S P P D D S S e e r r i i e e s s for Mounting External to Electrical Distribution Equipment Installation Manual p/n: IM01005031E Revision 09...
Page 2 W W a a r r r r a a n n t t y y Eaton reserves the right to change specifications without prior notice. Eaton Power Xpert is a trademark of Eaton or its subsidiaries and affiliates. All other trademarks are property of their respective companies. All other trademarks are property of their respective companies.
Page 3 5.3.4 Modbus and BACnet Access......................... 38 5.3.5 Sensitivity Setting ..........................38 5.3.6 How to Reset the PX-SPD Password ...................... 38 5.3.7 End of Life Disposal ..........................39 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 4 13.5 Power Xpert SPD Local Display Test Sequence ..................... 53 13.6 Power Xpert SPD Modbus Register Map ..................... 54 13.7 Web User Error Codes ..........................60 13.8 BACnet Register Map ..........................61 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...

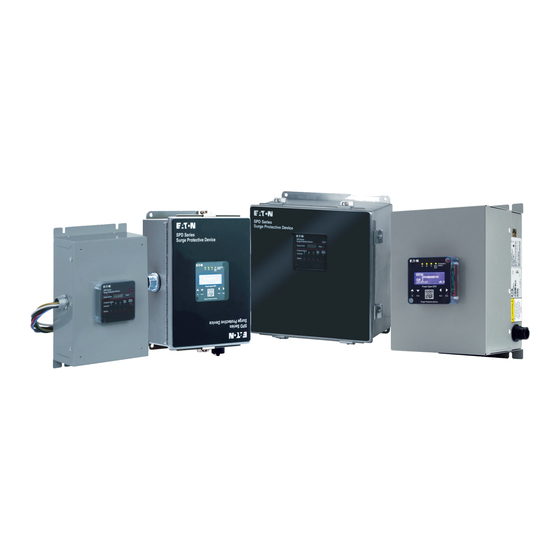

Page 5 The Eaton SPD Series is designed to mount on the wall (or other vertical surface) as close as possible to the electrical cabinet. The SPD Series is available in voltage ratings from 120-600V AC, surge current capacity ratings from 50kA to 400kA, and NEMA 1, NEMA 4 or NEMA 4X enclosures.
Page 6 C C a a t t a a l l o o g g N N u u m m b b e e r r i i n n g g S S y y s s t t e e m m Each Eaton SPD Series unit has a name plate that identifies the parameters used for manufacture. These...
Page 7 Conducting dielectric, Meggar, or Hi-potential testing with the SPD installed will cause internal damage to the SPD. The SPD will cause the test to fail. Every Eaton SPD Series unit is tested at the factory for dielectric breakdown. No further SPD testing is required for installation.
Page 8 The ideal mounting location for the Eaton SPD Series is as close as possible to the electrical enclosure. The Eaton SPD Series should be mounted in such a way as to minimize any sharp bends in the wiring conduit. 2 2 . . 3 3...
Page 9 Figure Figure 14. SPD Series type 1 and type 2 units do not require over current protection devices, fuses or circuit breakers to operate correctly. All local and national electric codes must be followed during installation and these codes may require protection of the conductors leading to the SPD unit.
Page 10 F F i i g g u u r r e e 4 4 . . N N E E M M A A 1 1 ( ( s s u u f f f f i i x x K K ) ) Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 11 F F i i g g u u r r e e 6 6 . . N N E E M M A A 1 1 ( ( w w i i t t h h d d i i s s c c o o n n n n e e c c t t ) ) ( ( s s u u f f f f i i x x M M ) ) Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 12 F F i i g g u u r r e e 7 7 . . N N E E M M A A 4 4 - - 4 4 X X ( ( w w i i t t h h d d i i s s c c o o n n n n e e c c t t ) ) ( ( s s u u f f f f i i x x O O , , Q Q ) ) ( ( N N E E M M A A 4 4 X X n n o o t t a a v v a a i i l l a a b b l l e e w w i i t t h h P P o o w w e e r r X X p p e e r r t t S S P P D D ) ) Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 13 S S P P D D G G R R E E Y Y F F L L U U S S H H M M T T K K I I T T . . Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 14 F F i i g g u u r r e e 1 1 0 0 . . S S p p l l i i t t P P h h a a s s e e U U n n i i t t s s Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 15 F F i i g g u u r r e e 1 1 2 2 . . 3 3 - - P P h h a a s s e e W W y y e e U U n n i i t t s s Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 16 F F i i g g u u r r e e 1 1 4 4 . . W W i i r r i i n n g g - - S S i i n n g g l l e e p p h h a a s s e e U U n n i i t t s s ( ( 2 2 3 3 0 0 L L ) ) Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 17 D D i i s s p p l l a a y y s s a a n n d d I I n n d d i i c c a a t t o o r r s s All Eaton SPD Series units (Basic, Standard, Standard with Surge Counter, and Power Xpert SPD) use a display panel to indicate system status.
Page 18 3 3 . . 2 2 . . 3 3 S S t t a a n n d d a a r r d d W W i i t t h h S S u u r r g g e e C C o o u u n n t t e e r r F F e e a a t t u u r r e e P P a a c c k k a a g g e e The Eaton SPD Series Standard with Surge Counter feature package display is shown in Figure F F i i g g u u r r e e 1 1 7 7 .
Page 19 Green LEDs also indicate neutral to ground protection on units with a neutral wire. Green LEDs do not indicate on/off status of power. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 20 Red LEDs: Illumination indicates a total loss of protection( 0%), and that one or more protective devices are now inactive and unavailable for that phase. Red LEDs do not indicate on/off status of power. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 21 C C h h a a p p t t e e r r 4 4 P P o o w w e e r r X X p p e e r r t t S S P P D D D D i i s s p p l l a a y y M M e e n n u u The Eaton Power Xpert SPD feature package includes a 20x4 LCD module which on power up displays the device’s home screen which includes the following: catalog number, device name (which is editable by the...
Page 22 Firmware version • PCB serial number • Device name • MAC address • Customer support information This information is necessary when contacting customer support concerning the device. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 23 G G e e n n e e r r a a l l The Eaton Power Xpert SPD can be set up using just the local display or with a laptop, CAT5e cable and a web browser. Modbus, BACnet, and HTTP are initially disabled to provide cybersecurity protection. Modbus can be enabled through the LCD module or the web UI.
Page 24 F F i i g g u u r r e e 2 2 5 5 . . S S e e l l e e c c t t D D a a t t e e a a n n d d T T i i m m e e Press the Enter button to edit the date and time or the back button to exit and return to the previous screen. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 25 5 5 . . 2 2 . . 2 2 C C o o n n f f i i g g u u r r a a t t i i o o n n o o f f t t h h e e U U s s e e r r ' ' s s L L a a p p t t o o p p t t o o C C o o m m m m u u n n i i c c a a t t e e t t o o P P X X - - S S P P D D Follow these steps to enter the IP and Subnet Address on the user's laptop or PC. In Windows applications, navigate to Network and Sharing Center. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 26 Left click on Ethernet and then right click to open the window shown below. Then click on Properties. Click on Internet Protocol Version 4 (TCP/IPv4). Click on Properties. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 27 P P o o w w e e r r X X p p e e r r t t S S P P D D N N e e t t w w o o r r k k C C o o n n n n e e c c t t i i o o n n Set up the SPD network connection as follows: Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 28 Open Google Chrome, or Internet Explorer 11.x or higher and enter the fixed IP address 192.168.1.254 and then hit the Enter key. A connection warning window will open. Click on Advanced. Click on “Proceed to…” near the bottom of the window. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 29 OK. Save the password in a secure location to access the Web UI. If lost, contact Eaton’s Application Engineers, at 1-800- 809-2772, or email SPD@eaton.com. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 30 F F a a c c t t o o r r y y R R e e s s e e t t R R e e b b o o o o t t Admin All privileges Engineer Product configuration Operator Read only Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 31 After initial login, the user will notice that the address bar on the web browser shows that the connection is Not secure, see example below. To obtain a secure connection, click on the network tab, then click on download certificate. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 32 F F i i g g u u r r e e 3 3 1 1 . . I I n n s s t t a a l l l l C C e e r r t t i i f f i i c c a a t t e e Then the Certificate Import Wizard will open. Select current user and then click next. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 33 F F i i g g u u r r e e 3 3 3 3 . . C C e e r r t t i i f f i i c c a a t t e e S S t t o o r r a a g g e e L L o o c c a a t t i i o o n n Then select finish in the window. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 34 F F i i g g u u r r e e 3 3 5 5 . . S S e e c c u u r r i i t t y y W W a a r r n n i i n n g g W W i i n n d d o o w w If the import is successful you will receive a pop up window notification as shown below. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 35 5 5 . . 3 3 . . 2 2 U U p p g g r r a a d d i i n n g g F F i i r r m m w w a a r r e e To update the firmware in the Power Xpert SPD, go to the Eaton website at www.eaton.com/PXSPD and download the latest version firmware to a laptop or PC.
Page 36 Login to the device and click on the General tab and verify the SNTP server 1 has a green circle around it, as shown below. This verifies the device has synced with the network and will provide accurate time stamped events Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 37 F F i i g g u u r r e e 4 4 4 4 . . S S e e l l e e c c t t l l i i s s t t o o f f l l o o g g s s A dropdown will open displaying the options available to the user. Select the log of interest. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 38 Select the appropriate time zone from the dropdown list to the right of Time zone. GMT-05:00 represents Eastern Standard Time, GMT-06:00 represents Central Time, etc. Date format, with four different date formats to choose from, and the time format. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 39 F F i i g g u u r r e e 5 5 0 0 . . R R e e b b o o o o t t D D e e v v i i c c e e A A l l e e r r t t The Admin user can modify timeouts, number of concurrent sessions and the number of failed login attempts. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 40 Taken from NV (stored IP address) N N O O T T E E The user must reboot the device after performing any of these changes. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 41 Click OK to verify that you want to continue with this operation. The LEDs on the display will turn off, then back on again to indicate that this command has been implemented. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 42 IMPORTANT Eaton does not recommend the customer modify the sensitivity setting without first contacting Eaton Customer Support at 1 800 809-2772 or email SPD@eaton.com. Increasing the sensitivity setting will reduce the number of low level surge counts. 5 5 . . 3 3 . . 6 6 H H o o w w t t o o R R e e s s e e t t t t h h e e P P X X - - S S P P D D P P a a s s s s w w o o r r d d To reset the Power Xpert SPD password through the local display, the user must first access the concealed menu.
Page 43 Phase A low, medium or high surge Phase B low, medium or high surge Phase C low, medium or high surge Device restart Firmware update time stamp User login & logout Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 44 Place the display back onto the SPD enclosure. Be careful not to overstress or crimp the ribbon cable. Replace the two Phillips head screws. Tighten screws to 1.35 Nm (12 in-lbs). Restore power to the unit. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 45 Modes of protection as marked on a wye SPD = L - L, L - N, L - G(PE), N - G(PE). Modes of protection as marked on a delta SPD = L - L, L - G(PE). Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 46 Ribbon cable is mis-aligned with are properly aligned and fully connector. seated together. All phase LEDs are green, audible alarm is on. Insufficient voltage to the power supply. Replace SPD. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 47 One or more of the buttons were Clear buttons of any obstructions, if depressing during startup. that doesn’t resolve the matter contact Eaton Customer Support at 1-800-809-2772 or email SPD@eaton.com. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 48 Any LCD communication setting ‘save’ initiates All communication settings Must re-enter settings menu each modifications require reboot to enable. time a communication setting is a soft reset. changed. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 49 150 L-N, 300 L-G, 150 N-G, 300 L-L, 320 H-N, 470 H-G, 470 H-L 400 and 480Y voltage codes 600Y 320 L-N, 640 L-G, 320 N-G, 640 L-L Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 50 10 years, 15 years if you register on www.eaton.com/spd and then click the warranty registration icon.. ROHS compliant Wire length and AWG Factory prewired with 48 inches of #10 AWG wire. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 51 IEC 61643-11 / EN 61643-11, part 11: Test Class II, and are intended to be installed in applications with a degree of protection rated IP 20. Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 52 W W a a r r r r a a n n t t y y Eaton warrants these products for a period of 10 years from the date of delivery to the purchaser, 15 years if you register on www. eaton.com/spd and click the warranty registration icon to be free from defects in both workmanship and materials.
Page 53 Warranty In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or loss of use of equipment, plant or power system, cost of capital, loss of power, additional expenses in the use of existing power facilities, or claims against the purchaser or user by its customers resulting from the use of the information, recommendations and descriptions contained herein.
Page 54 (Up to last 20 date stamp events) ▼ ▲ ► >>> HIGH Level Surges HIGH LEVEL SURGES <<< ◄ (Up to last 20 date stamp events) Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 55 ► >>> 1.1.168.192 ► >>> (Editable xxx.xxx.xxx) ► >>> STORED GATEWAY <<< ◄ <<< ◄ EDIT< SAVE< <<< ► >>> MAC Address: MAC ADDRESS MM:MM:MM:SS:SS:SS <<< ◄ Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 56 ▼ ▲ PCB Serial number: xxxxxx ▼ ▲ Device Name: (From SETTINGS) Customer Assigned Name ▼ ▲ MAC Address 002085xxxxxx ▼ ▲ Customer Support: Eaton.com/PXSPD 1-800-809-2772 SPD@Eaton.com Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 57 3. All LEDs turn green 8. All pixels turn on 4. Alarm will sound momentarily. 9. LEDs turn red again. 5. Alarm turns off 10. Test completed Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 58 The IP address used in the NV address select configuration. Address Array size: 4 Array of 2 registers Default: 0xFE, 0x01, 0xA8, 0xC0 IPV4_BIG_ENDIAN_U8() Units: IP Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 59 Number of low surge occurred in phase A Count Default: 0 Range: 0 to 99999 Phase B High Surge UINT32 RO Number of high surge occurred in phase B Count Default: 0 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 60 Phase B medium surge event log Phase C medium surge event log 8957 Medium Surge Event UINT16 RO Index points to the latest medium surge event log Log Index Default: 0 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 61 UINT32 RO Indicates the total surge counts, This will be sum of low, medium and high surges of All Phases Default: 0 Range: 0 to 999999 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 62 Percentage of protection available on NG protection on N-G Default: 0 11511 Percentage of UINT16 RO Percentage of protection available on phase A protection on Phase A Default: 0 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 63 Default: 0 Range: 0 to 999999 UINT32 RO Sum of phase B high, medium and low surge counts 12271 Phase B Total Surge Counts Default: 0 Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 64 Displayed when any one image is corrupt during Re-install firmware Codepack integrity check has aborted firmware update multiple firmware update Final integrity check is invalid Multiple reasons Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 65 Total low surge counts No unit Total Medium Surge Counts Total medium surge No unit counts Total high surge counts No unit Total High Surge Counts Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 66 Alarm status Protected Protection loss Silences Alarm Silences the alarm Silence? Silenced Clear General Log Clear general log AV = Analog Value BV = Binary Value Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 67 Style Name BACnet Max Master BACnet Max Info Frames BACnet Profile Name User Application Name or Device Tag Product Name - Short description of Prod Code Eaton SPD Series for Mounting External to Electrical Distribution Equipment Installation Manual IM01005031E—Rev 09...
Page 68 IM01005031E09 IM01005031E 09...
